LH-1

EG-2121CB晶振,愛普生差分振蕩器,6G路由器晶振,X1M0002110002，尺寸為5.00x3.20x1.40mm,頻率212.5MHZ,輸出邏輯LV-PECL，差分輸出信號LV-PECL，進口LV-PECL差分振蕩器，EPSON差分晶振，低電壓差分振蕩器，低抖動差分晶振，低耗能差分晶振，低相位差分振蕩器，低相噪差分晶振，路由器專用差分晶振，儀器設備差分晶振，6G光模塊差分晶振，以太網差分晶振，網絡設備專用差分晶振，輕薄型差分晶振，OSC差分晶振，有源差分晶振，貼片型差分振蕩器.

有源晶體振蕩器產品比較適合用于6G光模塊，以太網，網絡設備，儀器儀表，測試測量，小型設備，物聯網，醫療產品，航空電子等領域。EG-2121CB晶振,愛普生差分振蕩器,6G路由器晶振,X1M0002110002.

LH-2

EG-2121CB晶振,愛普生差分振蕩器,6G路由器晶振,X1M0002110002參數表

Item	Symbol	LV-PECL	LVDS	Conditions / Remarks
Item	Symbol	EG-2121CB P	EG-2121CB L	Conditions / Remarks
Output frequency range	f0	212.5MHz		Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	2.5V ±0.125V
Storage temperature	T_stg	-55°C to +125°C		Store as bare product.
Operating temperature	T_use	P : 0°C to +70°C R : -5°C to +85°C S : -20°C to +70°C
Frequency tolerance	f_tol	G : ± 50 × 10-6 H : ±100 × 10-6
Current consumption	ICC	60mA Max.	-	OE = VCC, L_ECL = 50Ω
Current consumption	ICC	-	30mA Max.	OE = VCC, L_LVDS = 100Ω
Disable current	I_dis	2mA Max.	15mA Max.	OE = GND
Symmetry	SYM	45% to 55%		At outputs crossing point
Output voltage (LV-PECL)	VOH	1.55V Typ.	-	DC characteristics
	VOH	VCC- 1.025V to VCC- 0.88V	-
	VOL	0.80V Typ.	-
	VOL	VCC- 1.81V to VCC- 1.62V	-
Output voltage (LVDS)	VOD	-	350mV Typ, 247mV to 454mV	VOD1, VOD2	DC characteristics
	dVOD	-	50mV Max.	dVOD= \| VOD1- VOD2\|
	VOS	-	1.25V Typ, 1.125V to 1.375V	VOS1, VOS2
	dVOS	-	150mV Max.	dVOS= \| VOS1- VOS2\|
Output load condition (ECL) / (LVDS)	L_ECL	50Ω	-	Terminated to VCC- 2.0V
Output load condition (ECL) / (LVDS)	L_LVDS	-	100Ω	Connected between OUT toOUT
Input voltage	VIH	70% VCCMin.		OE terminal
Input voltage	VIL	30% VCCMax.		OE terminal
Rise time / Fall time	tr / tf	400ps Max.		Between 20% and 80% of ( VOH- VOL) Between 20% and 80% of Differential Output peek to peek voltage.
Start-up time	t_str	10ms Max.		Time at minimum supply voltage to be 0s
Phase Jitter	tPJ	0.23ps Max.	0.27ps Max.	100MHz ≦ f0< 150MHz	Offset frequency: 12kHz to 20MHz
		0.22ps Max.	0.24ps Max.	150MHz ≦ f0< 200MHz
		0.21ps Max.	0.23ps Max.	200MHz ≦ f0< 300MHz
		0.18ps Max.	0.19ps Max.	300MHz ≦ f0< 400MHz
		0.16ps Max.	0.16ps Max.	400MHz ≦ f0< 500MHz
		0.14ps Max.	0.14ps Max.	500MHz ≦ f0< 600MHz
		0.10ps Max.	0.10ps Max.	600MHz ≦ f0< 700MHz
Frequency aging	f_aging	± 10 × 10-6/ year Max.		+25°C , First year , VCC= 2.5V

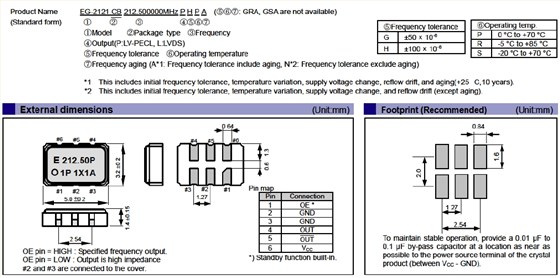

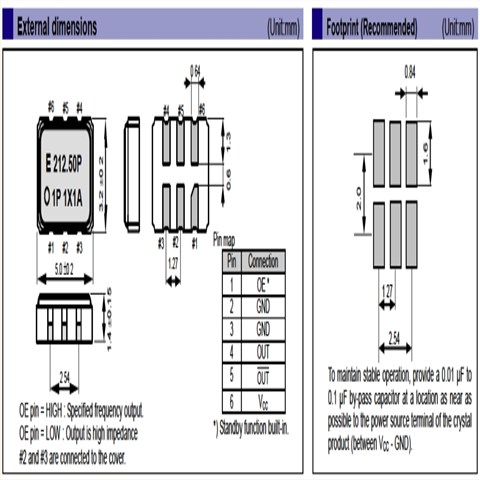

EG-2121CB晶振,愛普生差分振蕩器,6G路由器晶振,X1M0002110002 尺寸圖

有源晶振產品特性：

頻率范圍 100MHz ~ 700MHz

電源電壓 2.5 vTyp。

輸出 LV-PECL或LVDS

函數輸出啟用(OE)

外形尺寸 5.0×3.2×1.4mm

低抖動和低相位噪聲的SAW單元。

更多相關日本愛普生晶振型號

編碼	進口晶振品牌	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1G0050310003	愛普生晶振	SG-8506CA	622.080000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050311001	愛普生晶振	SG-8506CA	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1M0001410001	愛普生晶振	EG-4101CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410002	愛普生晶振	EG-4101CA	281.333300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410003	愛普生晶振	EG-4101CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410004	愛普生晶振	EG-4101CA	698.812300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410007	愛普生晶振	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410008	愛普生晶振	EG-4101CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410010	愛普生晶振	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410013	愛普生晶振	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410014	愛普生晶振	EG-4101CA	644.531200 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410017	愛普生晶振	EG-4101CA	156.253906 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0002010001	愛普生晶振	EG-2102CB	133.330000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010002	愛普生晶振	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010003	愛普生晶振	EG-2102CB	133.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010004	愛普生晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010005	愛普生晶振	EG-2102CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0002010006	愛普生晶振	EG-2102CB	644.531300 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010007	愛普生晶振	EG-2102CB	625.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002010008	愛普生晶振	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002010009	愛普生晶振	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010010	愛普生晶振	EG-2102CB	106.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002110001	愛普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0002110002	愛普生晶振	EG-2121CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0002110003	愛普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0002110004	愛普生晶振	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0003010002	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010003	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010004	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010006	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010007	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010008	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010009	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010010	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010011	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010012	愛普生晶振	XG-2102CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010013	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010014	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010015	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010016	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010017	愛普生晶振	XG-2102CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010019	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010020	愛普生晶振	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010021	愛普生晶振	XG-2102CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010022	愛普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010023	愛普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010025	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010026	愛普生晶振	XG-2102CA	245.760000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010027	愛普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010029	愛普生晶振	XG-2102CA	156.257812 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010030	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010031	愛普生晶振	XG-2102CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010032	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010033	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010035	愛普生晶振	XG-2102CA	199.860000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010036	愛普生晶振	XG-2102CA	200.140000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010037	愛普生晶振	XG-2102CA	216.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010039	愛普生晶振	XG-2102CA	263.157900 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010040	愛普生晶振	XG-2102CA	622.080000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010041	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010042	愛普生晶振	XG-2102CA	103.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010043	愛普生晶振	XG-2102CA	105.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
