6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振參數表
| Item | Ratings | Notes | |||||||||||||||||||||||||||||||
| min | max | Units | |||||||||||||||||||||||||||||||
| 1 | Supply Voltage | -0.3 | +4.0 | V | |||||||||||||||||||||||||||||
| 2 | Input Voltage | -0.3 | VCC+0.3 | V | |||||||||||||||||||||||||||||
| 3 | Storage Temperature Range | -55 | +125 | 。C | |||||||||||||||||||||||||||||

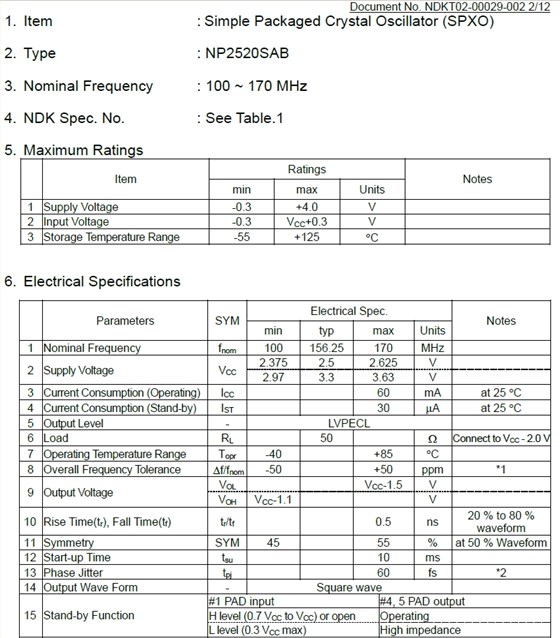

| Parameters | SYM | Electrical Spec. | Notes | ||||||||||||||||||||||||||||||
| min | typ | max | Units | ||||||||||||||||||||||||||||||
| 1 | Nominal Frequency | fnom |
|
156.25 |
|
MHz | |||||||||||||||||||||||||||
| 2 | Supply Voltage | VCC | 2.375 | 2.5 | 2.625 | V | |||||||||||||||||||||||||||
| 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||||||||||||||
| 3 | Current Consumption (Operating) | ICC | 60 | mA | at 25。C | ||||||||||||||||||||||||||||
| 4 | Current Consumption (Stand-by) | IST | 30 | μA | at 25。C | ||||||||||||||||||||||||||||
| 5 | Output Level | - | LVPECL | ||||||||||||||||||||||||||||||
| 6 | Load | RL | 50 | Ω | Connect to VCC- 2.0 V | ||||||||||||||||||||||||||||
| 7 | Operating Temperature Range | Topr | -40 | +85 | 。C | ||||||||||||||||||||||||||||
| 8 | Overall Frequency Tolerance | Δf/fnom | -50 | +50 | ppm | *1 | |||||||||||||||||||||||||||
| 9 | Output Voltage | VOL | VCC- 1.5 | V | |||||||||||||||||||||||||||||
| VOH | VCC- 1.1 | V | |||||||||||||||||||||||||||||||
| 10 | Rise Time(tr), Fall Time(tf) | tr/tf | 0.5 | ns |
20 % to 80 % waveform |
||||||||||||||||||||||||||||
| 11 | Symmetry | SYM | 45 | 55 | % | at 50 % Waveform | |||||||||||||||||||||||||||
| 12 | Start-up Time | tsu | 10 | ms | |||||||||||||||||||||||||||||
| 13 | Phase Jitter | tpj | 60 | fs | *2 | ||||||||||||||||||||||||||||
| 14 | Output Wave Form | - | Square wave | ||||||||||||||||||||||||||||||
| 15 | Stand-by Function | #1 PAD input | #4, 5 PAD output | ||||||||||||||||||||||||||||||
| H level (0.7 VCCto VCC) or open | Operating | ||||||||||||||||||||||||||||||||
| L level (0.3 VCCmax) | High impedance | ||||||||||||||||||||||||||||||||

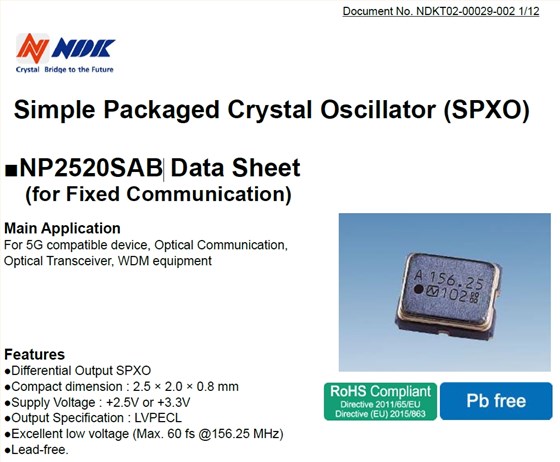

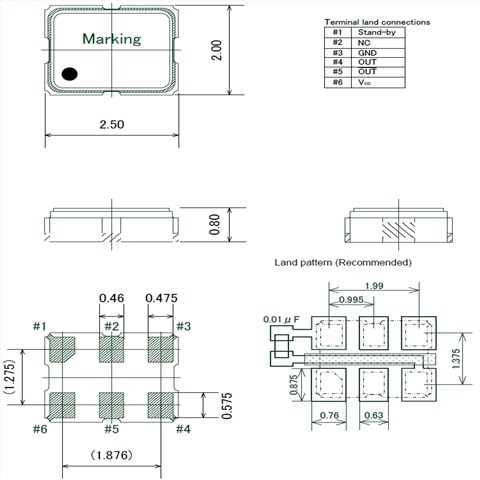

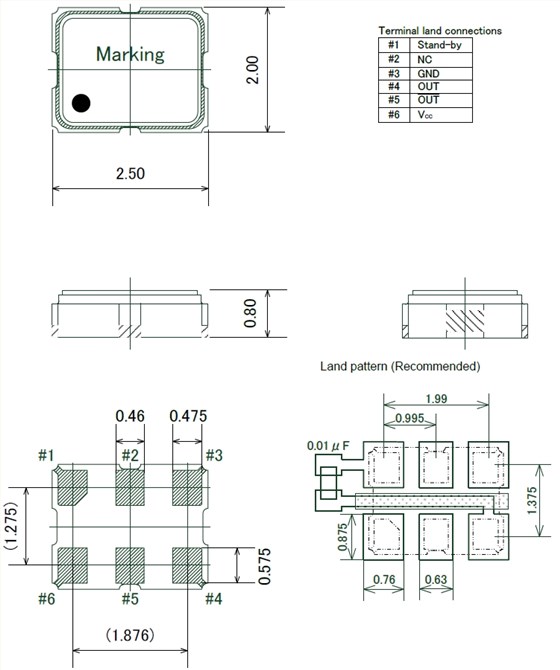

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振 尺寸圖
產品特性：
LVPECL差分輸出SPXO有源晶振
緊湊:2.5 x 2.0 x 0.8毫米
電源電壓:+2.5V或者+3.3V
低相位抖動:典型。156.25MHz時60fs
無鉛
更多相關日本NDK晶振型號
| Model | Nominal frequency[MHz] | Specification number | Manufacturer | Package size(LxW)[mm] | Output specification | Operating temperature rang[℃] | Storage temperature range[℃] | Supply voltage[V] |
| NP2520SB | 156.25MHZ | NSC5301A | NDK晶振 | 2.5x2.0 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP2520SB | 156.25MHZ | NSC5301B | NDK晶振 | 2.5x2.0 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP2520SAB | 156.25MHZ | NSC5326A | NDK晶振 | 2.5x2.0 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP2520SAB | 156.25MHZ | NSC5326B | NDK晶振 | 2.5x2.0 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP2520SBB | 156.25MHZ | NSC5327A | NDK晶振 | 2.5x2.0 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP2520SBB | 156.25MHZ | NSC5327B | NDK晶振 | 2.5x2.0 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 100MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 122.88MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 125MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 156.25MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 175MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 100MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 122.88MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 125MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 156.25MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 175MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 100MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 122.88MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 125MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 156.25MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 175MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 100MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 122.88MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 125MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 156.25MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 175MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 200MHZ | NSC5235A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 212.5MHZ | NSC5235A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 200MHZ | NSC5235B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 212.5MHZ | NSC5235B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 200MHZ | NSC5237A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 212.5MHZ | NSC5237A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 200MHZ | NSC5237B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 212.5MHZ | NSC5237B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SB | 50MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 100MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 125MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 135MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 148MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 156.25MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 200MHZ | NSC5236A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 50MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 100MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 125MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 135MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 148MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 156.25MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 200MHZ | NSC5236B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 50MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 100MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 125MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 135MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
