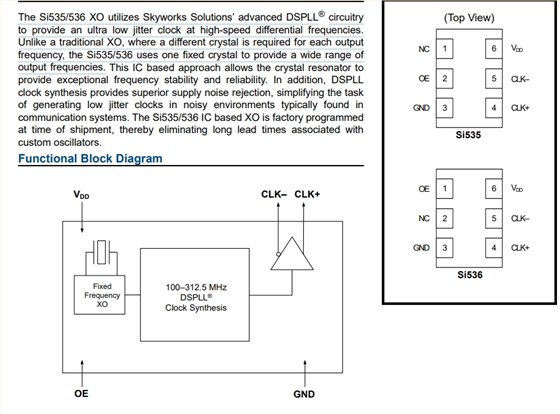

Silicon高質量振蕩器Si536/6G路由器晶振/536AB156M250DG，尺寸7.00mmx5.00mm，頻率為156.25MHz，輸出邏輯LVPECL，電壓為3.3V，XO時鐘振蕩器，石英晶體振蕩器，差分晶振，LVPECL輸出晶振，有源晶體振蕩器，低電壓差分振蕩器，低抖動差分晶振，低相位差分晶振，低功耗差分晶振，7050mm有源晶振，高質量差分晶振，Si535/536 XO采用了Skyworks Solutions先進的DSPLL電路以在高速差分頻率下提供超低抖動時鐘。 不像傳統的XO，每個輸出需要不同的晶體 頻率，Si535/536使用一個固定晶體來提供寬范圍的輸出頻率。
該有源晶體振蕩器很適合用于10/40/100G數據中心，10G以太網交換機/路由器 光纖通道/SAS/存儲，企業服務器，網絡 ，電信等領域。Silicon高質量振蕩器Si536/6G路由器晶振/536AB156M250DG.
Silicon高質量振蕩器Si536/6G路由器晶振/536AB156M250DG 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Supply Voltage1 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL LVDS |
— — |
111 90 |
121 98 |
mA | ||||||||||||||||
| Tristate mode | — | 60 | 75 | mA | ||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x VDD | — | — | V | |||||||||||||||||
| VIL | — | — | 0.5 | V | ||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | °C | |||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Nominal Frequency1 | fO | LVPECL/LVDS | 100 | — | 312.5 | MHz | ||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||
| Temperature Stability1,2 |
–7 –20 |
— — |
+7 +20 |
ppm | ||||||||||||||||||
| Aging | fa | Frequency drift over first year | ±3 | ppm | ||||||||||||||||||
|
Frequency drift over 20 year life |
— | — | ±10 | ppm | ||||||||||||||||||
| Total Stability2 | Temp stability = ±20 ppm | — | — | ±31.5 | ppm | |||||||||||||||||
| Temp stability = ±7 ppm | — | — | 20 | |||||||||||||||||||
| Powerup Time3 | tOSC | TA= –40°C — +85°C | 10 | ms | ||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Nominal Frequency1 | fO | LVPECL/LVDS | 100 | — | 312.5 | MHz | ||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||
| Temperature Stability1,2 |
–7 –20 |
— — |
+7 +20 |
ppm | ||||||||||||||||||
| Aging | fa | Frequency drift over first year | ±3 | ppm | ||||||||||||||||||
|
Frequency drift over 20 year life |
— | — | ±10 | ppm | ||||||||||||||||||
| Total Stability2 | Temp stability = ±20 ppm | — | — | ±31.5 | ppm | |||||||||||||||||
| Temp stability = ±7 ppm | — | — | 20 | |||||||||||||||||||
| Powerup Time3 | tOSC | TA= –40°C — +85°C | 10 | ms | ||||||||||||||||||
| Parameter | Symbol | Rating | Unit | |||||||||||||||||||
| Maximum Operating Temperature | TAMAX | 85 | °C | |||||||||||||||||||
| Supply Voltage, 2.5/3.3 V Option | VDD | –0.5 to +3.8 | V | |||||||||||||||||||
| Input Voltage (any inputpin) | VI | –0.5 to VDD+ 0.3 | V | |||||||||||||||||||
| Storage Temperature | TS | –55 to +125 | °C | |||||||||||||||||||
| ESD Sensitivity (HBM, per JESD22-A114) | ESD | 2500 | V | |||||||||||||||||||
| Soldering Temperature (Pb-free profile)2 | TPEAK | 260 | °C | |||||||||||||||||||
| Soldering Temperature Time @ TPEAK(Pb-free profile)2 | tP | 20–40 | seconds | |||||||||||||||||||

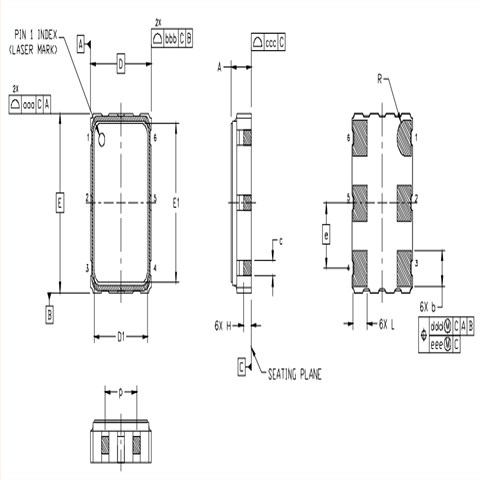

Silicon高質量振蕩器Si536/6G路由器晶振/536AB156M250DG尺寸圖

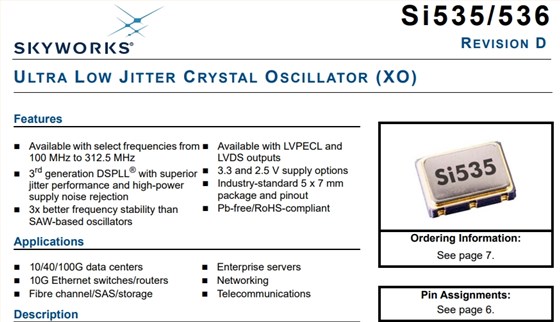

差分晶振產品特性：
可選擇頻率從100兆赫到312.5兆赫
3代DSPLL®優越的抖動性能和高功率供應噪聲抑制
更好的頻率穩定性比鋸振蕩器
可用LVPECL和LVDS輸出
3.3和2.5 V供應選項
工業標準5 x 7毫米包和針
無鉛/RoHS兼容
