AXTAL時鐘振蕩器,AXE5032P-50-25-0C-133.000MHz,5032mm,AXE5032P系列,HCMOS特點:

5x3.2毫米封裝的可編程時鐘晶體振蕩器

支持輸出HCMOS

低電壓功耗

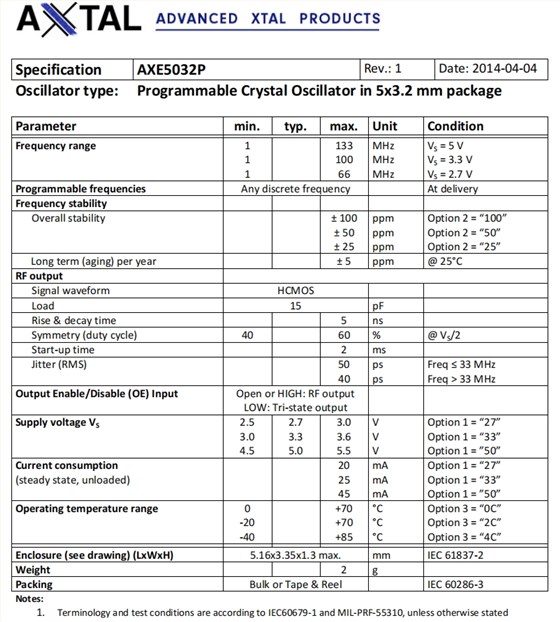

AXTAL時鐘振蕩器,AXE5032P-50-25-0C-133.000MHz,5032mm,AXE5032P系列,HCMOS 參數表

Parameter

min.

typ.

max.

Unit

Condition

Frequency range

1 1 1

133 100 66

MHz MHz MHz

VS= 5 V VS= 3.3 V VS= 2.7 V

Programmable frequencies

Any discrete frequency

At delivery

Frequency stability

Overall stability

± 100 ± 50 ± 25

ppm ppm ppm

Option 2 = “100” Option 2 = “50” Option 2 = “25”

Long term (aging) per year

± 5

ppm

@ 25°C

RF output

Signal waveform

HCMOS

Load

15

pF

Rise & decay time

5

ns

Symmetry (duty cycle)

40

60

%

@ VS/2

Start-up time

2

ms

Jitter (RMS)

50 40

ps ps

Freq ≤ 33 MHz Freq > 33 MHz

Output Enable/Disable (OE) Input

Open or HIGH: RF output LOW: Tri-state output

Supply voltage VS

2.5 3.0 4.5

2.7 3.3 5.0

3.0 3.6 5.5

V V V

Option 1 = “27” Option 1 = “33” Option 1 = ”50”

Current consumption (steady state, unloaded)

20 25 45

mA mA mA

Option 1 = “27” Option 1 = “33” Option 1 = ”50”

Operating temperature range

0 -20 -40

+70 +70 +85

°C °C °C

Option 3 = “0C” Option 3 = “2C” Option 3 = “4C”

Enclosure (see drawing) (LxWxH)

5.16x3.35x1.3 max.

mm

IEC 61837-2

Weight

2

g

Packing

Bulk or Tape & Reel

IEC 60286-3

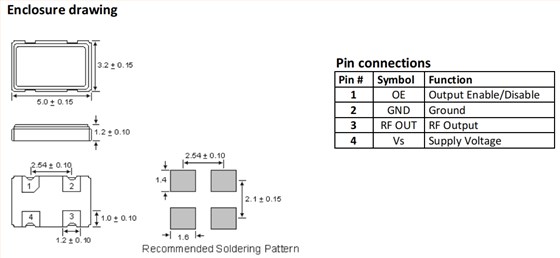

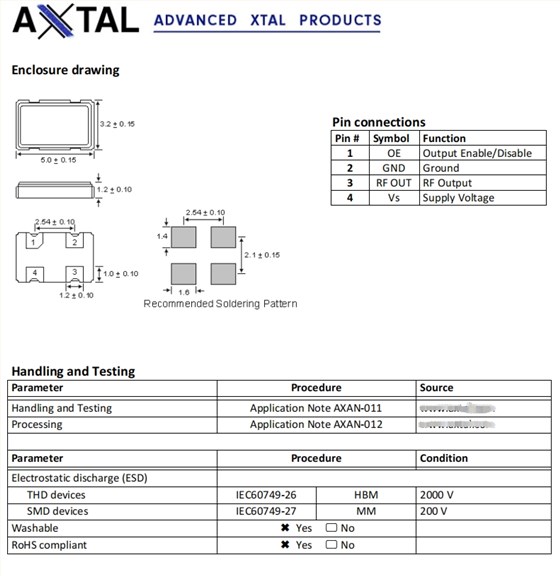

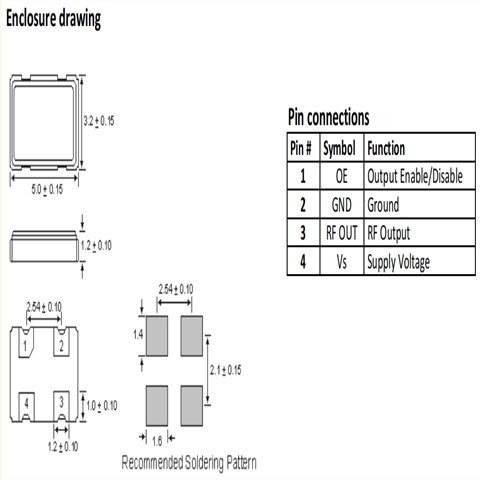

AXTAL時鐘振蕩器,AXE5032P-50-25-0C-133.000MHz,5032mm,AXE5032P系列,HCMOS 尺寸圖
