OC2時鐘振蕩器,威爾威以太網晶振,OC2-T-27000X-O-C-D-1-R-X，尺寸2.5x2.0mm，頻率27MHZ，美國Wi2wi晶振，威爾威有源晶振，有源貼片晶振，石英有源振蕩器，石英晶體振蕩器，有源晶體振蕩器，2520mm有源晶振，時鐘振蕩器，SMD振蕩器，四腳有源晶振，以太網專用有源晶振，航空航天有源晶振，測試測量有源晶振，儀器設備有源晶振，多媒體設備有源晶振，智能家電有源晶振，通信模塊有源晶振，低電壓有源晶振，低抖動有源晶振，低功耗有源晶振，低耗能有源晶振，低相位有源晶振，低相噪有源晶振，具有低抖動低相位相噪的特點。
有源石英晶振產品超級適合用于以太網專用，航空航天，測試測量，儀器設備，多媒體設備，智能家電，通信模塊等應用。OC2時鐘振蕩器,威爾威以太網晶振,OC2-T-27000X-O-C-D-1-R-X.

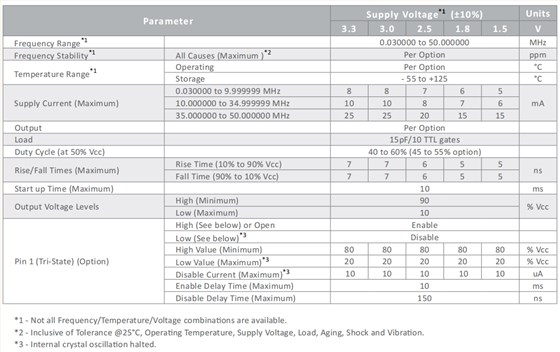

OC2時鐘振蕩器,威爾威以太網晶振,OC2-T-27000X-O-C-D-1-R-X參數表
|
Parameter |
Supply Voltage*1( ±10%) |
Units V |
|||||||||||||||||||||||||||||||||||||||
| Frequency Range*1 | 27.000000 | MHz | |||||||||||||||||||||||||||||||||||||||
| Frequency Stability*1 | All Causes (Maximum )*2 | Per Option | ppm | ||||||||||||||||||||||||||||||||||||||
| Temperature Range*1 |
Operating Storage |
Per Option - 55 to +125 |
°C °C |
||||||||||||||||||||||||||||||||||||||
| Supply Current (Maximum) |
0.030000 to 9.999999 MHz 10.000000 to 34.999999 MHz 35.000000 to 50.000000 MHz |
mA | |||||||||||||||||||||||||||||||||||||||
| Output | Per Option | ||||||||||||||||||||||||||||||||||||||||
| Load | 15pF/10 TTL gates | ||||||||||||||||||||||||||||||||||||||||
| Duty Cycle (at 50% Vcc) |
|
40 to 60% (45 to 55% option) | |||||||||||||||||||||||||||||||||||||||
| Rise/Fall Times (Maximum) |
Rise Time (10% to 90% Vcc) Fall Time (90% to 10% Vcc) |
ns | |||||||||||||||||||||||||||||||||||||||
| Start up Time (Maximum) | 10 | ms | |||||||||||||||||||||||||||||||||||||||
| Output Voltage Levels |
High (Minimum) Low (Maximum) |
90 10 |
% Vcc | ||||||||||||||||||||||||||||||||||||||
| Pin 1 (Tri-State) (Option) |
Disable Delay Time (Maximum) |
Enable Disable 10 150 |
ns | ||||||||||||||||||||||||||||||||||||||

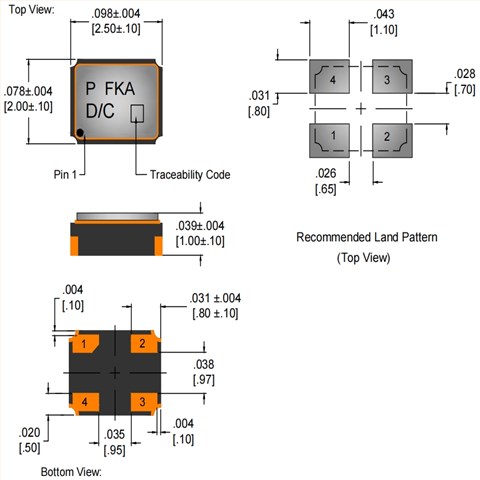

OC2時鐘振蕩器,威爾威以太網晶振,OC2-T-27000X-O-C-D-1-R-X 尺寸圖
OC2時鐘振蕩器,威爾威以太網晶振,OC2-T-27000X-O-C-D-1-R-X

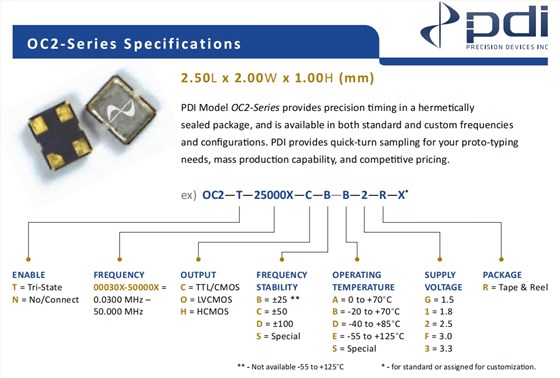

OSC晶振產品特點:
PDI OC2型系列在密封封裝，
可提供標準和自定義頻率以及配置。
PDI為您的原型類型提供快速采樣需求、
大規模生產能力和有競爭力的定價
