LH-1

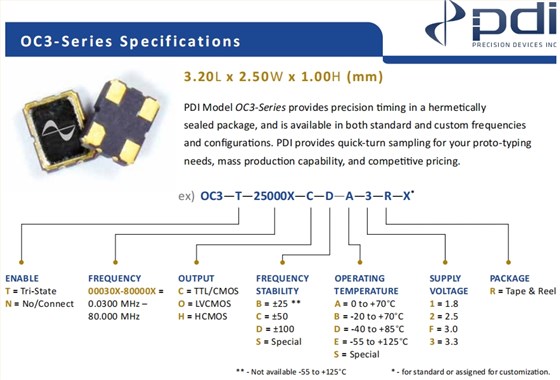

OC3-T-30000X-H-C-D-3-R-X,OC3路由器晶振,Wi2wi石英振蕩器，尺寸3.2x2.5mm，頻率30MHZ，輸出邏輯HCMOS，電壓3.3V，歐美有源振蕩器，威爾威有源晶振，石英振蕩子，有源貼片晶振，有源石英振蕩器，3225mm有源晶振，OSC貼片振蕩器，石英晶體振蕩器，路由器有源晶振，測試設備有源晶振，多媒體設備有源晶振，室外基站有源晶振，北斗模塊有源晶振，低抖動有源晶振，低功耗有源晶振，低電壓有源晶振，低耗能有源晶振，低相位有源晶振，低相噪有源晶振，具有低電壓低耗能的特點。

OSC晶振產品可滿足不同應用程序的需求，適用于路由器，測試設備，多媒體設備，室外基站，北斗模塊等應用。OC3-T-30000X-H-C-D-3-R-X,OC3路由器晶振,Wi2wi石英振蕩器. LH-2

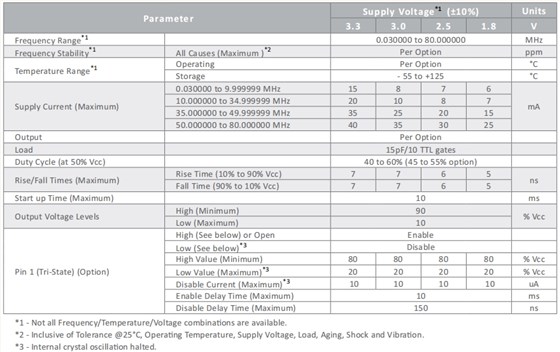

OC3-T-30000X-H-C-D-3-R-X,OC3路由器晶振,Wi2wi石英振蕩器參數表

Parameter		Supply Voltage*1( ±10%)				Units
		3.3	3.0	2.5	1.8	V
Frequency Range*1		30.000000				MHz
Frequency Stability*1	All Causes (Maximum )*2	Per Option				ppm
Temperature Range*1	Operating	Per Option				°C
	Storage	- 55 to +125				°C
Supply Current (Maximum)	0.030000 to 9.999999 MHz	15	8	7	6	mA
	10.000000 to 34.999999 MHz	20	10	8	7
	35.000000 to 49.999999 MHz	35	25	20	15
	50.000000 to 80.000000 MHz	40	35	30	25
Output		Per Option
Load		15pF/10 TTL gates
Duty Cycle (at 50% Vcc)		40 to 60% (45 to 55% option)
Rise/Fall Times (Maximum)	Rise Time (10% to 90% Vcc)	7	7	6	5	ns
	Fall Time (90% to 10% Vcc)	7	7	6	5
Start up Time (Maximum)		10				ms
Output Voltage Levels	High (Minimum)	90				% Vcc
	Low (Maximum)	10
Pin 1 (Tri-State) (Option)	High (See below) or Open	Enable
	Low (See below)*3	Disable
	High Value (Minimum)	80	80	80	80	% Vcc
	Low Value (Maximum)*3	20	20	20	20	% Vcc
	Disable Current (Maximum)*3	10	10	10	10	uA
	Enable Delay Time (Maximum)	10				ms
	Disable Delay Time (Maximum)	150				ns
