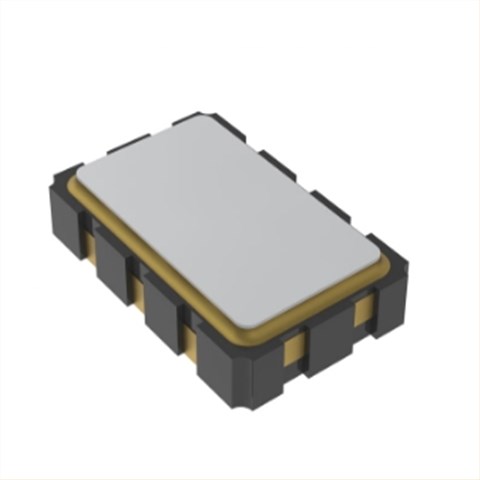

Skyworks有源晶振Si540,540AAA100M000BBG,6G交換機晶振，尺寸5.00x3.20mm，頻率100MHZ，輸出邏輯LVPECL，電壓2.5V，3.3V，腳位6-SMD，OSC貼片有源晶振，差分貼片晶振，XO時鐘振蕩器，LVPECL輸出晶振，差分晶振，貼片差分晶振，差分晶體振蕩器，進口LV-PECL差分振蕩器，低功耗差分晶振，低電壓差分振蕩器，低抖動差分晶振，低耗能差分晶振，測試測量差分晶振，服務器專用差分晶振，交換機差分晶振，儀器設備差分晶振，6G光模塊差分晶振，無線網絡差分振蕩器，網絡設備差分晶振，輕薄型差分晶振，OSC差分晶振，有源差分晶振，有源晶體振蕩器產品適用于100G/200G/400G OTN，相干光學10G/40G/100G光學以太網3G-SDI/12G-SDI/24G-SDI廣播視頻服務器、交換機、存儲、NIC、搜索加速測試和測量時鐘和數據恢復FPGA/ASIC時鐘等領域。
Si540 Ultra系列™ 振蕩器采用Skyworks Solutions先進的第四代一代DSPLL®技術，提供超低抖動、低相位噪聲時鐘在任何輸出頻率。該設備在工廠編程為任何頻率從0.2到1500MHz，分辨率＜1ppb，并保持異常低整數和分?jǐn)?shù)頻率在其工作范圍內的抖動。這個Si540OSC晶振提供卓越的可靠性和頻率穩定性，并保證老化性能。片上電源濾波提供業界領先的電源電源噪聲抑制，簡化了在噪聲中生成低抖動時鐘的任務使用開關模式電源的系統。按行業標準提供Si540具有顯著簡化的供應鏈，使Sky works能夠在收到訂單后1-2周內運送定制頻率的樣品。不像對于每個輸出頻率需要不同晶體的傳統XO，Si540使用一種簡單的晶體.Skyworks有源晶振Si540,540AAA100M000BBG,6G交換機晶振.
Skyworks有源晶振Si540,540AAA100M000BBG,6G交換機晶振參數表
| Parameter | Symbol | Test Condition/Comment | Min | Typ | Max | Unit | |||||||||||||||||||||||||||||||||||||
| Temperature Range | TA | –40 | 85 | ºC | |||||||||||||||||||||||||||||||||||||||
| Frequency Range | FCLK | LVPECL, LVDS, CML | 0.2 | — | 1500 | MHz | |||||||||||||||||||||||||||||||||||||
| HCSL | 0.2 | — | 400 | MHz | |||||||||||||||||||||||||||||||||||||||
| CMOS, Dual CMOS | 0.2 | 250 | MHz | ||||||||||||||||||||||||||||||||||||||||
| Supply Voltage | V DD | 3.3 V | 3.135 | 3.3 | 3.465 | V | |||||||||||||||||||||||||||||||||||||
| 2.5 V | 2.375 | 2.5 | 2.625 | V | |||||||||||||||||||||||||||||||||||||||
| 1.8 V | 1.71 | 1.8 | 1.89 | V | |||||||||||||||||||||||||||||||||||||||
| Supply Current | IDD | LVPECL (output enabled) | 100 | 145 | mA | ||||||||||||||||||||||||||||||||||||||
| LVDS/CML (output enabled) | — | 75 | 111 | mA | |||||||||||||||||||||||||||||||||||||||
| HCSL (output enabled) | 80 | 125 | mA | ||||||||||||||||||||||||||||||||||||||||
| HCSL-Fast (output enabled) | — | 88 | 137 | mA | |||||||||||||||||||||||||||||||||||||||
| CMOS (output enabled) | 74 | 108 | mA | ||||||||||||||||||||||||||||||||||||||||
| Dual CMOS (output enabled) | — | 80 | 125 | mA | |||||||||||||||||||||||||||||||||||||||
| Tristate Hi-Z (output disabled) | 64 | 100 | mA | ||||||||||||||||||||||||||||||||||||||||
| Temperature Stability | Frequency stability Grade A | –20 | — | 20 | ppm | ||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade B | –10 | 10 | ppm | ||||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade C | –7 | — | 7 | ppm | |||||||||||||||||||||||||||||||||||||||
| Total Stability1 | F STAB | Frequency stability Grade A | –50 | 50 | ppm | ||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade B | –25 | — | 25 | ppm | |||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade C | –20 | 20 | ppm | ||||||||||||||||||||||||||||||||||||||||
|
Rise/Fall Time (20% to 80% VPP) |
TR/TF | LVPECL/LVDS/CML | — | — | 350 | ps | |||||||||||||||||||||||||||||||||||||
|
CMOS / Dual CMOS (CL= 5 pF) |
— | 0.5 | 1.5 | ns | |||||||||||||||||||||||||||||||||||||||
| HCSL, FCLK>50 MHz | — | — | 550 | ps | |||||||||||||||||||||||||||||||||||||||
| HCSL-Fast, FCLK>50 MHz | — | — | 275 | ps | |||||||||||||||||||||||||||||||||||||||
| Duty Cycle | DC | All formats | 45 | — | 55 | % | |||||||||||||||||||||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.7 × VDD | V | ||||||||||||||||||||||||||||||||||||||||
| VIL | — | — | 0.3 × VDD | V | |||||||||||||||||||||||||||||||||||||||
| TD |
Output Disable Time, FCLK>10 MHz |
— | — | 3 | µs | ||||||||||||||||||||||||||||||||||||||
| TE |
Output Enable Time, FCLK>10 MHz |
20 | µs | ||||||||||||||||||||||||||||||||||||||||
| Powerup Time | tOSC |
Time from 0.9 × VDDuntil output fre- quency (FCLK) within spec |
— | — | 10 | ms | |||||||||||||||||||||||||||||||||||||

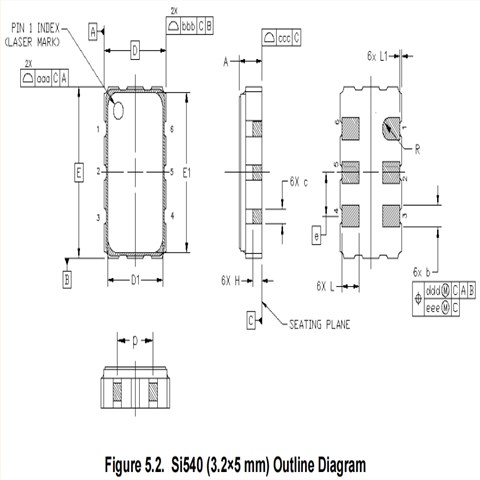

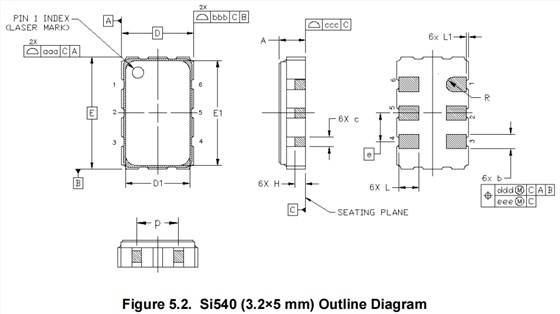

Skyworks有源晶振Si540,540AAA100M000BBG,6G交換機晶振 尺寸圖
差分晶振產品特性：
可用于0.2 MHz至1500兆赫
極低抖動：125 fs典型RMS（12kHz–20MHz）
出色的PSNR和電源抗擾度：–80 dBc典型值
7ppm穩定性選項（-40至85攝氏度）
3.3 V、2.5 V和1.8 V VDD電源操作
來自相同的零件號
LVPECL、LVDS、CML、HCSL、CMOS和雙CMOS輸出選項
2.5×3.2、3.2×5、5x7 mm封裝選項
任何自定義頻率，可提供1-2周交付周期
