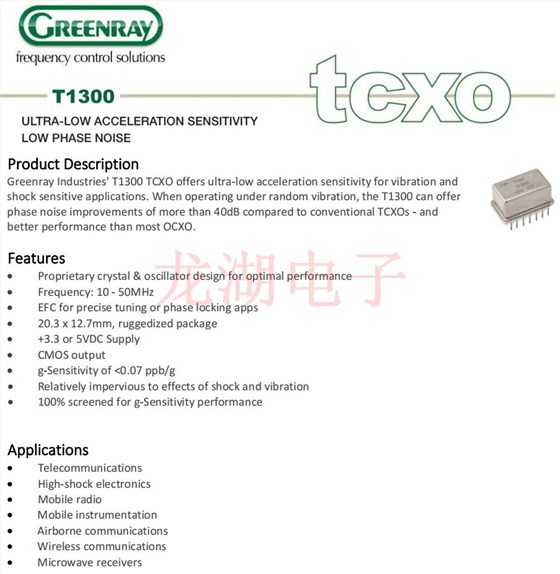

T1300-T26-5.0-LG-20.0MHz-E,有源晶振,Greenray晶振,6G微波接收器晶振，尺寸為20.3x12.7mm,頻率為20MHZ，長方型鐘振，石英晶體振蕩器，有源晶體振蕩器，進口有源晶振，低抖動晶振，低電壓晶振，高品質晶振，6G電信晶振，無線通信晶振，機載通信專用晶振，移動儀器晶振，網絡設備晶振，儀器儀表晶振，電子產品專用晶振。Greenray Industries的T1300 TCXO為振動和振動提供超低加速靈敏度對沖擊敏感的應用。當在隨機振動下工作時，T1300可以提供與傳統的tcxo相比，相位噪聲提高了40dB以上性能優于大多數OCXO。
溫補晶振產品主要應用范圍：電信，高沖擊電子產品，移動無線電，移動儀器，機載通信，無線通信，微波接收器等領域。T1300-T26-5.0-LG-20.0MHz-E,有源晶振,Greenray晶振,6G微波接收器晶振.
T1300-T26-5.0-LG-20.0MHz-E,有源晶振,Greenray晶振,6G微波接收器晶振參數表
| FrequencyCharacteristics | |||||||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | OrderingCode | |||||||||||||||
| Nominal Frequency | +25°C |
|
20 | MHz | |||||||||||||||||
|
Frequency Stability (other stability available) |
-20°C to +70°C | ± 1 | ppm | N16 | |||||||||||||||||
| -40°C to +85°C | ± 2 | ppm | T26 | ||||||||||||||||||
| Aging |
1styear, after 14 days of operation |
± 0.5 | ppm | ||||||||||||||||||
|
Acceleration Sensitivity |
(Note 1) | 0.7 | ppb/g | SD | |||||||||||||||||
| 0.1 | ppb/g | LG | |||||||||||||||||||
| 0.07 | ppb/g | ULG | |||||||||||||||||||
| Frequency vs Voltage | For a 5% change | ± 0.1 | ppm | ||||||||||||||||||
| Frequency vs Load | For a 10% change | ± 0.01 | ppb | ||||||||||||||||||
|
Electronic Frequency Control |
EFC = 0 to VDD, Positive slope 50k Ω input Z |
± 6 | ppm | ||||||||||||||||||
| Warm-up time | Within ± 1 ppm | 10 | msec | ||||||||||||||||||
| Short-term Stability | 1 sec Tau (10 MHz) | 8 | x 10-10 | ||||||||||||||||||
| PhaseNoisePerformance | |||||||||||||||||||||
| Parameter | FrequencyOffset(Hz) | Min | Typical | Max | Units | ||||||||||||||||
|
Phase Noise (static) @ 10 MHz nominal Frequency |
10 | --100 | dBc/Hz | ||||||||||||||||||
| 100 | --130 | dBc/Hz | |||||||||||||||||||
| 1k | --155 | dBc/Hz | |||||||||||||||||||
| 10 k | --162 | dBc/Hz | |||||||||||||||||||
| 100 k | --162 | dBc/Hz | |||||||||||||||||||
| DCSupply | |||||||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | OrderingCode | |||||||||||||||
| Supply Voltage VDD | 3.0 | 3.3 | 3.6 | VDC | 3.3 | ||||||||||||||||
| 4.75 | 5.0 | 5.25 | VDC | 5.0 | |||||||||||||||||
| Supply Current | 20 | mA | |||||||||||||||||||
| RFOutput:CMOSSquareWave | |||||||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | ||||||||||||||||
| Load | CMOS | 15 | pF | ||||||||||||||||||
| Level | 15 pF load, 3.3V |
+2.8 “1” level |
+0.2 “0” level |
V | |||||||||||||||||
| 15 pF load, 5.0V |
+4.5 “1” level |
+0.2 “0” level |
V | ||||||||||||||||||
| Symmetry | CMOS | 40 | 50 | 60 | % | ||||||||||||||||

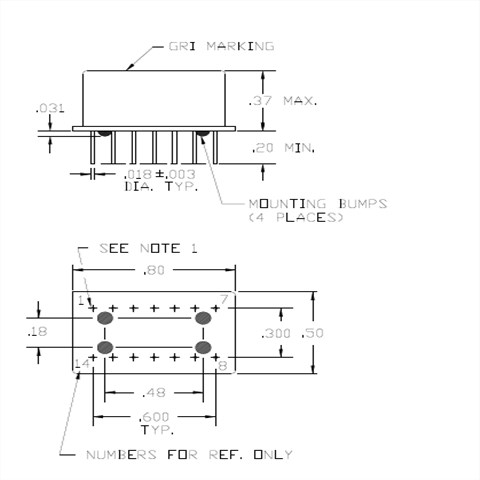

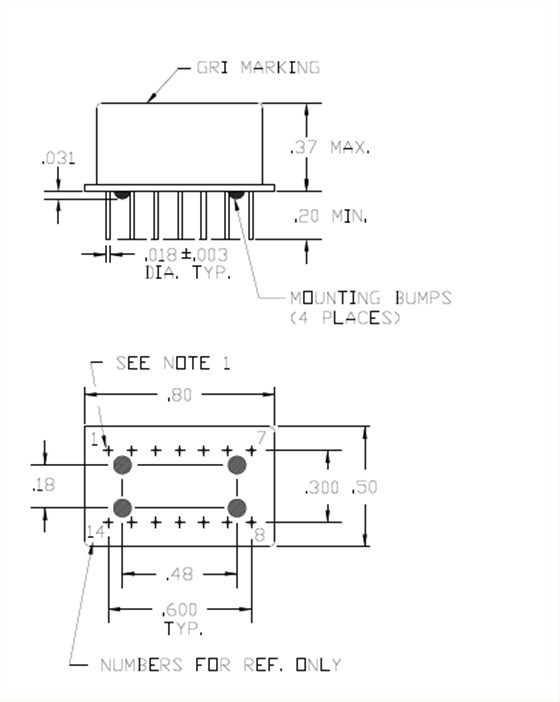

T1300-T26-5.0-LG-20.0MHz-E,有源晶振,Greenray晶振,6G微波接收器晶振 尺寸圖
OSC晶振產品特性：
專有的晶體和振蕩器設計，實現最佳性能
頻率:10 - 50MHz
EFC用于精確調諧或鎖相應用程序
20.3 x 12.7mm，堅固耐用的包裝
+3.3或5VDC電源
CMOS輸出
靈敏度<0.07 ppb/g
相對不受沖擊和振動的影響
100%篩選g-Sensitivity性能
更多相關Greenray格林雷晶振型號，請咨詢我們~
