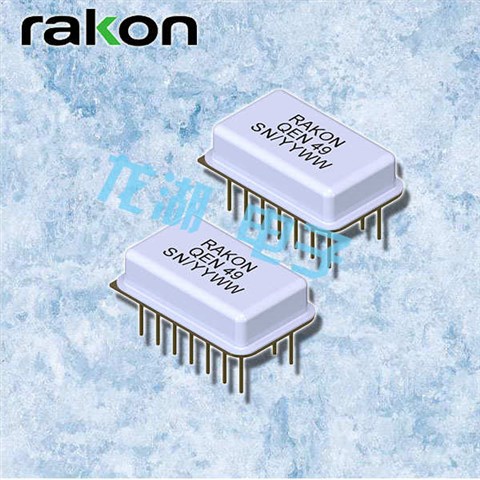

Rakon晶振,QEN49-BHRIDT50SB/T-32MHZ,長方型鐘振,6G基站晶振，尺寸20.7*13.1mm,頻率為32MHZ，進口有源晶振，OSC晶振，石英晶體振蕩器，有源晶體振蕩器，該晶體振蕩器是基于DIL軟件包中的混合技術。該XO執行+/-50至+/-100pm的總體頻率穩定性（與25°C的溫度范圍和校準、負載和電源變化），每年老化+/- 5ppm。此參考文獻適用于堅固的無線電系統，例如高速列車或航空電子系統。
進口有源晶振產品應用范圍：推薦用于嵌入式應用程序、擴展的溫度范圍和堅固的環境，無線電系統，航空電子等領域。Rakon晶振,QEN49-BHRIDT50SB/T-32MHZ,長方型鐘振,6G基站晶振.
Rakon晶振,QEN49-BHRIDT50SB/T-32MHZ,長方型鐘振,6G基站晶振 參數表
| Line | Parameters | Conditions/Remarks | MinTyp | Max | Unit | |||||||||||||
| 3.1a | Nominal Frequency | 32 | MHz | |||||||||||||||
| 3.2 |
Steady state input current power |
20 | mA | |||||||||||||||
|
3.3 3.4 |
Global Frequency stability |
Including initial accuracy+freq temp stability+power supply stab+load stability+ageing over 15 years |
Temperature option DT Temperature option AY |
± 50 ± 100 |
ppm ppm |
|||||||||||||
| 3.5 | Initial frequency accuracy | ± 15 | ppm | |||||||||||||||
|
3.6 3.7 |
Frequency‐temperature stability |
Temperature option DT |
± 20 | ppm | ||||||||||||||
|
Temperature option AY |
± 25 | ppm | ||||||||||||||||
| 3.8 |
Frequency variation vs. supply voltage |
Over Operating Temperature | ± 3 | ppm | ||||||||||||||
| 3.9 | Frequency variation vs. load | Over Operating Temperature | ± 5 | ppm | ||||||||||||||
| 3.10 | Frequency ageing | Over 15 years | ± 12 | ppm | ||||||||||||||
| 3.11 | Start up time | 10 | ms | |||||||||||||||
| 3.12 | Output waveform | AHCMOS compatible | Square | |||||||||||||||
|
3.13a 3.13b 3.14a 3.14b |
Output level |
Supply option BH VOL Supply option AH Supply option BH VOH Supply option AH |
2.4 4.5 |
0.4 0.5 |
V V V V |
|||||||||||||
| 3.15 | Duty cycle | 40 | 60 | |||||||||||||||
| Option R | 45 | 55 | % | |||||||||||||||
| 3.16 | Rise time | 10%‐90% of Vcc, frequency > 10MHz | 5 | ns | ||||||||||||||
| 3.17 | Fall time | 90%‐ 10% of Vcc, , frequency > 10MHz | 5 | ns | ||||||||||||||

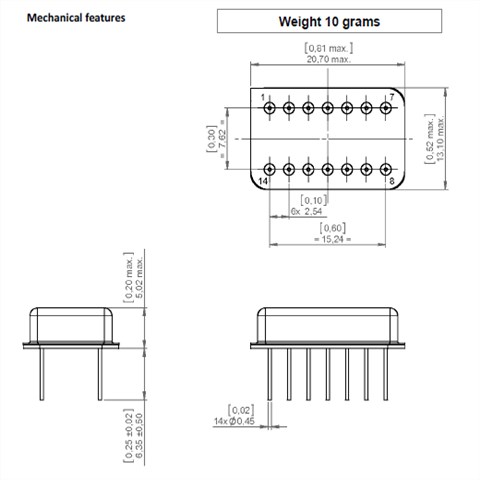

Rakon晶振,QEN49-BHRIDT50SB/T-32MHZ,長方型鐘振,6G基站晶振 尺寸圖
產品特性：
混合產品與模具和電線結合到陶瓷基板上與3點晶體諧振器。
外殼類型:DIL封裝14引腳20.7x13.1x5.1mm典型
頻率范圍:1.5MHz至100MHz
溫度范圍:從‐40°C到+85°C到‐55°C到+125°C
總體頻率穩定性與溫度范圍和校準在25°C
負載和電源變化:總體+/‐50至+/‐100pm
每年老化:第一年85°C時+/‐5ppm
輸出波形:方形;三態輸出
電源電壓:+3.3V或+5V
可選:R:占空比50/50;T:錫制銷;篩選B
更多相關瑞康晶振型號，請咨詢我們~
