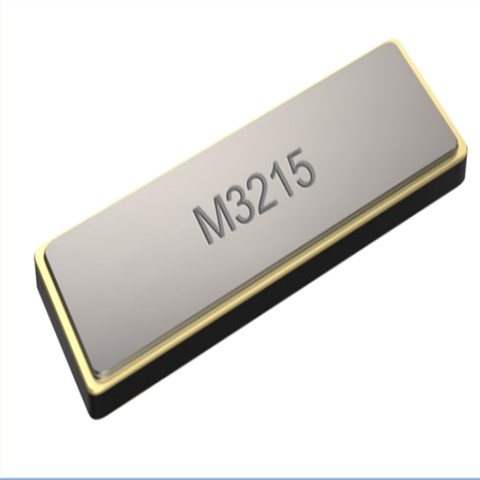

彼得曼音叉晶體,6G無線設備晶振,M3215-32.768kHz-±20ppm-12.5pF，尺寸3.2x1.5mm，頻率32.768KHZ，PETERMANN無源晶振，德國進口彼得曼貼片晶振，PETERMANN crystal，德國進口晶振，無源貼片晶振，3215系列SMD晶振，音叉晶體，32.768KHZ無源晶體，輕薄型晶振，小體積晶振，32.768KHZ時鐘晶體，無源晶振，兩腳貼片晶振，石英晶體，石英晶體諧振器，無線設備專用晶振，時鐘應用晶振，移動通信晶振，數碼相機專用晶振，兒童游戲機晶振，通信設備晶振，高性能晶振，低損耗晶振，低成本晶振，低耗能晶振，進口音叉晶振，具有輕薄型斯損耗的特點。
32.768KHZ產品比較常用于優秀的時鐘發生器的CPU，無線，移動通信，數碼相機，兒童游戲機，通信設備，儀器儀表，藍牙耳機等領域.彼得曼音叉晶體,6G無線設備晶振,M3215-32.768kHz-±20ppm-12.5pF.

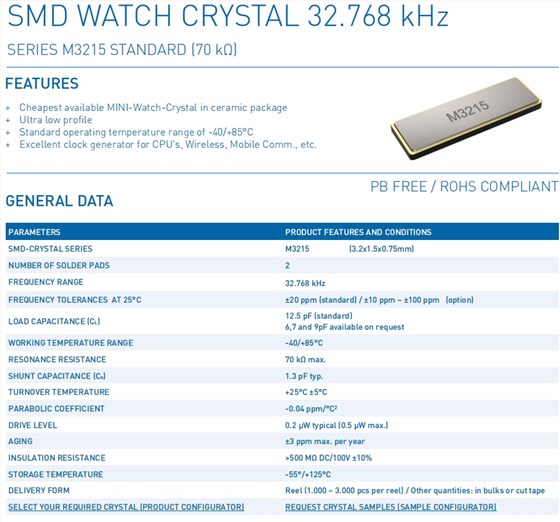

彼得曼音叉晶體,6G無線設備晶振,M3215-32.768kHz-±20ppm-12.5pF參數表
| PARAMETERS | PRODUCT FEATURES AND CONDITIONS |
| SMD-CRYSTAL SERIES | M3215 (3.2*1.5*0.75mm) |
| NUMBER OF SOLDER PADS | 2 |
| FREQUENCY RANGE | 32.768 kHz |
| FREQUENCY TOLERANCES AT 25°C | ±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option) |
| LOAD CAPACITANCE (CL) |
12.5 pF (standard) 6，7 and 9.0 pF available on request |
| WORKING TEMPERATURE RANGE | -40/+85°C |
| RESONANCE RESISTANCE | 70 kΩ max. |
| SHUNT CAPACITANCE (Co) | 1.3 pF typ. |
| TURNOVER TEMPERATURE | +25°C ±5°C |
| PARABOLIC COEFFICIENT | -0.04 ppm/°C² |
| DRIVE LEVEL | 0.2 µW typical (0.5 μW max.) |
| AGING | ±3 ppm max. per year |
| INSULATION RESISTANCE | >500 MΩ DC/100V ±10% |
| STORAGE TEMPERATURE | -55°/+125°C |
| DELIVERY FORM | Reel (1.000 ~ 3.000 pcs per reel) / Other quantities: in bulks or cut tape |

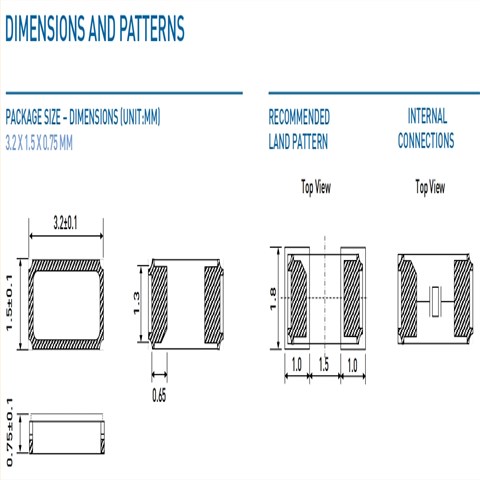

彼得曼音叉晶體,6G無線設備晶振,M3215-32.768kHz-±20ppm-12.5pF 尺寸圖
SMD晶體產品特性：
最便宜的迷你手表
水晶陶瓷包裝
超低的老化
標準工作溫度范圍-40/+85°C
更多相關彼得曼晶振型號,請咨詢我們！
