Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振特點:

寬頻率范圍：8至240MHz石英晶振

高沖擊和振動電阻率

回流焊@260°C

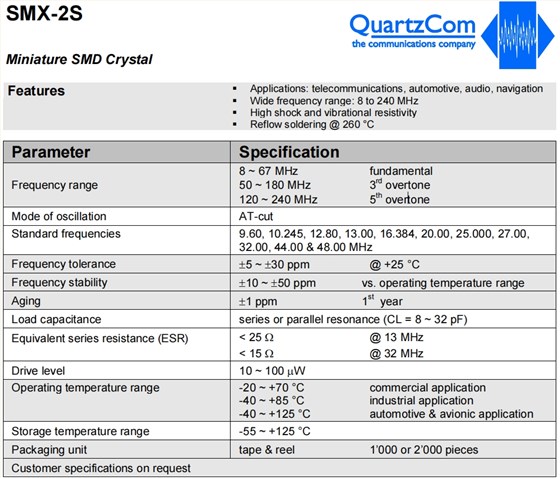

Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振 參數表

Parameter			Specification
Frequency range			8 ~ 67 MHz 50 ~ 180 MHz 120 ~ 240 MHz			fundamental 3rdovertone 5thovertone
Mode of oscillation			AT-cut
Standard frequencies			9.60, 10.245, 12.80, 13.00, 16.384, 20.00, 25.000, 27.00, 32.00, 44.00 & 48.00 MHz
Frequency tolerance			土5 ~土30 ppm@ +25 °C
Frequency stability			土10 ~土50 ppmvs. operating temperature range
Aging			土1 ppm			1st		year
Load capacitance			series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)			< 25Ω < 15Ω			@ 13 MHz @ 32 MHz
Drive level			10 ~ 100μW
Operating temperature range			-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C			commercial application industrial application automotive & avionic application
Storage temperature range			-55 ~ +125 °C
Packaging unit			tape & reel1’000 or 2’000 pieces
Customer specifications on request

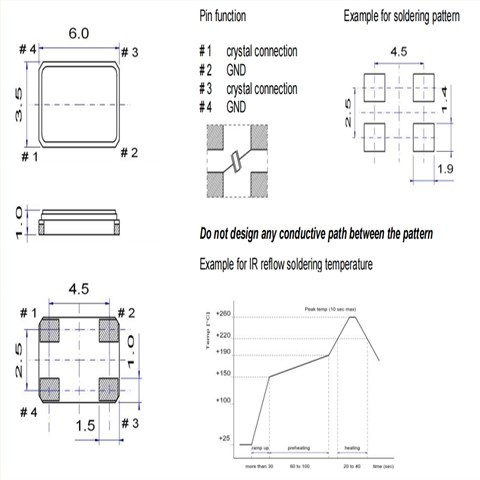

Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振 尺寸圖
