LFXTAL072541REEL,IQD石英晶振廠家,IQXC-26,進口環保晶振,英國進口晶振,除顫儀晶振,超小晶振,編碼LFXTAL072541REEL,型號IQXC-26,頻率27Mhz,15ppm精度,8pF負載電容,無鉛晶振,滿足無鉛焊接以及高溫回流溫度曲線要求,符合AEC-Q200標準

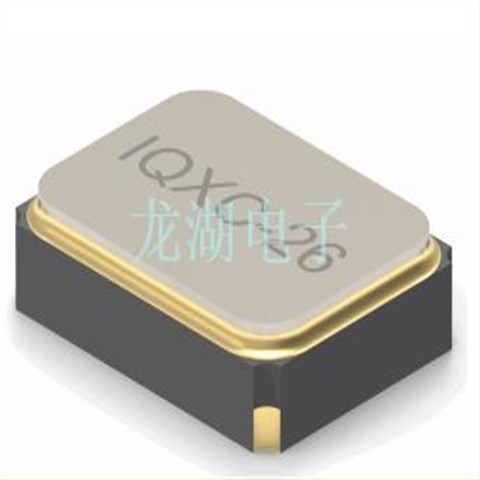

LFXTAL072541REEL,IQD石英晶振廠家,IQXC-26,進口環保晶振
| 原廠編碼 | LFXTAL072541REEL |
| 頻率 | 27MHz |
| 廠家 | IQD晶振 |
| 型號 | IQXC-26 |
| 頻率偏差 | ±15ppm |
| 負載電容 | 8pF |
| 工作溫度 | -20°C至85°C |

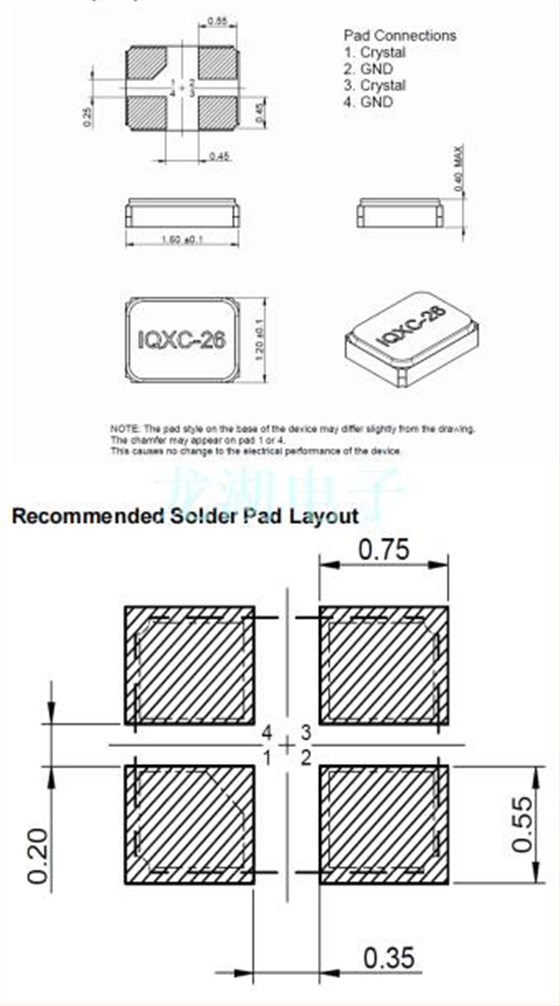

| 尺寸 | 1.6*1.2mm |
| Mfr Part # | Mfr | Series | Frequency | Frequency Tolerance | Load Capacitance |
| LFXTAL003000 | IQD Crystal | 85SMX | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL069395RL3K | IQD Crystal | CFPX-218 | 16.384 MHz | ±20ppm | 10pF |
| LFXTAL009678 | IQD Crystal | CFPX-217 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL050789REEL | IQD Crystal | IQXC-25 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL055299REEL | IQD Crystal | CFPX-180 | 25 MHz | ±20ppm | 18pF |
| LFXTAL053099REEL | IQD Crystal | CFPX-180 | 27.12 MHz | ±10ppm | 10pF |
| LFXTAL055663REEL | IQD Crystal | CFPX-104 | 8 MHz | ±20ppm | 18pF |
| LFXTAL026392REEL | IQD Crystal | 12SMX-B | 16 MHz | ±30ppm | 16pF |
| LFXTAL011301REEL | IQD Crystal | HC49/4HSMX | 8 MHz | ±30ppm | 30pF |
| LFXTAL029370REEL | IQD Crystal | HC49/4HSMX | 16 MHz | ±30ppm | 18pF |
| LFXTAL016788REEL | IQD Crystal | HC49/4HSMX | 6 MHz | ±30ppm | 30pF |
| LFXTAL002995BULK | IQD Crystal | WATCH | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL002997BULK | IQD Crystal | WATCH | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL002996BULK | IQD Crystal | WATCH | 32.768 kHz | ±15ppm | 12.5pF |
| LFXTAL025159REEL | IQD Crystal | CFPX-56 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL003181REEL | IQD Crystal | HC49/4HSMX | 20 MHz | ±30ppm | 16pF |
| LFXTAL003166REEL | IQD Crystal | HC49/4HSMX | 10 MHz | ±30ppm | 16pF |
| LFXTAL029914REEL | IQD Crystal | HC49/4HSMX | 8 MHz | ±30ppm | 16pF |
| LFXTAL003151REEL | IQD Crystal | HC49/4HSMX | 8 MHz | ±30ppm | 16pF |
| LFXTAL003237REEL | IQD Crystal | HC49/4HSMX | 16 MHz | ±30ppm | 16pF |
| LFXTAL014219BULK | IQD Crystal | WATCH | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL069494REEL | IQD Crystal | IQXC-42 | 25 MHz | ±15ppm | 10pF |
| LFXTAL069383REEL | IQD Crystal | CFPX-218 | 24 MHz | ±20ppm | 10pF |
| LFXTAL035264REEL | IQD Crystal | CFPX-180 | 16 MHz | ±50ppm | 16pF |
| LFXTAL069944REEL | IQD Crystal | CFPX-180 | 12 MHz | ±20ppm | 15pF |
| LFXTAL035268REEL | IQD Crystal | CFPX-180 | 25 MHz | ±50ppm | 16pF |
| LFXTAL056140REEL | IQD Crystal | IQXC-180 AUTO | 24 MHz | ±50ppm | 8pF |
| LFXTAL069526REEL | IQD Crystal | IQXC-26 | 32 MHz | ±15ppm | 8pF |
| LFXTAL084885 | IQD Crystal | IQXC-217 | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL036075BULK | IQD Crystal | HC49/4H | 27.12 MHz | ±30ppm | 10pF |
