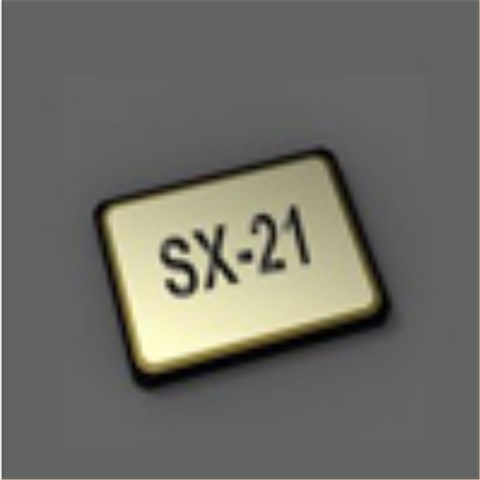

SX-21-10-10HZ-30.000MHz-7pF,2016mm,30MHZ,SHINSUNG數字電視晶振,新松石英晶振,韓國進口晶振,石英振動子,輕薄型晶振,30MHZ石英晶體諧振器,四腳無源晶體,SMD晶振,2016mm貼片晶振,尺寸2.0x1.6mm,頻率30MHZ,負載7pF,無鉛環保晶振,低損耗晶振,高性能晶振,蜂窩電話晶振,數字電視晶振,可穿戴設備晶振,微處理器時鐘晶振.

SX-21-10-10HZ-30.000MHz-7pF,2016mm,30MHZ,SHINSUNG數字電視晶振特點:

±10pmm溫度穩定性可用

AAT-CUT仿制品或第三代O/T水晶設計

寬頻率范圍

陶瓷SMD晶振封裝

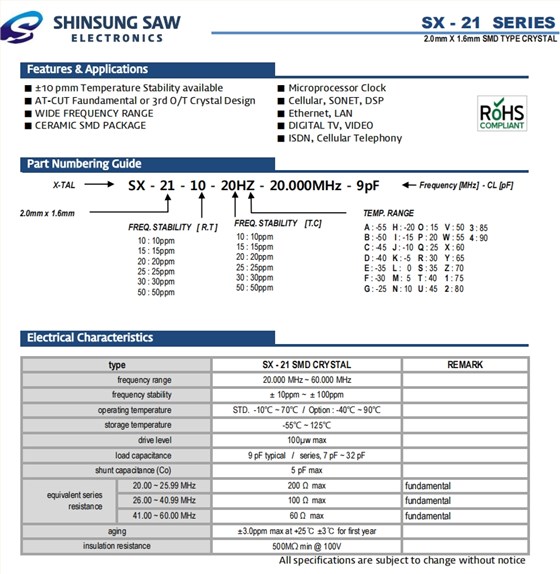

SX-21-10-10HZ-30.000MHz-7pF,2016mm,30MHZ,SHINSUNG數字電視晶振 參數表

type

SX - 21 SMD CRYSTAL

REMARK

frequency range

30.000 MHz

frequency stability

± 10ppm ~± 100ppm

operating temperature

STD.-10℃~ 70℃/Option : -40℃~ 90℃

storage temperature

-55℃~ 125℃

drive level

100µw max

load capacitance

9 pF typical/series, 7 pF ~ 32 pF

shunt capacitance (Co)

5 pF max

equivalent series resistance

20.00 ~ 25.99 MHz

200 Ωmax

fundamental

26.00 ~ 40.99 MHz

100 Ωmax

fundamental

41.00 ~ 60.00 MHz

60 Ωmax

fundamental

aging

±3.0ppm max at +25℃±3℃for first year

insulation resistance

500MΩmin @ 100V

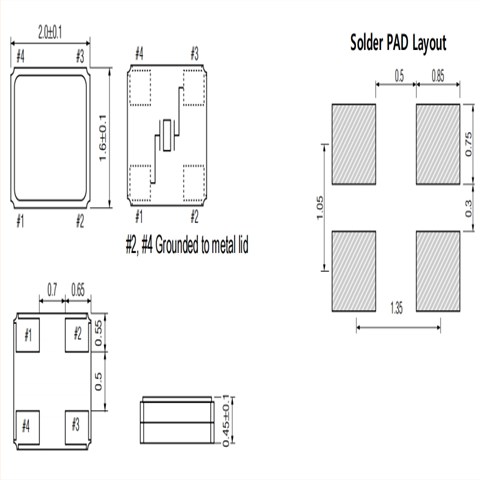

SX-21-10-10HZ-30.000MHz-7pF,2016mm,30MHZ,SHINSUNG數字電視晶振尺寸圖
