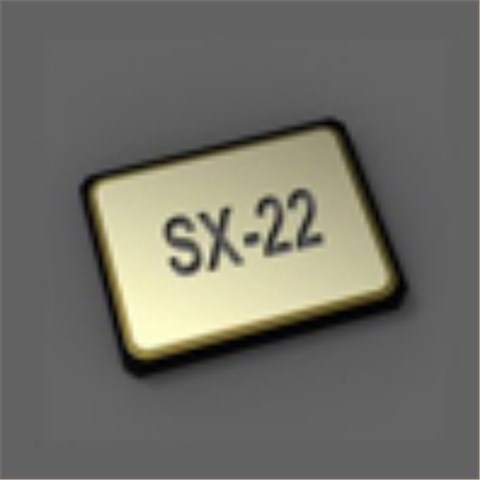

SX-22系列,新松蜂窩電話晶振,SX-22-20-20HZ-32.000MHz-10pF,2520mm,32MHZ,SHINSUNG新松小體積晶振,韓國進口進口晶振,水晶振動子,2520mm貼片晶振,貼片石英晶振,32MHZ晶體諧振器,SMD晶體,輕薄型晶振,尺寸2.5x2.0mm,頻率32MHZ,負載10pF,耐高溫晶振,低成本晶振,低耗能晶振,數字視頻晶振,以太網晶振,網絡設備晶振,蜂窩電話晶振.

SX-22系列,新松蜂窩電話晶振,SX-22-20-20HZ-32.000MHz-10pF,2520mm,32MHZ特點:

±10pmm溫度穩定性可用

AAT-CUT仿制品或第三代O/T水晶設計

寬頻率范圍

陶瓷SMD貼片晶振封裝

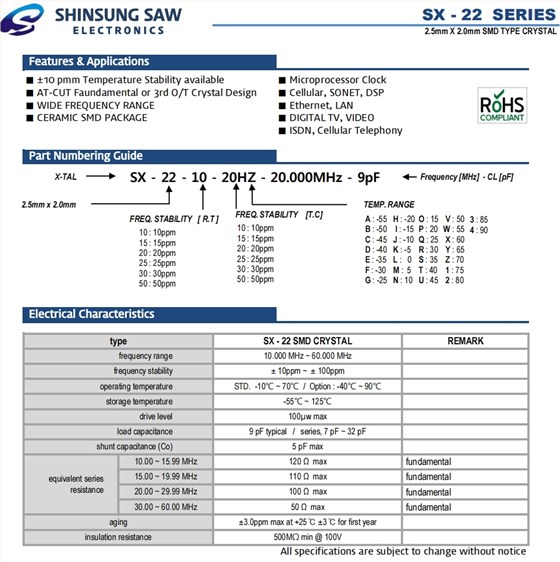

SX-22系列,新松蜂窩電話晶振,SX-22-20-20HZ-32.000MHz-10pF,2520mm,32MHZ 參數表

type

SX - 22 SMD CRYSTAL

REMARK

frequency range

32.000 MHz

frequency stability

± 10ppm ~± 100ppm

operating temperature

STD.-10℃~ 70℃/Option : -40℃~ 90℃

storage temperature

-55℃~ 125℃

drive level

100µw max

load capacitance

9 pF typical/series, 7 pF ~ 32 pF

shunt capacitance (Co)

5 pF max

equivalent series resistance

10.00 ~ 15.99 MHz

120 Ωmax

fundamental

15.00 ~ 19.99 MHz

110 Ωmax

fundamental

20.00 ~ 29.99 MHz

100 Ωmax

fundamental

30.00 ~ 60.00 MHz

50 Ωmax

fundamental

aging

±3.0ppm max at +25℃±3℃for first year

insulation resistance

500MΩmin @ 100V

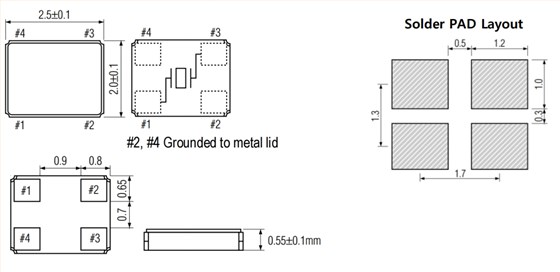

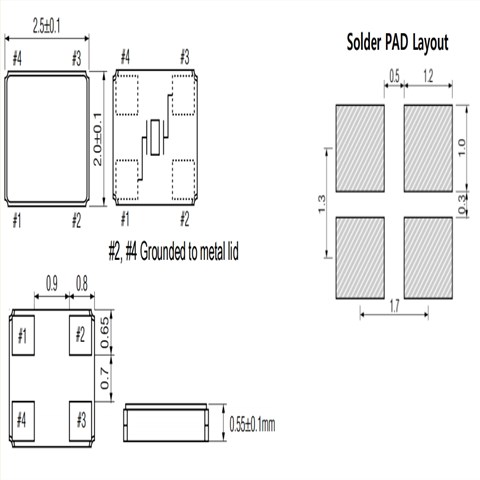

SX-22系列,新松蜂窩電話晶振,SX-22-20-20HZ-32.000MHz-10pF,2520mm,32MHZ尺寸圖
