X1G004801007700是一款低電壓的智能家居SPXO振蕩器，愛普生公司是一家具備多元化的制造商，公司自成立以來一直秉持著專業，誠信的經營理念，致力于幫助全球用戶解決在晶體行業所遇到的問題，以此實現自我的價值，并打造專業化的技術團隊以及一流的服務團隊，開發出優質的日系晶振.

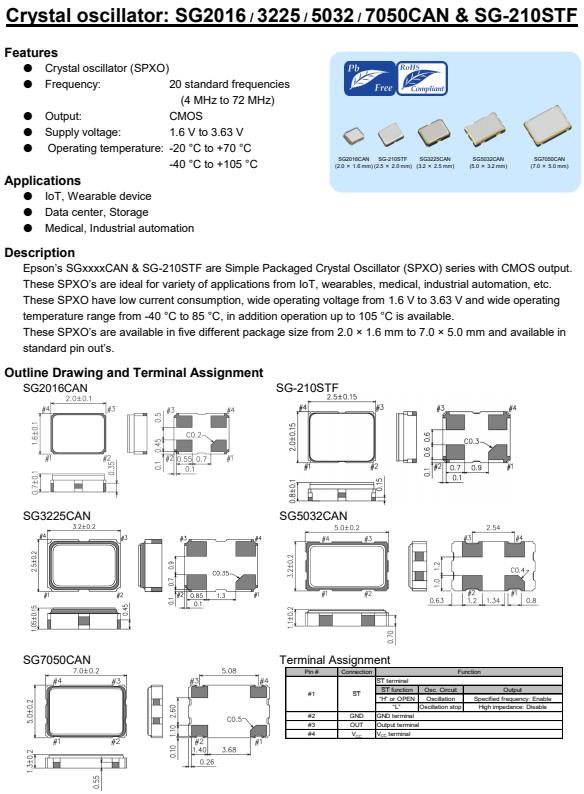

愛普生很高興宣布推出了SG2016CAN晶振，編碼X1G004801007700，頻率26.000000兆赫，輸出WaveCMOS，電源電壓1.60 ~ 3.63 V，尺寸(LxWxH)2.00 x 1.60 x 0.70 mm，操作溫度-20至+70°C，頻率公差±25ppm，額外OptionsN /OSC TypeClock OSC，這是一款高精度，低抖動的SPXO振蕩器，很適合用于智能交通燈控制器，電子數碼，智能家居等領域，這些SPXO具有低電流消耗，寬工作電壓從1.6 V到3.63 V和寬工作范圍，溫度范圍從-40°C到85°C，此外可操作高達105°C。這些SPXO有五種不同的包裝尺寸，從2.0 × 1.6毫米到7.0 × 5.0毫米，可在標準針的。

Product Number	Model	愛普生晶振	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G004801006800	SG2016CAN	48.000000 MHz	2.00 x 1.60 x 0.70 mm	CMOS	1.600 to 3.630 V	-20 to 70 °C	+/-25 ppm
X1G004801006900	SG2016CAN	48.000000 MHz	2.00 x 1.60 x 0.70 mm	CMOS	1.600 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G004801007000	SG2016CAN	50.000000 MHz	2.00 x 1.60 x 0.70 mm	CMOS	1.600 to 3.630 V	-20 to 70 °C	+/-25 ppm
X1G004801007100	SG2016CAN	72.000000 MHz	2.00 x 1.60 x 0.70 mm	CMOS	1.710 to 3.630 V	-20 to 70 °C	+/-25 ppm
X1G004801007200	SG2016CAN	72.000000 MHz	2.00 x 1.60 x 0.70 mm	CMOS	1.710 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004801007300	SG2016CAN	72.000000 MHz	2.00 x 1.60 x 0.70 mm	CMOS	2.250 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G004801007600	SG2016CAN	32.000000 MHz	2.00 x 1.60 x 0.70 mm	CMOS	1.600 to 3.630 V	-20 to 70 °C	+/-25 ppm
X1G004801007700	SG2016CAN	26.000000 MHz	2.00 x 1.60 x 0.70 mm	CMOS	1.600 to 3.630 V	-20 to 70 °C	+/-25 ppm
Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G005221000100	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm
X1G005221000200	SG3225EEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm
X1G005221000300	SG3225EEN	125.003125 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm
X1G005221000400	SG3225EEN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm
X1G005221000500	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm
X1G005221000700	SG3225EEN	156.253906 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm
X1G005221000800	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1G005221001300	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-100 ppm
X1G005221001400	SG3225EEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-100 ppm
X1G005221001800	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1G005221001900	SG3225EEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm
X1G005221002100	SG3225EEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C	+/-50 ppm
