當前位置：首頁 » 進口晶振 » 京瓷晶振 » CX3225GA30000D0PTVCC,Kyocera車載音響晶振,CX3225GA陶瓷諧振器

prevnext

CX3225GA30000D0PTVCC,Kyocera車載音響晶振,CX3225GA陶瓷諧振器

頻率：30MHZ

尺寸：3.2x2.5mm

CX3225GA30000D0PTVCC,Kyocera車載音響晶振,CX3225GA陶瓷諧振器，尺寸3.2x2.5mm，頻率30MHZ，日本進口晶振，京瓷無源晶振，水晶振動子，無源貼片晶振，無源晶體，SMD晶振，陶瓷晶振，無鉛環保晶振，3225mm貼片晶振，陶瓷諧振器，低損耗晶振，低功耗晶振，低成本晶振，低老化晶振，高性能晶振，高品質晶振，車載音響專用晶振，網絡設備晶振，發動機控制晶振，小型設備晶振，便攜式設備晶振，輪胎氣壓監測系統晶振，具有低損耗高性能的特點。

貼片晶體產品可滿足不同應用程序的需求，適合用于發動機控制，輪胎氣壓監測系統（TPMS），高速車載網絡，小型設備，便攜式設備等領域。CX3225GA30000D0PTVCC,Kyocera車載音響晶振,CX3225GA陶瓷諧振器.

訂購熱線：0755-29952551

LH-1

LH-2

CX3225GA30000D0PTVCC,Kyocera車載音響晶振,CX3225GA陶瓷諧振器 參數表

項目

記號

標準規格

単位

備考

周波數

f_nom

MHZ

オーバートーン次數

Fundamental

―

負荷容量

その他の負荷容量についてはお問い合わせ下さい。

周波數許容偏差

f_tol

±50

× 10−6

25°C±3°C

直列抵抗

Table 1

ohm

勵振レベル

Table 2

動作溫度範囲

T_use

−40 ~ +150

°C

保存溫度範囲

T_stg

−40 ~ +150

°C

周波數溫度特性

f_tem

± 150

× 10−6

25°Cの周波數に対しての偏差

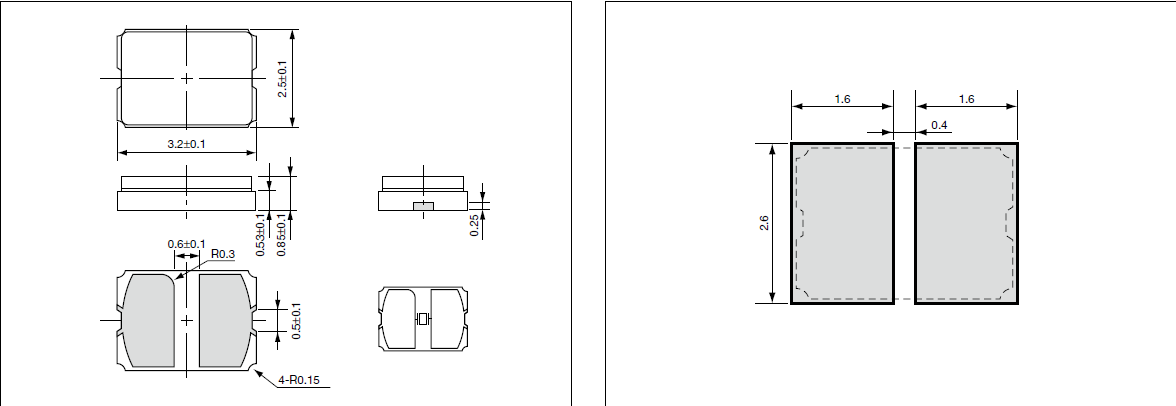

CX3225GA30000D0PTVCC,Kyocera車載音響晶振,CX3225GA陶瓷諧振器 尺寸圖

CX3225GA30000D0PTVCC,Kyocera車載音響晶振,CX3225GA陶瓷諧振器

SMD晶振產品特點:

車載對應石英振子

提高電極焊接部分耐久性

小型，薄型厚度0.85 mm

陶瓷封裝

小型薄型，出色的抗沖擊性

支持回流

-40~+125°C熱循環焊結強度支持3000循環

原廠編碼	廠家	型號	頻率	工作溫度
CX3225GB33333P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	33.333MHz	-40°C ~ 85°C
CX3225GB24576D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	24.576MHz	-40°C ~ 85°C
CX3225GB14745P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	14.7456MHz	-40°C ~ 85°C
CX3225GB36000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	36MHz	-40°C ~ 85°C
CX3225SB40000D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	40MHz	-40°C ~ 85°C
CX3225SB40000D0FFFCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	40MHz	-20°C ~ 70°C
CX3225SB16000D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	16MHz	-40°C ~ 85°C
CX3225SB19200D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	19.2MHz	-40°C ~ 85°C
CX3225SB24000D0FFJCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	24MHz	-20°C ~ 70°C
CX3225SB20000D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	20MHz	-40°C ~ 85°C
CX3225SB30000D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	30MHz	-40°C ~ 85°C
CX3225CA12000P0HSTC1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	12MHz	-40°C ~ 125°C
CX3225SB38400D0FFFCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	38.4MHz	-20°C ~ 70°C
CX3225GB12288P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	12.288MHz	-40°C ~ 85°C
CX5032GB12000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	12MHz	-40°C ~ 85°C
CX3225SB48000D0FFFCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	48MHz	-20°C ~ 70°C
CX3225SB27000D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	27MHz	-40°C ~ 85°C
CX3225SB25000D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	25MHz	-40°C ~ 85°C
ST3215SB32768C0HSZA1	AVX Corp/Kyocera Corp	ST3215SB, Kyocera	32.768kHz	-40°C ~ 125°C
CX2520DB30000D0GEJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	30MHz	-10°C ~ 70°C
CX2016DB26000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	26MHz	-30°C ~ 85°C
CX3225CA12000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	12MHz	-40°C ~ 125°C
CX2016DB20000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	20MHz	-30°C ~ 85°C
CX3225CA16000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	16MHz	-40°C ~ 125°C
CX2520DB16000D0FLJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	16MHz	-30°C ~ 85°C
CX3225GA24000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	24MHz	-40°C ~ 150°C
CX2520DB26000D0FLJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	26MHz	-30°C ~ 85°C
CX3225GA25000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	25MHz	-40°C ~ 150°C
ST3215SB32768Z0HPWBB	AVX Corp/Kyocera Corp	ST3215SB, Kyocera	32.768kHz	-40°C ~ 85°C
CX5032GB27000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	27MHz	-10°C ~ 70°C
CX5032GB14318H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	14.31818MHz	-10°C ~ 70°C
CX3225SB48000D0FPJC2	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	48MHz	-40°C ~ 85°C
CT1612DB38400C0FLHA1	AVX Corp/Kyocera Corp	CT1612DB, Kyocera	38.4MHz	-30°C ~ 105°C
CX2016DB48000E0DLFA1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	48MHz	-30°C ~ 85°C
CX3225SB16000E0FPZ25	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	16MHz	-40°C ~ 85°C
CX3225SB16000D0FLJZZ	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	16MHz	-30°C ~ 85°C
CX3225SB54000D0FPJC1	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	54MHz	-40°C ~ 85°C
CX2520SB24000D0PESZZ	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	24MHz	-10°C ~ 70°C
CX-96F-040.000-E0107	AVX Corp/Kyocera Corp	CX5032SB, Kyocera	40MHz	0°C ~ 85°C
CX3225GB38400D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	38.4MHz	-10°C ~ 70°C
CX3225GB14745D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	14.7456MHz	-10°C ~ 70°C
CX3225GB54000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	54MHz	-10°C ~ 70°C
CX3225GB24576D0HEQCC	AVX Corp/KYOCERA晶振	CX3225GB, Kyocera	24.576MHz	-10°C ~ 70°C
CX3225GB30000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	30MHz	-10°C ~ 70°C
CX3225GB13560D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	13.56MHz	-10°C ~ 70°C
CX3225GB19200D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	19.2MHz	-10°C ~ 70°C
CX3225GB33333D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	33.333MHz	-10°C ~ 70°C
CX3225GB40000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	40MHz	-10°C ~ 70°C
CX3225GB20000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	20MHz	-10°C ~ 70°C
CX3225GB38400P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	38.4MHz	-40°C ~ 85°C
CX3225GB54000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	54MHz	-40°C ~ 85°C
CX3225GB14318D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	14.31818MHz	-40°C ~ 85°C
CX3225GB16384P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	16.384MHz	-40°C ~ 85°C
CX3225GB40000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	40MHz	-40°C ~ 85°C
CX3225GB54000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	54MHz	-40°C ~ 85°C
CX3225GB38400D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	38.4MHz	-40°C ~ 85°C
CX3225GB18432P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	18.432MHz	-40°C ~ 85°C
CX3225GB19200D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	19.2MHz	-40°C ~ 85°C
CX3225GB18432D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	18.432MHz	-40°C ~ 85°C
CX3225GB27000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	27MHz	-40°C ~ 85°C
CX3225GB48000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	48MHz	-40°C ~ 85°C
CX3225GB32000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	32MHz	-40°C ~ 85°C
CX3225GB30000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	30MHz	-40°C ~ 85°C
CX3225GB33333D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	33.333MHz	-40°C ~ 85°C
CX3225CA09843D0HSSTT	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	9.843MHz	-40°C ~ 125°C
CX3225CA28636D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	28.63636MHz	-40°C ~ 125°C
CX3225CA27000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	27MHz	-40°C ~ 125°C
CX3225CA30000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	30MHz	-40°C ~ 125°C
CX3225GA20000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	20MHz	-40°C ~ 150°C
CX3225GA26000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	26MHz	-40°C ~ 150°C
CX3225GA30000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	30MHz	-40°C ~ 150°C
CX3225GA27000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	27MHz	-40°C ~ 150°C
CX3225GA13560D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	13.56MHz	-40°C ~ 150°C
CX3225GA32000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	32MHz	-40°C ~ 150°C
CX3225GA09843D0PTVTT	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	9.843MHz	-40°C ~ 150°C
CX3225SB12000D0FLJCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	12MHz	-30°C ~ 85°C
CX2016DB16000D0WZRC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	16MHz	-25°C ~ 75°C
CX5032GB16000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	16MHz	-40°C ~ 85°C
CX3225SB48000D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	48MHz	-40°C ~ 85°C
CX5032GB08000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	8MHz	-40°C ~ 85°C
CX2016DB48000C0WLLA1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	48MHz	-30°C ~ 85°C
CX3225SB38400D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	38.4MHz	-40°C ~ 85°C
CX2520DB38400D0FZGC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	38.4MHz	-25°C ~ 85°C
