HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶體,Fortiming大尺寸晶振特點:

符合RoHS標準（無鉛），可提供寬頻率范圍

AT切割插件晶振，出色的時效性，擴展的溫度范圍

工業標準封裝，低成本，微處理器晶體

選項：頂部焊接第三根引線；乙烯基套筒；絕緣子接線片；SMT成型引線

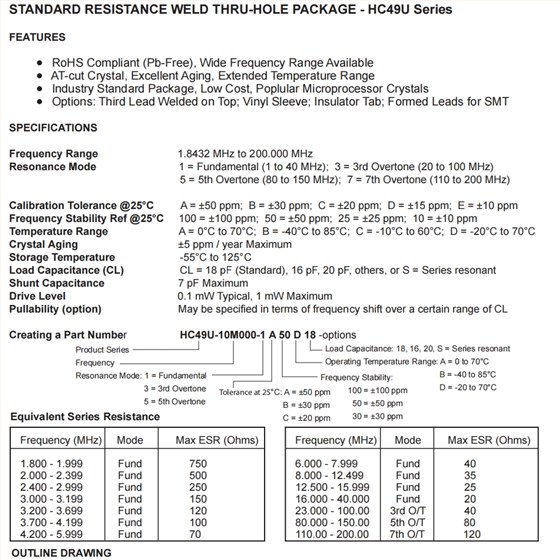

HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶體,Fortiming大尺寸晶振 參數表

Frequency Range			12.000 MHz
Resonance Mode			1 = Fundamental (1 to 40 MHz);3 = 3rd Overtone (20 to 100 MHz) 5 = 5th Overtone (80 to 150 MHz);7 = 7th Overtone (110 to 200 MHz)
Calibration Tolerance @25°C			A = ±50 ppm;B = ±30 ppm;C = ±20 ppm;D = ±15 ppm;E = ±10 ppm
Frequency Stability Ref @25°C			100 = ±100 ppm;50 = ±50 ppm;25 = ±25 ppm;10 = ±10 ppm
Temperature Range			A = 0°C to 70°C;B = -40°C to 85°C;C = -10°C to 60°C;D = -20°C to 70°C
Crystal Aging			±5 ppm / year Maximum
Storage Temperature			-55°C to 125°C
Load Capacitance (CL)			CL = 18 pF (Standard), 16 pF, 20 pF, others, or S = Series resonant
Shunt Capacitance			7 pF Maximum
Drive Level			0.1 mW Typical, 1 mW Maximum
Pullability (option)			May be specified in terms of frequency shift over a certain range of CL

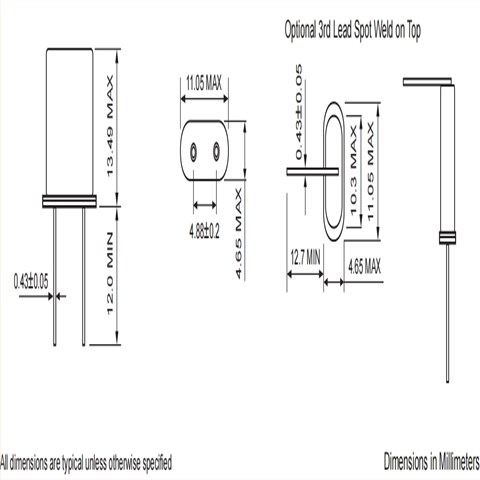

HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶體,Fortiming大尺寸晶振 尺寸圖
