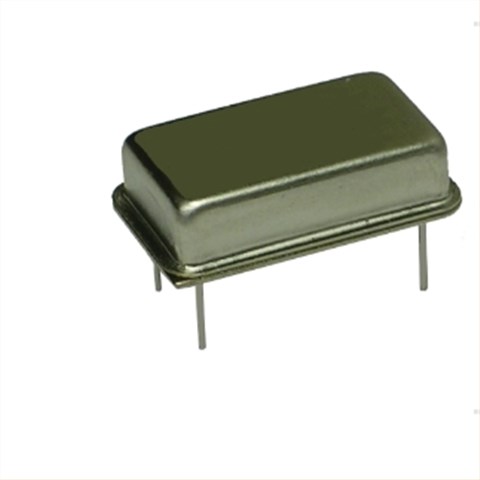

CPPFXT7L-A7BR-12.0TS 卡迪納爾晶振 OSC晶振 6G基站晶振，尺寸20.80mmx13.20mm,頻率為12MHZ，石英晶體振蕩器，歐美進口晶振，有源晶體振蕩器，時鐘晶體振蕩器，OSC晶振，低抖動晶振，低相位晶振，儀器設備晶振，無線通信晶振，6G模塊晶振，6G放大器晶振，網絡設備晶振，物聯網晶振，智能家居晶振，電子產品專用晶振。
有源振蕩器產品主要應用：儀器設備，無線通信，6G模塊，6G放大器，網絡設備，物聯網，智能家居，電子產品等領域。CPPFXT7L-A7BR-12.0TS 卡迪納爾晶振 OSC晶振 6G基站晶振.

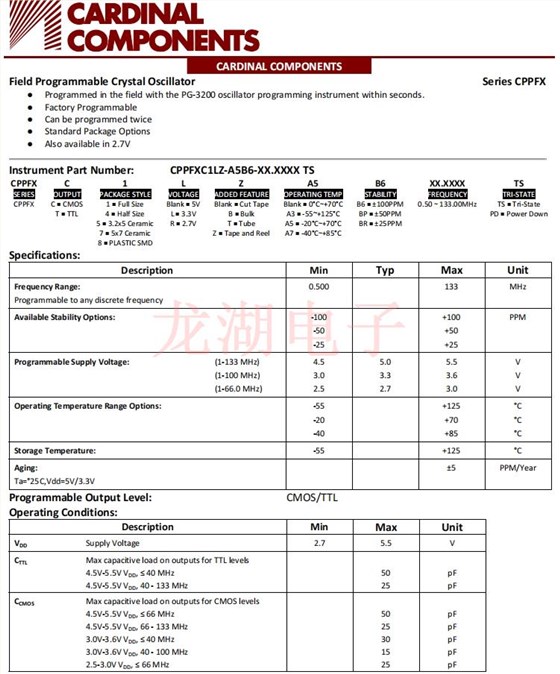

CPPFXT7L-A7BR-12.0TS 卡迪納爾晶振 OSC晶振 6G基站晶振參數表
| Description | Min | Typ | Max | Unit | ||||||||||||||
|
FrequencyRange: Programmable to any discrete frequency |
|
12 | MHz | |||||||||||||||
| AvailableStabilityOptions: |
-100 -50 -25 |
+100 +50 +25 |
PPM | |||||||||||||||
| ProgrammableSupplyVoltage: |
(1-133 MHz) (1-100 MHz) (1-66.0 MHz) |
4.5 3.0 2.5 |
5.0 3.3 2.7 |
5.5 3.6 3.0 |
V V V |
|||||||||||||
| OperatingTemperatureRangeOptions: |
-55 -20 -40 |
+125 +70 +85 |
°C °C °C |
|||||||||||||||
| StorageTemperature: | --55 | +125 | °C | |||||||||||||||
|
Aging: Ta=°25C,Vdd=5V/3.3V |
±5 | PPM/Year | ||||||||||||||||
| Description | TestConditions | Min | Typ | Max | Unit | |||||||||||||
|
DutyCycle: TTL @ 1.4V 4.5‐5.5 VDD |
≤ 50 MHz, CL= 50 pF 50 ‐ 66 MHz, CL= 15 pF 66 ‐ 125 MHz, CL= 25 pF 125 ‐ 133 MHz, CL= 15 pF |
45 45 40 40 |
‐ ‐ ‐ ‐ |
55 55 60 60 |
% % % % |
|||||||||||||
|
DutyCycle: CMOS @ VDD/2 4.5‐5.5 VDD 3.0‐3.6 VDD |
≤ 66 MHz, CL≤ 25 pF 66 ‐ 125 MHz, CL≤ 25 pF 125 ‐ 133 MHz, CL≤ 15 pF ≤ 40 MHz, CL≤ 30 pF 40 ‐ 100 MHz, CL≤ 15 pF |
45 40 60 45 40 |
‐ ‐ ‐ ‐ ‐ |
55 60 60 55 60 |
% % % % % |
|||||||||||||
| Rise/Fall: |
0.8V ‐ 2.0V, 4.5 ‐ 5.5 VDD, CL= 50 pF 0.8V ‐ 2.0V, 4.5 ‐ 5.5 VDD, CL= 25 pF 0.8V ‐ 2.0V, 4.5 ‐ 5.5 VDD, CL= 15 pF 0.2V ‐ 0.8 * VDD, 4.5 ‐ 5.5 VDD, CL= 50 pF 0.2V ‐ 0.8 * VDD, 3.0 ‐ 3.6 VDD, CL= 30 pF 0.2V ‐ 0.8 * VDD, 3.0 ‐ 3.6 VDD, CL= 15 pF |
1.8 1.2 0.9 3.4 4.0 2.4 |
ns ns ns ns ns ns |
|||||||||||||||
| StartUpTime | From Power On | ‐ | ‐ | 2 | ms | |||||||||||||
|
PowerDownDelayTime Synchronous Asynchronous |
PWR_DOWN pin LOW to output Hi‐Z, T = Frequency Oscillator Period |
T/2 10 |
T+10 15 |
ns ns |
||||||||||||||
|
OutputDisableTime Synchronous Asynchronous |
OE pin LOW to output Hi‐Z, T = Frequency Oscillator Period |
T/2 10 |
T+10 15 |
ns ns |
||||||||||||||
| OutputEnableTime | 100 | ns | ||||||||||||||||
| RMSPeriodJitter |
≤ 33.000 MHz > 33.000 MHz |
11 8 |
13 11 |
ps ps |
||||||||||||||
| PeaktoPeak* |
≤ 33.000 MHz > 33.000 MHz |
80 65 |
110 80 |
ps ps |
||||||||||||||
| Description | TestConditions | Min | Typ | Max | Unit | |||||||||||||
| InputCharacteristics(Pin1): | ||||||||||||||||||
|
VIL, Low‐ Level Input Voltage (To Tri‐State or Power Down) |
VDD= 5.0 V VDD= 3.3 V VDD = 2.7 V |
‐ ‐ ‐ |
‐ ‐ ‐ |
0.8 0.2 * VDD 0.2 * VDD |
V V V |
|||||||||||||
|
VIH, High‐ Level Input Voltage (To Enable Output or Open) |
VDD= 5.0 V VDD= 3.3 V |
2.0 0.7 * VDD |
‐ ‐ |
‐ ‐ |
V V |
|||||||||||||
| IIL, Input Low Current | VIN= 0 V | ‐ | ‐ | 10 | µA | |||||||||||||
| IIH, Input High Current | VIN= VDD | ‐ | ‐ | 5 | µA | |||||||||||||
| OutputCharacteristics: | ||||||||||||||||||
| VOL, Low‐ Level Output Voltage |
VDD= 5.0 V, IOL= 16mA VDD= 3.3 V, IOL= 8mA |
‐ ‐ |
‐ ‐ |
0.4 0.4 |
V V |
|||||||||||||
| VIHTTL, High‐ Level Output Voltage | VDD= 5.0 V, IOL= ‐ 16mA | 2.4 | ‐ | ‐ | V | |||||||||||||
| VIHCMOS, High‐ Level Output Voltage |
VDD= 5.0 V, IOL= ‐ 16mA VDD= 3.3 V, IOL= ‐8mA |
VDD‐0.4 VDD‐0.4 |
‐ ‐ |
‐ ‐ |
V V |
|||||||||||||
|
PowerSupplyCurrent: (Unloaded) |
VDD= 5.0 V , FO≤ 133 MHz VDD= 3.3 V , FO≤ 100 MHz VDD= 2.7 V , FO≤ 66.0 MHz |
‐ ‐ ‐ |
‐ ‐ ‐ |
45 25 20 |
mA mA mA |
|||||||||||||
| StandbyCurrent: | ‐ | 10 | 50 | µA | ||||||||||||||
| Tri‐StateLeakageCurrent | VDD= 5.0 V | ‐ | 20 | ‐ | µA | |||||||||||||
| OutputEnableMode: | Output is Tri‐Stated | |||||||||||||||||
| PowerDownMode: | Output is Tri‐Stated | |||||||||||||||||

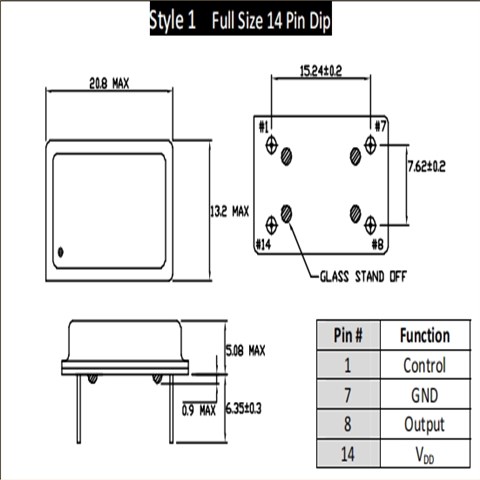

CPPFXT7L-A7BR-12.0TS 卡迪納爾晶振 OSC晶振 6G基站晶振 尺寸圖
