具有差異化的FA-20H石英無源晶振編碼Q24FA20H0004700，當我們徜徉在電子產品帶來的便利與舒適感時，值得我們細細探究，并探索家電產品的構成部分，也許你會覺得很有意義，或許你會覺得不毫無新意，但是生活在這個處處便利的世界里，石英晶振產品迎來巨大的變革，從最初的大體積到如今的小型化，經過多年科研成果，取得如今的成就，實屬驚奇。在實現家電產品的小型化設計付出多少心血，這是我們無法想象的過程。

產品編碼	尺寸	Model	Frequency	CL Value	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range
Q24FA20H0000100	2.5 x 2 x 0.55mm	FA-20H	18.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-30 to +85 °C
Q24FA20H0000300	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm	+/-18 ppm	-20 to +70 °C
Q24FA20H0000500	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0000600	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +70 °C
Q24FA20H0000800	2.5 x 2 x 0.55mm	FA-20H	48.000000 MHz	7 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q24FA20H0002900	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8 pF	+/-10 ppm	+/-15 ppm	-20 to +75 °C
Q24FA20H0003100	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm	+/-15 ppm	-20 to +75 °C
Q24FA20H0003600	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	11.5 pF	+/-10 ppm	+/-15 ppm	-20 to +75 °C
Q24FA20H0003800	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +70 °C
Q24FA20H0003900	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	-9/+11 ppm	-10/+8 ppm	-20 to +75 °C
Q24FA20H0004400	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-10 ppm	+/-12 ppm	-20 to +75 °C
Q24FA20H0004700	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8.5 pF	+/-15 ppm	+/-15 ppm	-20 to +85 °C
Q24FA20H0005000	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	16 pF	+/-10 ppm	+/-25 ppm	-40 to +85 °C
Q24FA20H0005100	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-15 to +75 °C
Q24FA20H0005200	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0005300	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-20 ppm	+/-20 ppm	-20 to +70 °C
Q24FA20H0005400	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q24FA20H0005900	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	6 pF	+/-10 ppm	+/-12 ppm	-20 to +75 °C
Q24FA20H0006600	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q24FA20H0006900	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm	+/-15 ppm	-30 to +85 °C

如今的2520mm、2016mm、1612mm等小體積SMD晶振成為了他們的福音.雖然近年來中國大陸技臺灣地區的石英晶體振蕩器廠商的崛起,但是技術長沒有起步較早的日本深厚.目前晶振產品在技術開發上的主要趨勢體現在更高的基頻、更好的相位噪聲和相位抖動參數等指標,日本愛普生晶振利用自身的優勢推出了新一代的石英晶體諧振器產品FA-20H系列,從而實現對市場供應的快速響應.龍湖做為EPSON代理商,積極配合新品的推出免費為客戶提供樣品和選型技術指導.

具有差異化的FA-20H石英無源晶振編碼Q24FA20H0004700，愛普生公司從默默無聞的小公司到如今的大規模上市知名企業,一路成長用盡所有心力,才有如今這么偉大的成就,一路成長中所遇到的困難與挫折無數,依然以頑強的成長力努力向上生長,同時在研發產品上,優先考慮到石英晶體諧振器產品性能的差異化,差異化的FA-20H晶振，并以小巧的外形,強大的性能,秒殺市場企業的產品,其最大的核心競爭力在于產品的獨特創新能力,高度的創新,使得其在這個變動極少的晶體行業中,成為最為稀缺的能力之一。

愛普生晶振產品編碼	尺寸	Model	Frequency	CL Value	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range
Q24FA20H0007000	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0007300	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0007400	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10.5 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0007700	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0007900	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	16 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0008500	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0008600	2.5 x 2 x 0.55mm	FA-20H	24.576000 MHz	8 pF	+/-15 ppm	+/-15 ppm	-20 to +75 °C
Q24FA20H0008700	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +70 °C
Q24FA20H0009200	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q24FA20H0009300	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C
Q24FA20H0009500	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	7 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0009700	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0010000	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	20 pF	+/-20 ppm	+/-20 ppm	-20 to +75 °C
Q24FA20H0010600	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0011400	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q24FA20H0011500	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	8 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q24FA20H0011600	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	+/-30 ppm	+/-30 ppm	-30 to +85 °C
Q24FA20H0011800	2.5 x 2 x 0.55mm	FA-20H	27.120000 MHz	18 pF	+/-10 ppm	+/-20 ppm	-20 to +70 °C
Q24FA20H0012200	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-10 ppm	+/-22 ppm	-40 to +85 °C
Q24FA20H0012600	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	15 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C

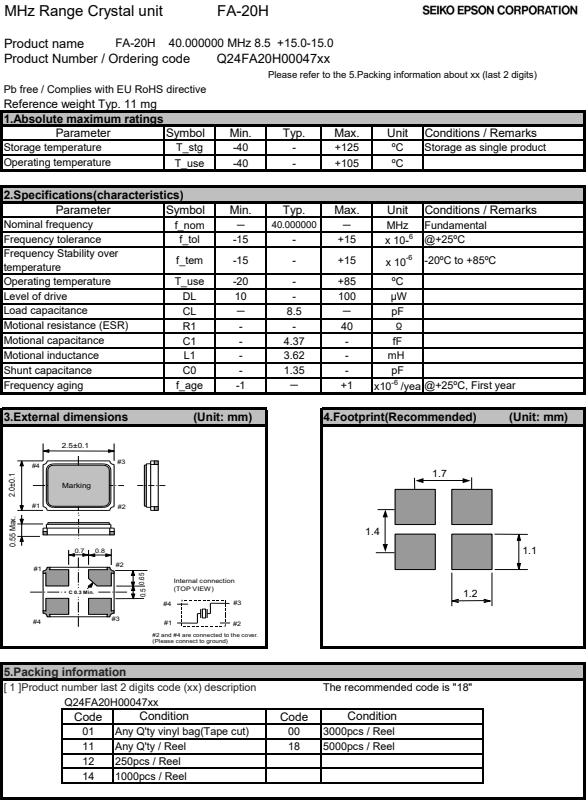

愛普生公司推出的FA-20H晶振，編碼Q24FA20H0004700，這是一款高可靠性能的SMD晶振，無源晶振，頻率范圍:12mhz ~ 54mhz，外形尺寸:2.5× 2.0×0.55 mm，泛音順序:基本音，應用領域:手機，藍牙，無線局域網，ISM波段收音機，MPU時鐘.
