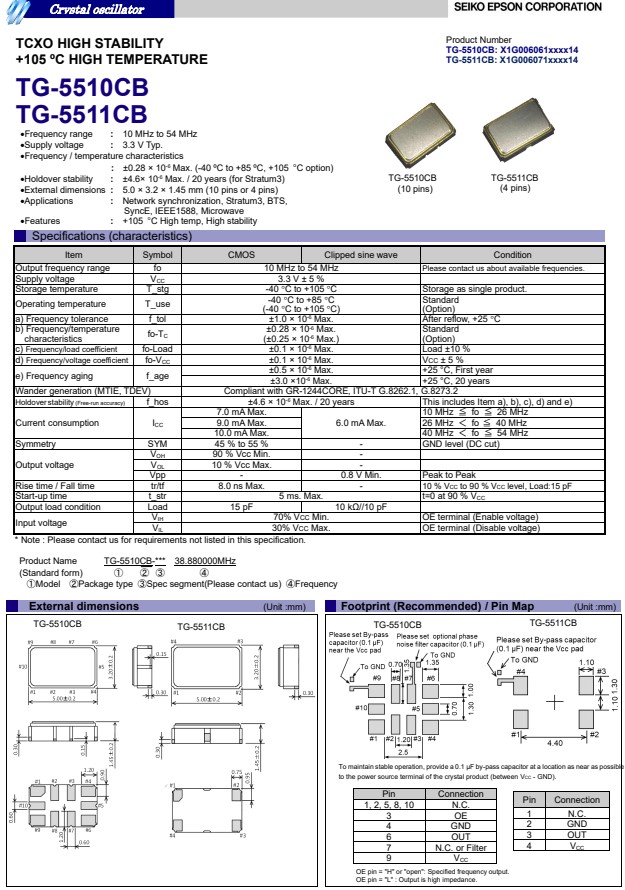

TG-5510CB有源晶振X1G006061009514投影儀專用TCXO溫補晶振，日本知名頻率元器件制造商愛普生公司，成立至今已有幾十年的發展，通過持續放大自身的影響力，并且能夠快速針對市場的需求，開發眾多優質的晶振產品線，所生產出來的產品符合用戶的需求，又經過嚴格化高標準高要求的生產體系制造而成，同時又保障每一款產品的質量以及性能,主要生產產品有石英晶振，有源晶振，石英晶體振蕩器等元器件。
  Product Number00
|
  愛普生溫補晶振
|
  Frequency
|
  LxWxH
|
  Supply Voltage
|
  F.Tol@25°C
|
  Ope Temperature
|
  Freq/Temp
|
| X1G006061007614 | TG-5510CB | 30.720000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061008214 | TG-5510CB | 38.400000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009014 | TG-5510CB | 25.000000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009214 | TG-5510CB | 25.600000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009414 | TG-5510CB | 12.800000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009514 | TG-5510CB | 20.000000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009714 | TG-5510CB | 50.000000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
| X1G006061009814 | TG-5510CB | 10.000000 MHz | 5.00 x 3.20 x 1.50 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C | +/-0.28 ppm |
 X1G005241000200
|
 TG5032SGN
|
 19.200000 MHz
|
 5.00 x 3.20 x 1.45 mm
|
 3.135 to 3.465 V
|
 +/-1.0 ppm
|
 -40 to ++85 °C
|
 +/-0.10 ppm
|
| X1G005241000300 | TG5032SGN | 25.000000 MHz | 5.00 x 3.20 x 1.45 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C | +/-0.10 ppm |
| X1G005241000400 | TG5032SGN | 40.000000 MHz | 5.00 x 3.20 x 1.45 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C | +/-0.10 ppm |
| X1G005241000700 | TG5032SGN | 10.000000 MHz | 5.00 x 3.20 x 1.45 mm | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C | +/-0.10 ppm |
TG-5510CB有源晶振X1G006061009514投影儀專用TCXO溫補晶振，愛普生貼片式石英晶體振蕩器,低電壓啟動功率,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等,產品被廣泛應用于,平板筆記本,GPS系統,光纖通道,千兆以太網,串行ATA,串行連接SCSI,PCI-Express的SDH / SONET發射基站等領域.符合RoHS/無鉛.
