低相位的電子門控制器專用有源晶振X1G005601002600，偉大的愛普生公司從名不經傳的小型公司到如今的聞名企業，這一路上與困難作斗爭的過程是我們無法想象的，只有當經過無數的困難仍然能夠堅持初心，那份美好的初心才是我們追崇的力量源泉，愛普生推出的石英晶振廣受市場的歡迎，同時也贏得廣大用戶的稱贊。

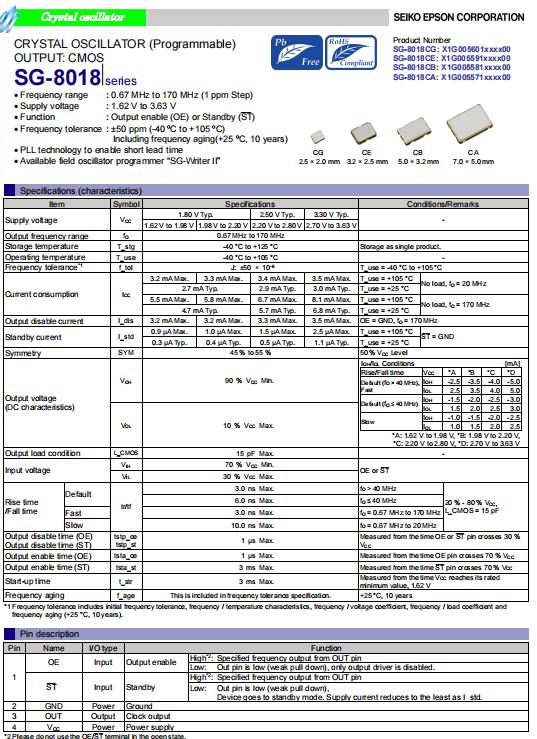

日本愛普生晶振公司推出了SG-8018CG晶振，編碼X1G005601002600，頻率12.000000兆赫，輸出WaveCMOS，電源電壓1.62 ~ 3.63 V，尺寸(LxWxH)2.50 x 2.00 x 0.80 mm，工作溫度-40至+105°C，頻率公差±50ppm，額外的OptionsN /OSC類型可編程時鐘OSC，這是 一款CMOS輸出有源晶振，石英晶體振蕩器，具有良好的穩定性能，十分適合用于電子門控制器，北斗導航，智能家居，電子數碼等行業。
 Product Number
|
 Model
|
 Frequency
|
 OSC晶振 |
 Output Wave
|
 Supply Voltage
|
 Ope Temperature
|
 Freq. Tol.
|
| X1G005601002500 | SG-8018CG | 12.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601002600 | SG-8018CG | 12.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601002700 | SG-8018CG | 10.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601002800 | SG-8018CG | 10.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601002900 | SG-8018CG | 27.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003000 | SG-8018CG | 27.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003100 | SG-8018CG | 32.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003200 | SG-8018CG | 32.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003300 | SG-8018CG | 8.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003400 | SG-8018CG | 8.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003500 | SG-8018CG | 14.745600 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003600 | SG-8018CG | 14.745600 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003700 | SG-8018CG | 12.288000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003800 | SG-8018CG | 12.288000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601003900 | SG-8018CG | 33.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004000 | SG-8018CG | 33.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004100 | SG-8018CG | 30.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004200 | SG-8018CG | 30.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004300 | SG-8018CG | 26.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004400 | SG-8018CG | 26.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004500 | SG-8018CG | 24.576000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
| X1G005601004600 | SG-8018CG | 24.576000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm |
