完美適合納米細胞的溫補晶體振蕩器ECS-TXO53-S3-33-500-BN-TR

來源：龍湖電子查看手機網址

掃一掃!

完美適合納米細胞的溫補晶體振蕩器ECS-TXO53-S3-33-500-BN-TR

掃一掃!

瀏覽：- 發布日期：2023-03-30 09:58:46【大中小】

分享到：

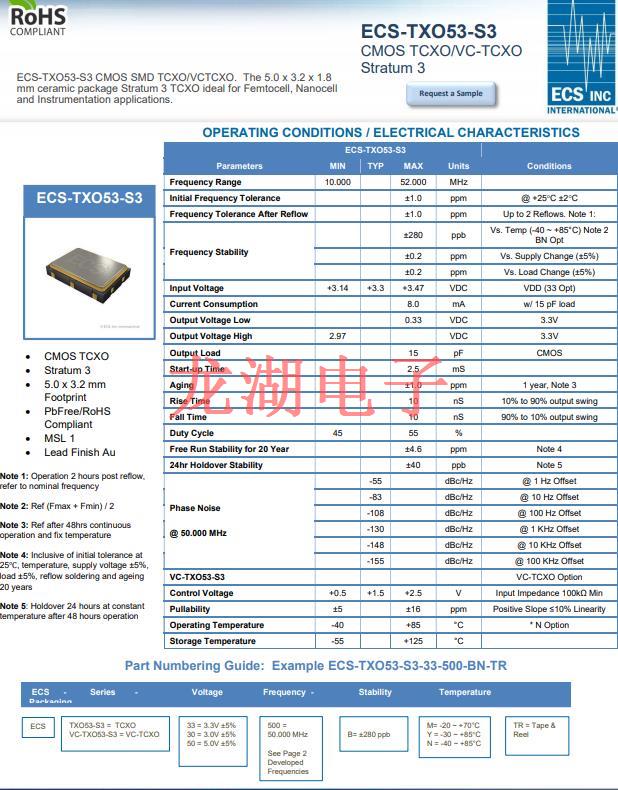

ECS Inc. International’s ECS-TXO53-S3 is a new series of surface mount stratum 3 temperature compensated crystal oscillators. This family of TCXOs comes in a 5.0 mm 3.2 mm x 1.80 mm multi-pad ceramic package that offers a frequency stability of ±280ppb over the standard industrial operating temperature range of -40ºC to +85ºC. With the HCMOS output, multi-pad configurations and standard frequencies between 10 MHz and 52 MHz, the ECS-TXO53-S3 provides excellent phase noise performance. Ideal for femtocell, nanocell and instrumentation applications.

完美適合納米細胞的溫補晶體振蕩器ECS-TXO53-S3-33-500-BN-TR，ECS晶振國際公司的ECS-TXO53-S3是一種新型表面貼裝三層溫補晶體振蕩器系列。該系列tcxo采用5.0 mm 3.2 mm x 1.80 mm多襯墊陶瓷封裝，在-40ºC至+85ºC的標準工業工作溫度范圍內提供±280ppb的頻率穩定性。憑借HCMOS輸出，多襯墊配置和10 MHz至52 MHz之間的標準頻率，ECS-TXO53-S3提供了出色的相位噪聲性能。理想的家庭電池，納米電池和儀器應用。

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Operating Temperature 工作溫度
ECS-2333-080-BN-TR	ECS晶振	ECS-2333	8MHz	-40°C ~ 85°C
ECS-2333-040-BN-TR	ECS晶振	ECS-2333	4MHz	-40°C ~ 85°C
ECS-2333-040-BN-TR	ECS晶振	ECS-2333	4MHz	-40°C ~ 85°C
ECS-2333-040-BN-TR	ECS晶振	ECS-2333	4MHz	-40°C ~ 85°C
ECS-2333-120-BN-TR	ECS晶振	ECS-2333	12MHz	-40°C ~ 85°C
ECS-2333-120-BN-TR	ECS晶振	ECS-2333	12MHz	-40°C ~ 85°C
ECS-2333-120-BN-TR	ECS晶振	ECS-2333	12MHz	-40°C ~ 85°C
ECS-3953M-200-B-TR	ECS晶振	ECS-3953M	20MHz	-10°C ~ 70°C
ECS-3953M-200-B-TR	ECS晶振	ECS-3953M	20MHz	-10°C ~ 70°C
ECS-3953M-200-B-TR	ECS晶振	ECS-3953M	20MHz	-10°C ~ 70°C
ECS-3953M-160-B-TR	ECS晶振	ECS-3953M	16MHz	-10°C ~ 70°C
ECS-3953M-160-B-TR	ECS晶振	ECS-3953M	16MHz	-10°C ~ 70°C
ECS-3953M-160-B-TR	ECS晶振	ECS-3953M	16MHz	-10°C ~ 70°C
ECS-3953M-018-B-TR	ECS晶振	ECS-3953M	1.8432MHz	-10°C ~ 70°C
ECS-3953M-018-B-TR	ECS晶振	ECS-3953M	1.8432MHz	-10°C ~ 70°C
ECS-3953M-018-B-TR	ECS溫度補償晶振	ECS-3953M	1.8432MHz	-10°C ~ 70°C
ECS-3953M-040-B-TR	ECS晶振	ECS-3953M	4MHz	-10°C ~ 70°C
ECS-3953M-040-B-TR	ECS晶振	ECS-3953M	4MHz	-10°C ~ 70°C
ECS-3953M-040-B-TR	ECS晶振	ECS-3953M	4MHz	-10°C ~ 70°C
ECS-3953M-036-B-TR	ECS晶振	ECS-3953M	3.6864MHz	-10°C ~ 70°C
ECS-3953M-036-B-TR	ECS晶振	ECS-3953M	3.6864MHz	-10°C ~ 70°C
ECS-3953M-036-B-TR	ECS晶振	ECS-3953M	3.6864MHz	-10°C ~ 70°C
ECS-3953M-120-B-TR	ECS晶振	ECS-3953M	12MHz	-10°C ~ 70°C
ECS-3953M-120-B-TR	ECS晶振	ECS-3953M	12MHz	-10°C ~ 70°C

Image	Part Number	Frequency	Frequency Stability	Operating Temperature	Datasheet	Inventory
	ECS-TXO53-S3-33-100-BN-TR	10 MHz	±280ppb	-40ºC ~ 85ºC
	ECS-TXO53-S3-33-200-BN-TR	20 MHz	±280ppb	-40ºC ~ 85ºC
	ECS-TXO53-S3-33-250-BN-TR	25 MHz	±280ppb	-40ºC ~ 85ºC
	ECS-TXO53-S3-33-400-BN-TR	40 MHz	±280ppb	-40ºC ~ 85ºC
	ECS-TXO53-S3-33-500-BN-TR	50 MHz	±280ppb	-40ºC ~ 85ºC

特點：占地面積5.0mm x 3.2 mm x1.80mm，頻率范圍:10mhz~52mhz，±280ppb超溫頻率穩定性，標準工作溫度范圍-40ºC~ +85ºC，+3.3V電源電壓，HCMOS輸出層3，符合RoHS和REACH 3標準.5032mm的貼片型有源晶振Stratum 3 TCXO是Femtocell, nanocer的理想選擇儀表應用。

完美適合納米細胞的溫補晶體振蕩器ECS-TXO53-S3-33-500-BN-TR，ECS有源振蕩器應用范圍：毫微微蜂窩，納米細胞，儀表，測試和測量，基站，SyncE，IP網絡，全球定位系統(GPS)，點對點無線電，背負式無線電.
