頻率：48MHZ
尺寸：5.0x3.2mm
SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶體,5032mm,韓國進口晶振,三呢晶體諧振器,SMD晶振,石英無源晶振,48MHZ輕薄型晶振,5032mm貼片晶體,石英振動子,四腳貼片晶振,石英晶振,尺寸5.0x3.2mm,頻率為48MHZ,無鉛晶振,高頻晶振,高性能晶振,智能手機晶振,視聽設備晶振,測試測量晶振,儀器儀表晶振,小型設備晶振.
SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶體,5032mm特點:
接縫密封,卓越的可焊性
石英晶體卓越的抗振性和抗沖擊性,高頻穩定性
出色的熱滯后,TTS-16949認證
無鉛和RoHS合規,AAEC-Q200合格

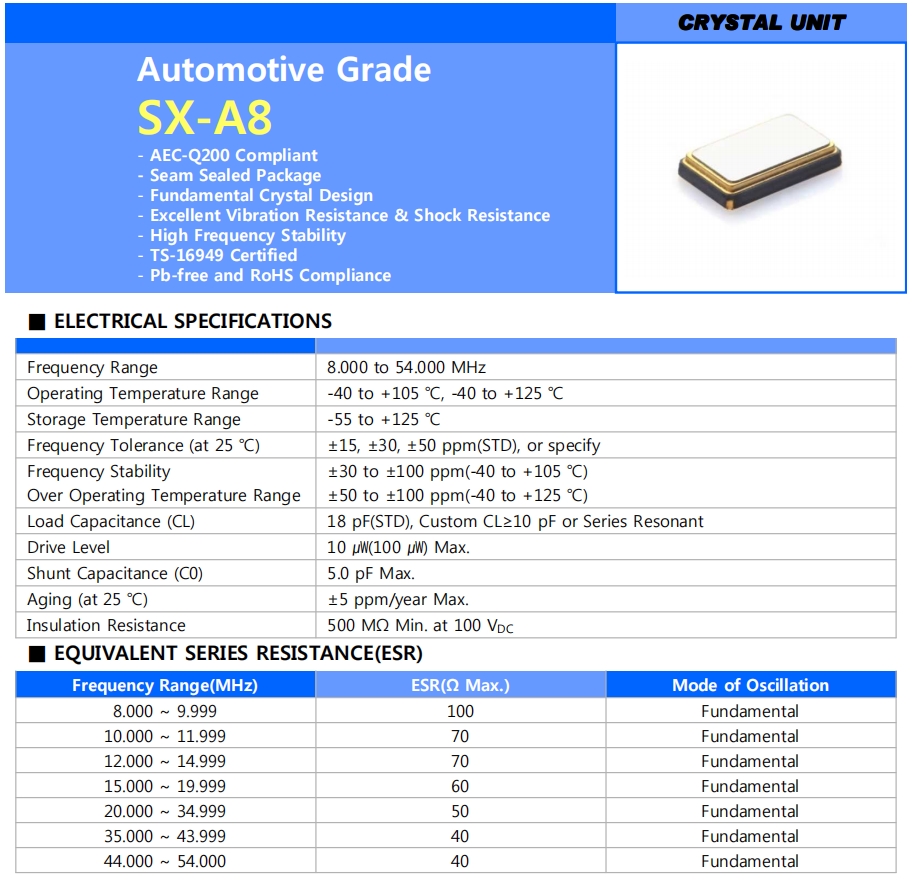

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶體,5032mm 參數表
| Frequency Range | 48.000 MHz | |||||||||||||||||||
| Operating Temperature Range | -40 to +105 ℃, -40 to +125 ℃ | |||||||||||||||||||
| Storage Temperature Range | -55 to +125 ℃ | |||||||||||||||||||
| Frequency Tolerance (at 25 ℃) | ±15, ±30, ±50 ppm(STD), or specify | |||||||||||||||||||
|
Frequency Stability Over Operating Temperature Range |
±30 to ±100 ppm(-40 to +105 ℃) ±50 to ±100 ppm(-40 to +125 ℃) |
|||||||||||||||||||
| Load Capacitance (CL) | 18 pF(STD), Custom CL≥10 pF or Series Resonant | |||||||||||||||||||
| Drive Level | 10 μw(100 μw) Max. | |||||||||||||||||||
| Shunt Capacitance (C0) | 5.0 pF Max. | |||||||||||||||||||
| Aging (at 25 ℃) | ±5 ppm/year Max. | |||||||||||||||||||
| Insulation Resistance | 500 MΩ Min. at 100 VDC | |||||||||||||||||||

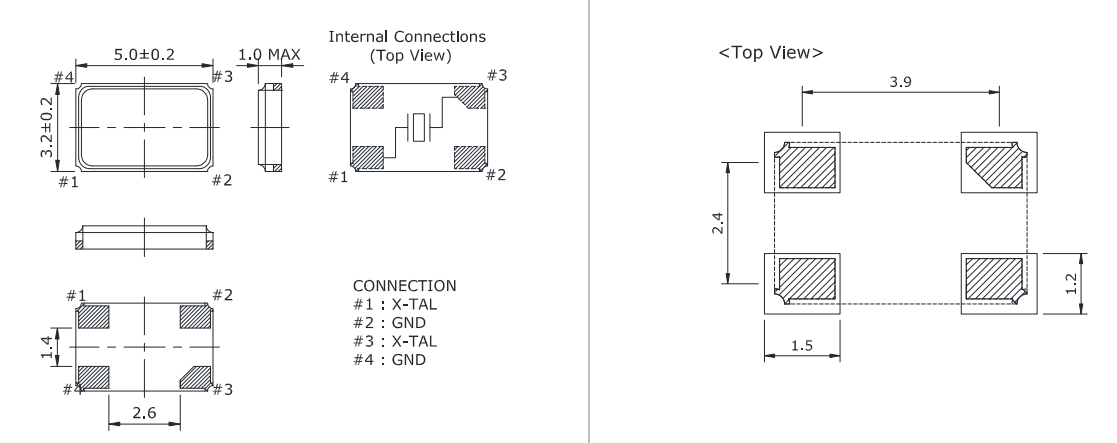

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶體,5032mm 尺寸圖
