頻率：8~240MHZ
尺寸：6.0x3.5mm
Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振,石英通無源晶體,瑞士進口晶振,石英晶體諧振器,無源貼片晶振,QuartzcomCrystal,SMD晶體,無源石英晶體,6035mm小體積晶振,四腳貼片晶振,尺寸6.0x3.5mm,頻率范圍8~240MHZ,高頻晶振,高性能晶振,高質量晶振,低損耗晶振,數字音頻晶振,電信設備晶振,導航定位晶振,汽車音響晶振.
Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振特點:
寬頻率范圍：8至240MHz石英晶振
高沖擊和振動電阻率
回流焊@260°C

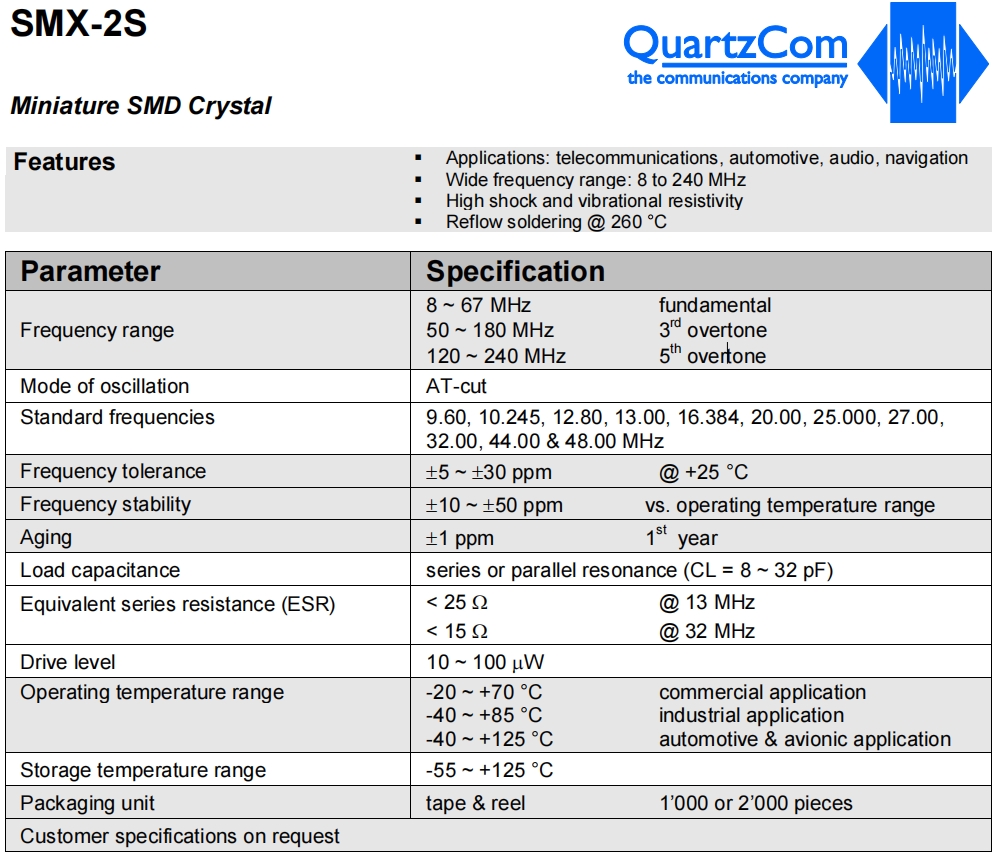

Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振 參數表
| Parameter | Specification | ||||||||
| Frequency range |
8 ~ 67 MHz 50 ~ 180 MHz 120 ~ 240 MHz |
fundamental 3rd overtone 5th overtone |
|||||||
| Mode of oscillation | AT-cut | ||||||||
| Standard frequencies |
9.60, 10.245, 12.80, 13.00, 16.384, 20.00, 25.000, 27.00, 32.00, 44.00 & 48.00 MHz |
||||||||
| Frequency tolerance | 土5 ~ 土30 ppm @ +25 °C | ||||||||
| Frequency stability | 土10 ~ 土50 ppm vs. operating temperature range | ||||||||
| Aging | 土1 ppm | 1st | year | ||||||
| Load capacitance | series or parallel resonance (CL = 8 ~ 32 pF) | ||||||||
| Equivalent series resistance (ESR) |
< 25 Ω < 15 Ω |
@ 13 MHz @ 32 MHz |
|||||||
| Drive level | 10 ~ 100 μW | ||||||||
| Operating temperature range |
-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C |
commercial application industrial application automotive & avionic application |
|||||||
| Storage temperature range | -55 ~ +125 °C | ||||||||
| Packaging unit | tape & reel 1’000 or 2’000 pieces | ||||||||
| Customer specifications on request | |||||||||

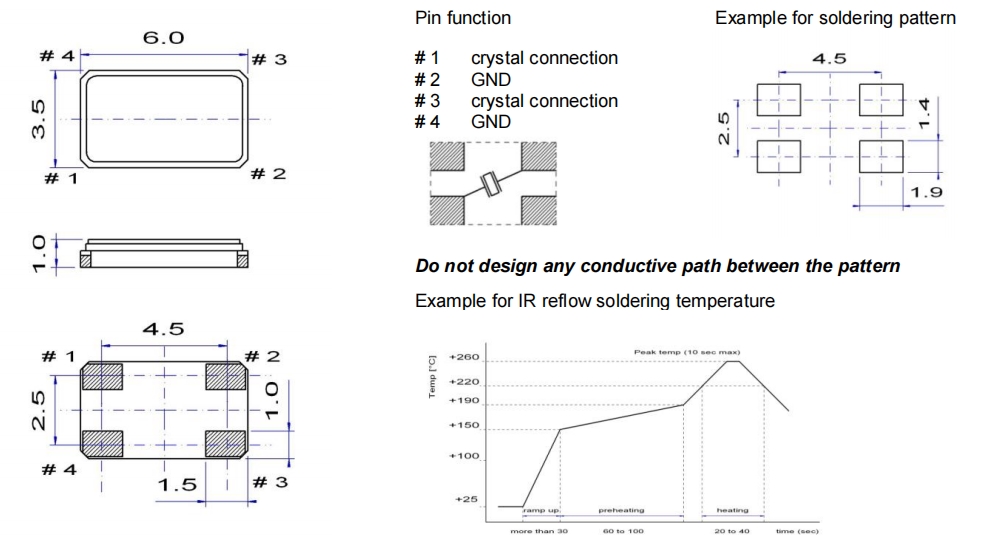

Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振 尺寸圖
