美國QVS晶振,QPM25A-2XDF12.5-32.768KHz,6G模塊專用晶體

頻率：32.768KHZ

尺寸：8.0*3.8mm

美國QVS晶振,QPM25A-2XDF12.5-32.768KHz,6G模塊專用晶體，尺寸為8.0*3.8mm，頻率為32.768KHZ，負載電容12.5pF，無源貼片晶振，陶瓷諧振器，無源晶體，進口音叉晶振，8038mm陶瓷晶振，32.768KHZ貼片晶振，時鐘晶體，四腳貼片晶振，藍牙應用貼片晶振，無線網絡專用晶體，鐘表專用貼片晶振，低損耗無源晶振，高質量貼片晶振，高性能無源晶振，產品具有輕薄型低損耗的特點。

SMD晶體產品非常適合用于鐘表應用，藍牙音響，無線網絡，儀器儀器，物聯網，數碼電子，數字視頻等領域.美國QVS晶振,QPM25A-2XDF12.5-32.768KHz,6G模塊專用晶體.

訂購熱線：0755-29952551

LH-1

LH-2

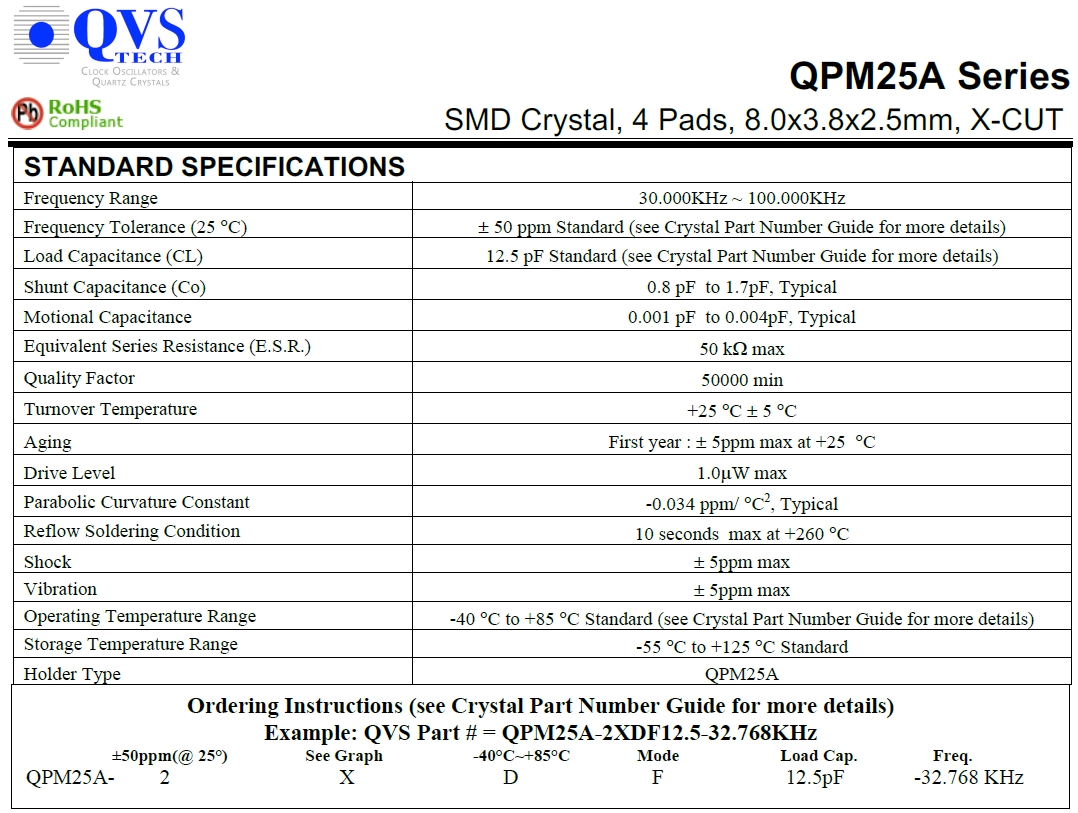

美國QVS晶振,QPM25A-2XDF12.5-32.768KHz,6G模塊專用晶體 參數表

STANDARD SPECIFICATIONS

Frequency Range 32.768KHz

Frequency Tolerance (25 。C) ± 50 ppm Standard (see Crystal Part Number Guide for more details)

Load Capacitance (CL) 12.5 pF Standard (see Crystal Part Number Guide for more details)

Shunt Capacitance (Co) 0.8 pF to 1.7pF, Typical

Motional Capacitance 0.001 pF to 0.004pF, Typical

Equivalent Series Resistance (E.S.R.) 50 kΩ max

Quality Factor 50000 min

Turnover Temperature +25 。C ± 5 。C

Aging First year : ± 5ppm max at +25 。C

Drive Level 1.0μW max

Parabolic Curvature Constant -0.034 ppm/ 。C2, Typical

Reflow Soldering Condition 10 seconds max at +260 。C

Shock ± 5ppm max

Vibration ± 5ppm max

Operating Temperature Range -40 to +85度 Standard (see Crystal Part Number Guide for more details)

Storage Temperature Range -55 to +125度 Standard

Holder Type QPM25A

美國QVS晶振,QPM25A-2XDF12.5-32.768KHz,6G模塊專用晶體 尺寸圖
