頻率：10 MHz

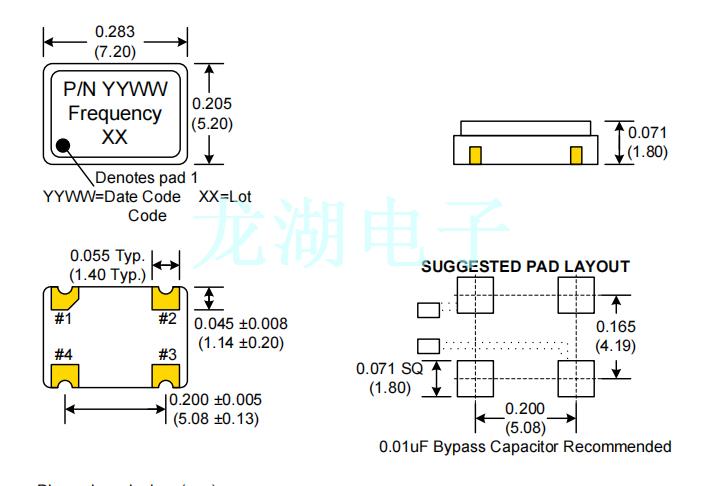

尺寸：7.0mm*5.0mm
C3290-10.000,瑞斯克電子,5V晶振,石英晶振,有源晶振,帶電壓晶振,四腳貼片晶振,高端電子產品晶振,編碼 C3290-10.000,頻率10MHz,精度5V,精度100ppm,較好的耐熱在70度的環境還能正常為產品運行,無人機晶振,智能攝像頭晶振,北斗衛星晶振,飛機晶振,筆記本電腦晶振
C3290-10.000,瑞斯克電子,5V晶振,石英晶振
原廠編碼
C3290-10.000
頻率
10MHz
廠家
瑞斯克晶振
型號
C3290
頻率偏差
±100ppm
電壓
5v
工作溫度
0°C至70°C
尺寸
7.0*5.0mm
| Mfr Part # | Mfr | Series | Frequency | Voltage - Supply | Frequency Stability |
| C3290-1.544 | 瑞斯克 | C3290 | 1.544 MHz | 5V | ±100ppm |
| C3290-1.843200 | 瑞斯克 | C3290 | 1.8432 MHz | 5V | ±100ppm |
| C3290-10.000 | 瑞斯克 | C3290 | 10 MHz | 5V | ±100ppm |
| C3290-12.000 | 瑞斯克 | C3290 | 12 MHz | 5V | ±100ppm |
| C3290-12.288 | 瑞斯克 | C3290 | 12.288 MHz | 5V | ±100ppm |
| C3290-12.352 | 瑞斯克 | C3290 | 12.352 MHz | 5V | ±100ppm |
| C3290-14.318180 | 瑞斯克 | C3290 | 14.31818 MHz | 5V | ±100ppm |
| C3290-15.360 | 瑞斯克晶振 | C3290 | 15.36 MHz | 5V | ±100ppm |
| C3290-16.000 | 瑞斯克 | C3290 | 16 MHz | 5V | ±100ppm |
| C3290-16.384 | 瑞斯克 | C3290 | 16.384 MHz | 5V | ±100ppm |
| C3290-18.432 | 瑞斯克 | C3290 | 18.432 MHz | 5V | ±100ppm |
| C3290-19.440 | 瑞斯克 | C3290 | 19.44 MHz | 5V | ±100ppm |
| C3290-2.048 | 瑞斯克 | C3290 | 2.048 MHz | 5V | ±100ppm |
| C3290-20.000 | 瑞斯克 | C3290 | 20 MHz | 5V | ±100ppm |
| C3290-20.480 | 瑞斯克 | C3290 | 20.48 MHz | 5V | ±100ppm |
| C3290-24.000 | 瑞斯克 | C3290 | 24 MHz | 5V | ±100ppm |
| C3290-24.704 | 瑞斯克 | C3290 | 24.704 MHz | 5V | ±100ppm |
| C3290-25.000 | 瑞斯克 | C3290 | 25 MHz | 5V | ±100ppm |
| C3290-3.686400 | 瑞斯克 | C3290 | 3.6864 MHz | 5V | ±100ppm |
| C3290-30.000 | 瑞斯克 | C3290 | 30 MHz | 5V | ±100ppm |
| C3290-32.000 | 瑞斯克 | C3290 | 32 MHz | 5V | ±100ppm |
| C3290-32.768 | 瑞斯克 | C3290 | 32.768 MHz | 5V | ±100ppm |
| C3290-33.000 | 瑞斯克 | C3290 | 33 MHz | 5V | ±100ppm |
| C3290-33.333 | 瑞斯克 | C3290 | 33.333 MHz | 5V | ±100ppm |
| C3290-35.000 | 瑞斯克 | C3290 | 35 MHz | 5V | ±100ppm |
| C3290-4.000 | 瑞斯克 | C3290 | 4 MHz | 5V | ±100ppm |
| C3290-40.000 | 瑞斯克 | C3290 | 40 MHz | 5V | ±100ppm |
| C3290-44.736 | 瑞斯克 | C3290 | 44.736 MHz | 5V | ±100ppm |
| C3290-45.000 | 瑞斯克 | C3290 | 45 MHz | 5V | ±100ppm |
| C3290-49.152 | 瑞斯克 | C3290 | 49.152 MHz | 5V | ±100ppm |
| C3290-50.000 | 瑞斯克 | C3290 | 50 MHz | 5V | ±100ppm |
| C3290-51.840 | 瑞斯克 | C3290 | 51.84 MHz | 5V | ±100ppm |
| C3290-6.176 | 瑞斯克 | C3290 | 6.176 MHz | 5V | ±100ppm |
| C3290-7.372800 | 瑞斯克 | C3290 | 7.3728 MHz | 5V | ±100ppm |
| C3290-8.000 | 瑞斯克 | C3290 | 8 MHz | 5V | ±100ppm |
| C3290-60.000 | 瑞斯克 | C3290 | 60 MHz | 5V | ±100ppm |
| C3290-64.000 | 瑞斯克 | C3290 | 64 MHz | 5V | ±100ppm |
| C3290-66.666600 | 瑞斯克 | C3290 | 66.6666 MHz | 5V | ±100ppm |
| C3290-75.000 | 瑞斯克 | C3290 | 75 MHz | 5V | ±100ppm |
| C3290-80.000 | 瑞斯克 | C3290 | 80 MHz | 5V | ±100ppm |
| CE3290-1.544 | 瑞斯克 | C3290 | 1.544 MHz | 5V | ±100ppm |
| CE3290-1.843200 | 瑞斯克 | C3290 | 1.8432 MHz | 5V | ±100ppm |
| CE3290-10.000 | 瑞斯克 | C3290 | 10 MHz | 5V | ±100ppm |
| CE3290-12.000 | 瑞斯克 | C3290 | 12 MHz | 5V | ±100ppm |
| CE3290-12.288 | 瑞斯克 | C3290 | 12.288 MHz | 5V | ±100ppm |
| CE3290-12.352 | 瑞斯克 | C3290 | 12.352 MHz | 5V | ±100ppm |
| CE3290-14.318180 | 瑞斯克 | C3290 | 14.31818 MHz | 5V | ±100ppm |
