X1G0059210001,SG2520EHN差分輸出晶振,EPSON晶振,6G放大器晶振

頻率：156.25MHZ

尺寸：2.5*2.0mm

X1G0059210001,SG2520EHN差分輸出晶振,EPSON晶振,6G放大器晶振，尺寸為2.5*2.0mm，頻率為156.25MHZ，輸出邏輯LV-PECL，LV-PECL差分輸出晶振，LV-PECL差分晶體振蕩器，低耗能差分晶振，OSC差分晶振，差分貼片晶振，低電壓差分晶振，低抖動差分振蕩器，光通信模塊差分晶振，6G將使網絡通信流量呈指數級增長。6G通信網絡要求高速寬頻帶，同時把噪音降到最低。這可以通過高頻率，用于通信設備的低抖動參考時鐘。光通信模塊為400gbps /800gbps傳輸超過80公里需要一個小的外形因素，±20 × 10-6的穩定性參考時鐘。

SG2016EHN/SG2520EHN是非常受歡迎的SG3225EEN系列的下一代產品具有廣泛的可用頻率范圍，低抖動和改進的頻率容限的功能組合由于在更小的封裝中使用了帶有溫度補償的內部設計IC，因此性能更好。差分晶振產品很適合用于網絡設備(路由器、交換機、光模塊等)，數據中心，測試和測量設備，工廠自動化，高速轉換器(ADC和DAC)等領域。X1G0059210001,SG2520EHN差分輸出晶振,EPSON晶振,6G放大器晶振.

訂購熱線：0755-29952551

LH-1

LH-2

X1G0059210001,SG2520EHN差分輸出晶振,EPSON晶振,6G放大器晶振 參數表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.3

4.0

Input voltage

Vin

-0.3

VCC + 0.5

OE/ terminal

Storage temperature range

T_stg

-55

+125

°C

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

°C

Suffix: G

-40

+25

+105

°C

Suffix: H

ECL load condition

L_ECL

Terminated to VCC - 2.0 V

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

156.25

MHz

Frequency tolerance *2

f_tol

-20

+20

×10-6

Suffix: C

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 % VCC
Current consumption	ICC	-	-	60	mA
Disable current	I_dis	-	-	35	mA	OE = GND
Stand-by current	I_std	-	-	30	μA	= GND, T_use Max. = +85 °C
		-	-	60	μA	= GND, T_use Max. = +105 °C
Rise time / Fall time	tr / tf	-	-	0.35	ns	20 % - 80 % of (VOH - VOL)
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOH	VCC - 1.1	-	-	V	DC characteristics
	VOL	-	-	VCC - 1.5	V
Differential swing	VSW	800	-	2 000	mV
Input voltage	VIH	70 % VCC	-	-	V	OE/ terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	Measured from the time OE pin crosses 30 % VCC
Output disable time (ST)	tstp_st	-	-	100	ns	Measured from the time pin crosses 30 % VCC
Output enable time (OE)	tsta_oe	-	-	500	ns	Measured from the time OE pin crosses 70 % VCC
Output enable time (ST)	tsta_st	-	-	10	ms	Measured from the time pin crosses 70 % VCC
Phase jitter Offset frequency fo < 50 MHz: 12 kHz to 5 MHz fo ≥ 50 MHz: 12 kHz to 20 MHz	tPJ	-	-	250	fs	fo < 100 MHz
		-	-	90	fs	100 MHz ≤ fo ≤ 156 MHz
		-	-	70	fs	156 MHz < fo ≤ 212 MHz
		-	-	60	fs	212 MHz < fo ≤ 391 MHz
		-	-	50	fs	fo > 391 MHz

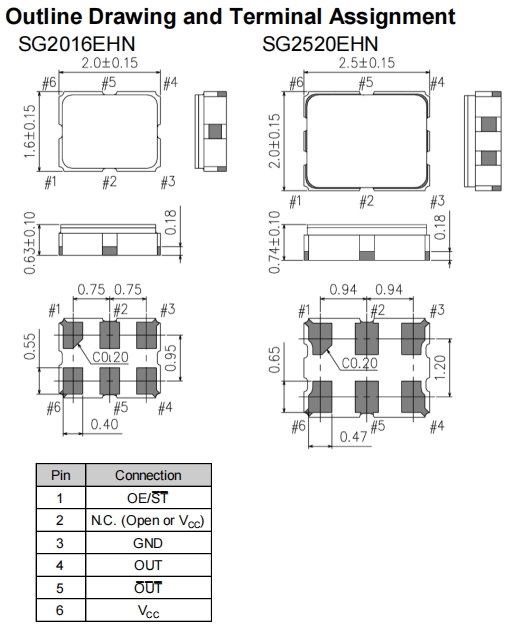

X1G0059210001,SG2520EHN差分輸出晶振,EPSON晶振,6G放大器晶振 尺寸圖

產品特性：

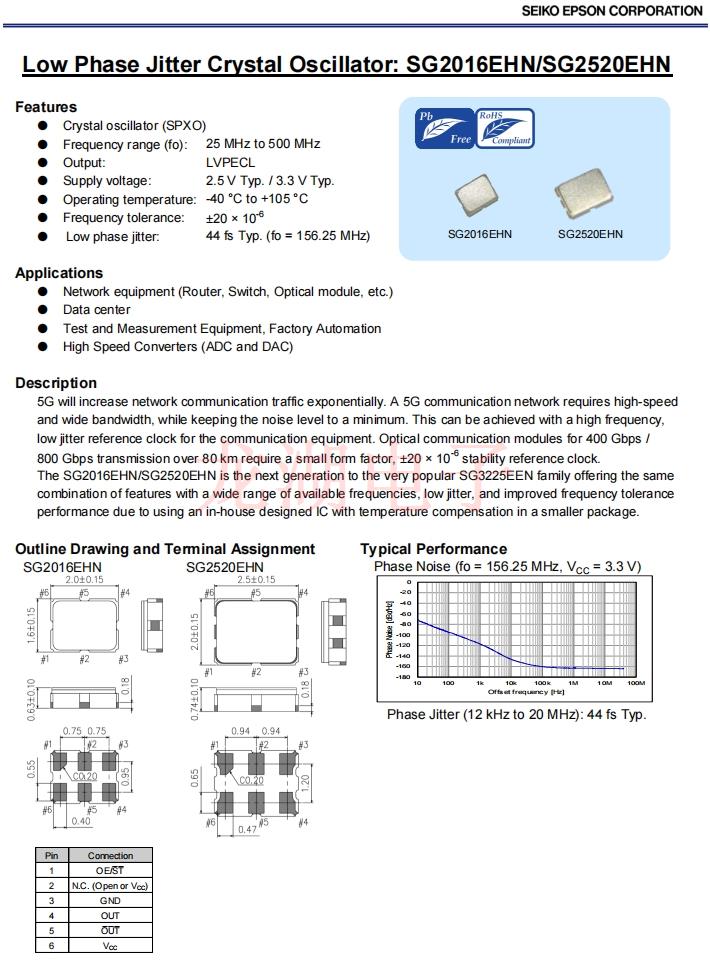

石英晶體振蕩器(SPXO)

頻率范圍(fo): 25MHz至500MHz

輸出:LVPECL

供電電壓:2.5 V。/ 3.3 V類型

工作溫度:-40℃~ +105℃

頻率公差:±20 ×10-6

低相位抖動:44 fs(fo =156.25MHz)
