EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005

頻率：125MHZ

尺寸：3.2*2.5mm

EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005，尺寸為3.2*2.5mm,頻率為125MHZ,輸出邏輯HCSL，差分晶體振蕩器，進口有源差分晶振，OSC差分晶振，HCSL差分輸出晶振，交換機差分振蕩器，低電壓差分晶振，低相位差分振蕩器，低抖動差分晶振，6G放大器差分晶振，6G模塊差分振蕩器，通信產品差分晶振，125MHZ差分晶振，產品具備高質量低抖動低電壓的特點。

差分貼片晶振是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL，HCSL具有低電平,低抖動，低功耗，低功耗等特性。EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005.

訂購熱線：0755-29952551

LH-1

LH-2

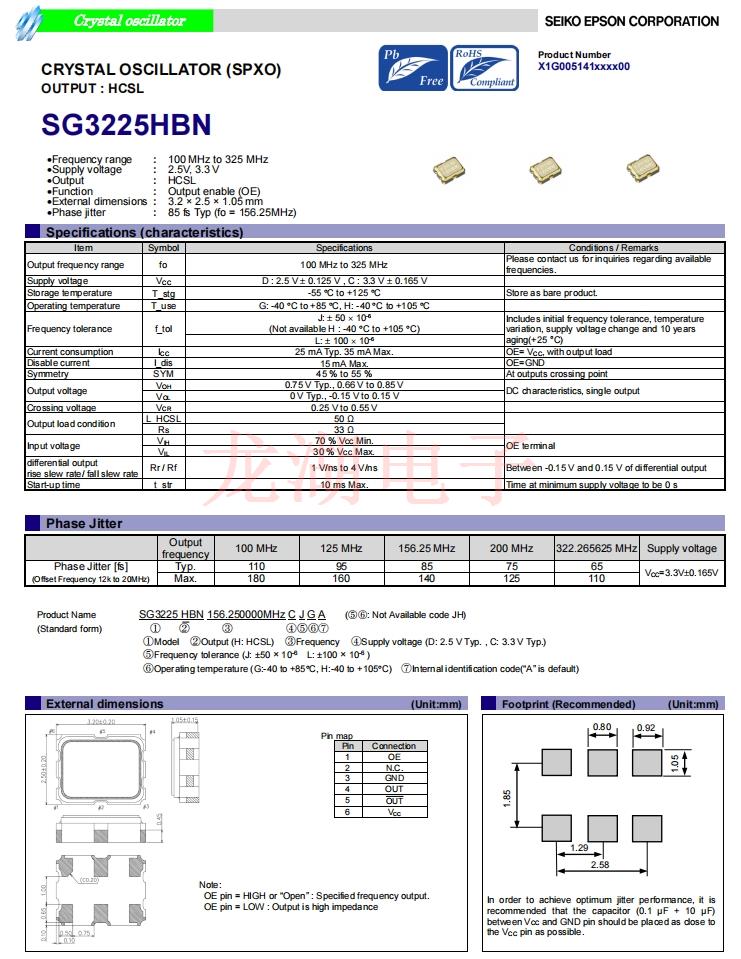

EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005 參數表

Specifications (characteristics)

Item

Symbol

Specifications

Conditions / Remarks

Output frequency range

125MHz

Please contact us for inquiries regarding available
frequencies.

Supply voltage

VCC

D : 2.5 V ± 0.125 V , C : 3.3 V ± 0.165 V

Storage temperature

T_stg

-55 °C to +125 °C

Store as bare product.

Operating temperature

T_use

G: -40 °C to +85 °C , H: -40 °C to +105 °C

Frequency tolerance

f_tol

J: ± 50 × 10-6
(Not available H : -40 °C to +105 °C)

Includes initial frequency tolerance, temperature
variation, supply voltage change and 10 years
aging(+25 °C)

L: ± 100 × 10-6

Current consumption

ICC

25 mATyp. 35 mA Max.

OE= VCC, with output load

Disable current

I_dis

15 mA Max.

OE=GND

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage

VOH

0.75 V Typ., 0.66 V to 0.85 V

DC characteristics, single output

VOL

0 V Typ., -0.15 V to 0.15 V

Crossing voltage

VCR

0.25 V to 0.55 V

Output load condition

L_HCSL

50 Ω

33 Ω

Input voltage

VIH

70 % VCC Min.

OE terminal

VIL

30 % VCC Max.

differential output
rise slew rate/ fall slew rate

Rr / Rf

1 V/ns to 4 V/ns

Between -0.15 V and 0.15 V of differential output

Start-up time

t_str

10 ms Max.

Time at minimum supply voltage to be 0 s

Phase Jitter

Output
frequency

100 MHz

125 MHz

156.25 MHz

200 MHz

322.265625 MHz

Supply voltage

Phase Jitter [fs]
(Offset Frequency 12k to 20MHz)

Typ.

110

VCC=3.3V±0.165V

Max.

180

160

140

125

110

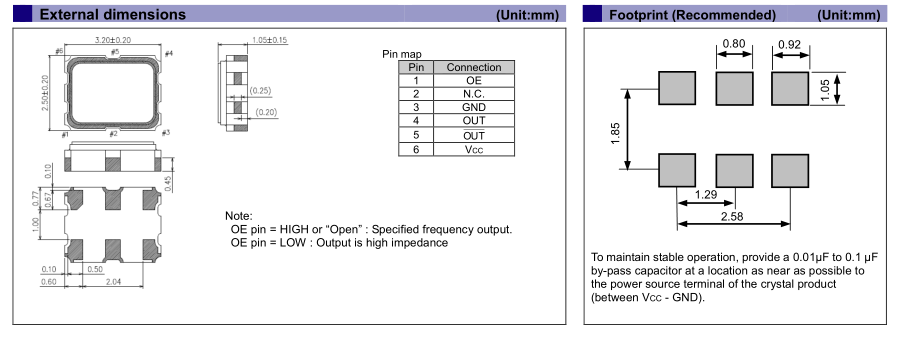

EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005 尺寸圖

有源晶振產品特性：

頻率范圍:100mhz至325mhz

電源電壓:2.5V, 3.3 V

輸出:HCSL

功能:輸出使能(OE)

外部尺寸:3.2×2.5×1.05mm

相位抖動:85 fs類型(fo = 156.25MHz)
