頻率：12.288MHZ
尺寸：3.2x2.5mm
NDK藍牙耳機晶振,NX3225GA-12.288MHz-STD-CRG-2,NX3225GA無源晶體 參數表

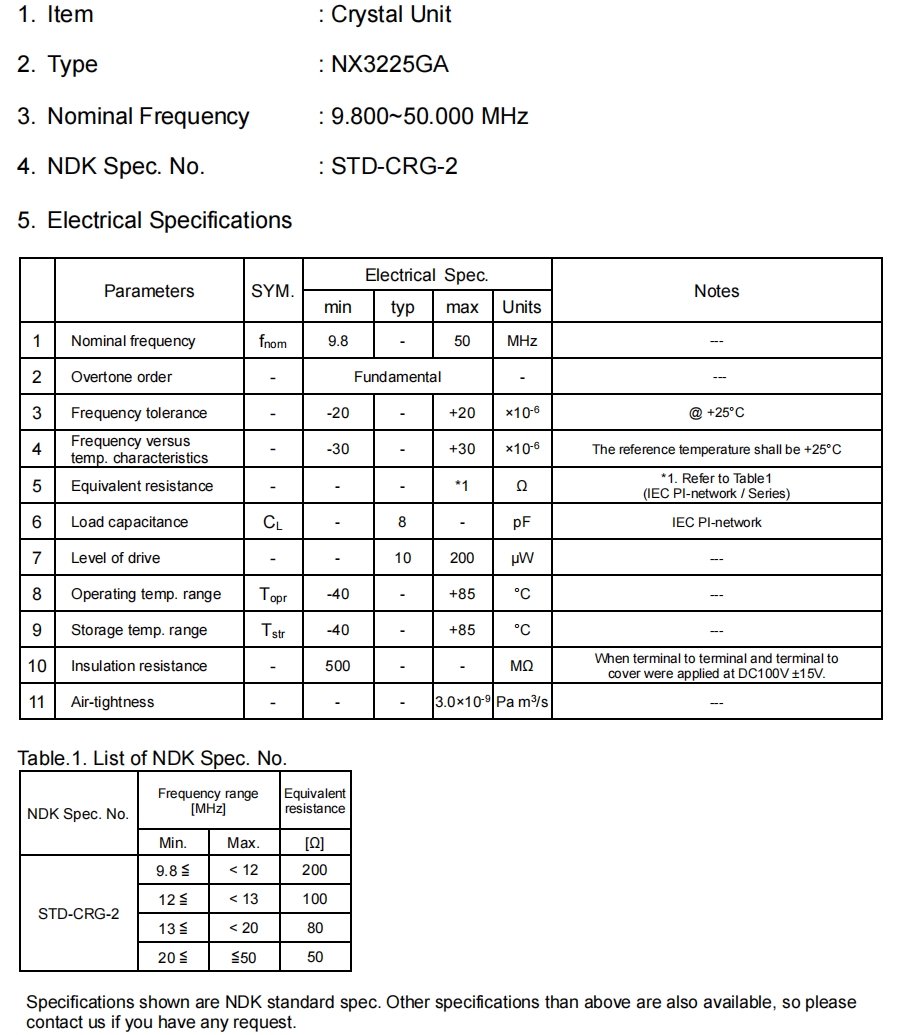

| Parameters | SYM. | Electrical Spec. | Notes | ||||||||||||||
| min | typ | max | Units | ||||||||||||||
| Nominal frequency | fnom |
|
12.288 |
|
MHz | --- | |||||||||||
| Overtone order | - | Fundamental | - | --- | |||||||||||||
| Frequency tolerance | - | -20 | - | +20 | ×10-6 | @ +25°C | |||||||||||
|
Frequency versus temp. characteristics |
- | -30 | - | +30 | ×10-6 | The reference temperature shall be +25°C | |||||||||||
| Equivalent resistance | - | - | - | *1 | Ω |
*1. Refer to Table1 (IEC PI-network / Series) |
|||||||||||
| Load capacitance | CL | - | 8 | - | pF | IEC PI-network | |||||||||||
| Level of drive | - | - | 10 | 200 | µW | --- | |||||||||||
| Operating temp. range | Topr | -40 | - | +85 | °C | --- | |||||||||||
| Storage temp. range | Tstr | -40 | - | +85 | °C | --- | |||||||||||
| Insulation resistance | - | 500 | - | - | M Ω |
When terminal to terminal and terminal to cover were applied at DC100V ±15V. |
|||||||||||
| Air-tightness | - | - | - | 3.0×10-9 | Pa m3/s | --- | |||||||||||

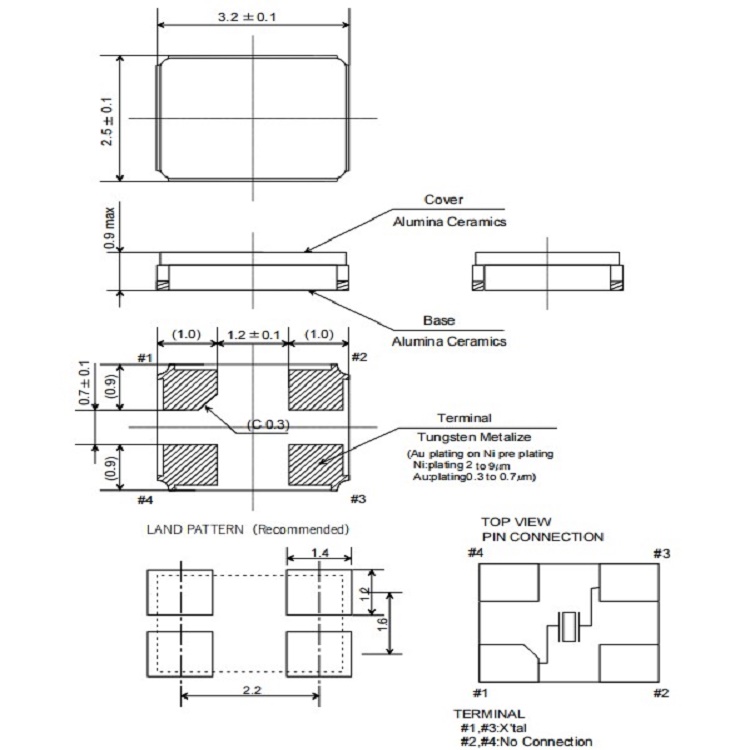

NDK藍牙耳機晶振,NX3225GA-12.288MHz-STD-CRG-2,NX3225GA無源晶體 尺寸圖
NDK藍牙耳機晶振,NX3225GA-12.288MHz-STD-CRG-2,NX3225GA無源晶體

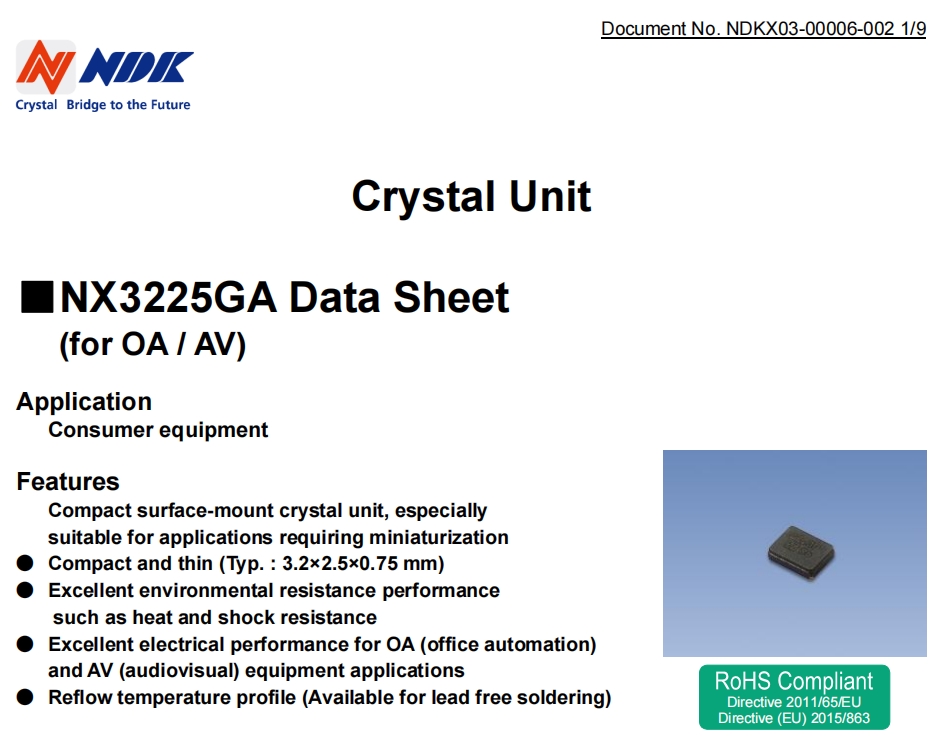

諧振器產品特點:
緊湊型表面貼裝型晶體單元，特別適合要求小型化的應用
回流溫度曲線(適用于無鉛焊接)
| Model | Nominal frequency[MHz] | Specification number | Package size(LxW)[mm] | Operating temperature rang[℃] | Storage temperature range[℃] | Frequency tolerance[ppm] |
| NX3225SA | 24 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 | ±15 |
| NX3225SA | 25 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 | ±15 |
| NX3225SA | 40 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 | ±15 |
| NX3225SA | 48 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 | ±15 |
| NX3225SA | 48 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 | ±15 |
| NX3225GA | 9.844 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 10 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 10.245 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 10.666 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 11.059 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 11.29 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 11.666 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 11.853 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 12 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 12.166 | STD-CRG-2 | 3.2×2.5 SMD無源晶體 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 12.288 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 12.5 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 12.58 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 12.8 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.08 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.081 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.107 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.226 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.226 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.253 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.29 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.5 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.521 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.529 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.559 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 13.56 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 14.318 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 14.318 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 14.4 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 14.745 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 14.746 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 15.36 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 15.97 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 15.974 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 15.974 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 16 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 16.384 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 16.667 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 16.667 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 16.67 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 16.757 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 16.92 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 16.934 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 18 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 18.08 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 18.37 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 18.37 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 18.432 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 19.2 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 19.661 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 20 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 21.949 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 22.481 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 22.579 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 22.579 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 24 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 24.305 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 24.54 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 24.545 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 24.545 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 24.545 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 24.545 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 24.576 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 25 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 25.4 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 25.805 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 26 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
| NX3225GA | 26.998 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 | ±20 |
