頻率：16MHZ
尺寸：5.0x3.2mm
CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1，尺寸5.0x3.2mm，頻率16MHZ，日本京瓷晶體，日本進口晶振，進口無源晶振，陶瓷諧振器，無源晶振，SMD晶振，無源陶瓷晶振，陶瓷晶振，5032mm貼片晶振，SMD無源晶體，兩腳貼片晶體，低成本晶振，低功耗晶振，低耗能晶振，低老化晶振，高性能晶振，高品質晶振，數字電子專用晶振，數字音頻晶振，汽車音響專用晶振，消費產品晶振，智能音響晶振，藍牙應用晶振，具有良好的可靠性能。
SMD crystal產品比較常用于數字電子，消費產品，汽車，音頻及配件，藍牙應用，智能音響等應用場景。CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1.
CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1，尺寸5.0x3.2mm，頻率16MHZ，日本京瓷晶體，日本進口晶振，進口無源晶振，陶瓷諧振器，無源晶振，SMD晶振，無源陶瓷晶振，陶瓷晶振，5032mm貼片晶振，SMD無源晶體，兩腳貼片晶體，低成本晶振，低功耗晶振，低耗能晶振，低老化晶振，高性能晶振，高品質晶振，數字電子專用晶振，數字音頻晶振，汽車音響專用晶振，消費產品晶振，智能音響晶振，藍牙應用晶振，具有良好的可靠性能。
SMD crystal產品比較常用于數字電子，消費產品，汽車，音頻及配件，藍牙應用，智能音響等應用場景。CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1.

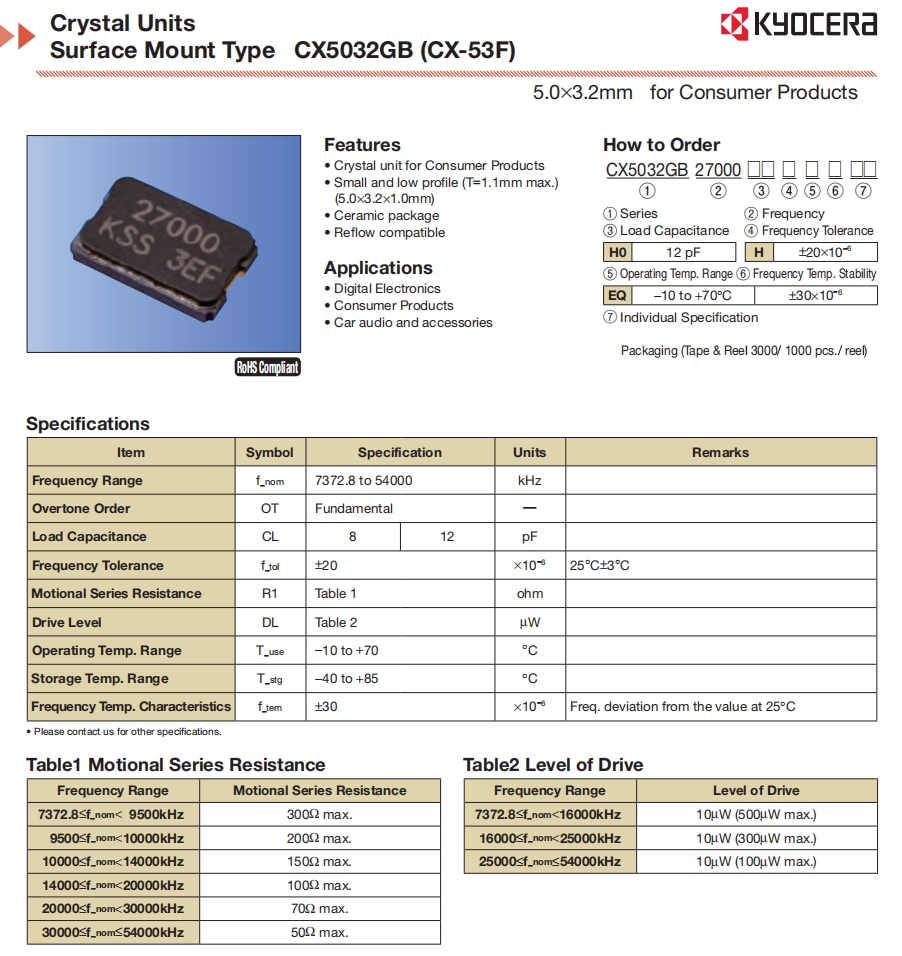

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1 參數表
| Item | Symbol | Specification | Units | Remarks | |||||||||||
| Frequency Range | f_nom | 16 | MHZ | ||||||||||||
| Overtone Order | OT | Fundamental | ― | ||||||||||||
| Load Capacitance | CL | 8 | 12 | pF | |||||||||||
| Frequency Tolerance | f_tol | ±20 | × 10-6 | 25°C±3°C | |||||||||||
| Motional Series Resistance | R1 | Table 1 | ohm | ||||||||||||
| Drive Level | DL | Table 2 |
 W
|
||||||||||||
| Operating Temp. Range | T_use | -10 to +70 | °C | ||||||||||||
| Storage Temp. Range | T_stg | -40 to +85 | °C | ||||||||||||
| Frequency Temp. Characteristics | f_tem | ±30 | × 10-6 | Freq. deviation from the value at 25°C | |||||||||||

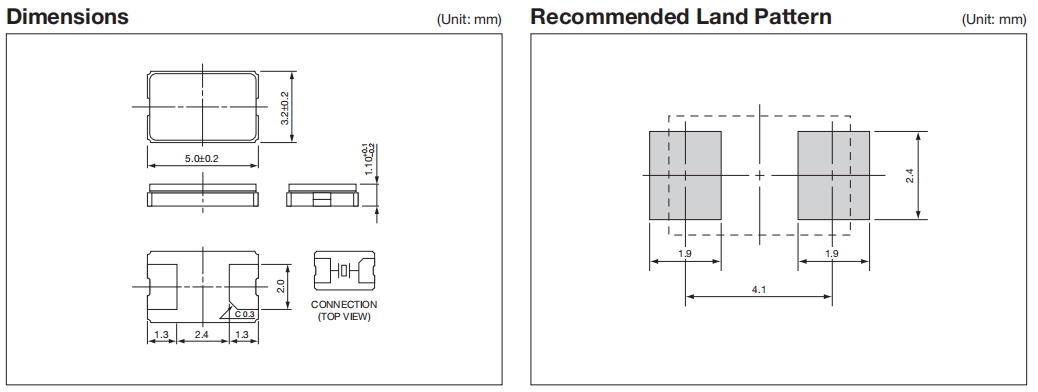

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1 尺寸圖
CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1
產品特點:
小而低輪廓（T=最大1.1mm）
（5.0×3.2×1.0mm）
陶瓷面晶振回流兼容
| 原廠編碼 | 廠家 | 型號 | 頻率 | 工作溫度 |
| CX3225GB54000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 54MHz | -40°C ~ 85°C |
| CX3225GB38400D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 38.4MHz | -40°C ~ 85°C |
| CX3225GB18432P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 18.432MHz | -40°C ~ 85°C |
| CX3225GB19200D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 19.2MHz | -40°C ~ 85°C |
| CX3225GB18432D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 18.432MHz | -40°C ~ 85°C |
| CX3225GB27000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 27MHz | -40°C ~ 85°C |
| CX3225GB48000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 48MHz | -40°C ~ 85°C |
| CX3225GB32000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 32MHz | -40°C ~ 85°C |
| CX3225GB30000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 30MHz | -40°C ~ 85°C |
| CX3225GB33333D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 33.333MHz | -40°C ~ 85°C |
| CX3225CA09843D0HSSTT | AVX Corp/Kyocera Corp | CX3225CA, Kyocera | 9.843MHz | -40°C ~ 125°C |
| CX3225CA28636D0HSSCC | AVX Corp/Kyocera Corp | CX3225CA, Kyocera | 28.63636MHz | -40°C ~ 125°C |
| CX3225CA27000D0HSSCC | AVX Corp/Kyocera Corp | CX3225CA, Kyocera | 27MHz | -40°C ~ 125°C |
| CX3225CA30000D0HSSCC | AVX Corp/Kyocera Corp | CX3225CA, Kyocera | 30MHz | -40°C ~ 125°C |
| CX3225GA20000D0PTVCC | AVX Corp/Kyocera Corp | CX3225GA, Kyocera | 20MHz | -40°C ~ 150°C |
| CX3225GA26000D0PTVCC | AVX Corp/Kyocera Corp | CX3225GA, Kyocera | 26MHz | -40°C ~ 150°C |
| CX3225GA30000D0PTVCC | AVX Corp/Kyocera Corp | CX3225GA, Kyocera | 30MHz | -40°C ~ 150°C |
| CX3225GA27000D0PTVCC | AVX Corp/Kyocera Corp | CX3225GA, Kyocera | 27MHz | -40°C ~ 150°C |
| CX3225GA13560D0PTVCC | AVX Corp/Kyocera Corp | CX3225GA, Kyocera | 13.56MHz | -40°C ~ 150°C |
| CX3225GA32000D0PTVCC | AVX Corp/Kyocera Corp | CX3225GA, Kyocera | 32MHz | -40°C ~ 150°C |
| CX3225GA09843D0PTVTT | AVX Corp/Kyocera Corp | CX3225GA, Kyocera | 9.843MHz | -40°C ~ 150°C |
| CX3225SB12000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 12MHz | -30°C ~ 85°C |
| CX2016DB16000D0WZRC1 | AVX Corp/Kyocera Corp | CX2016DB, Kyocera | 16MHz | -25°C ~ 75°C |
| CX5032GB16000H0HPQZ1 | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | 16MHz | -40°C ~ 85°C |
| CX3225SB48000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 48MHz | -40°C ~ 85°C |
| CX5032GB08000H0HPQZ1 | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | 8MHz | -40°C ~ 85°C |
| CX2016DB48000C0WLLA1 | AVX Corp/Kyocera Corp | CX2016DB, Kyocera | 48MHz | -30°C ~ 85°C |
| CX3225SB38400D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 38.4MHz | -40°C ~ 85°C |
| CX2520DB38400D0FZGC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | 38.4MHz | -25°C ~ 85°C |
| CX3225GB25000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 25MHz | -40°C ~ 85°C |
| CX5032GB10000H0HPQZ1 | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | 10MHz | -40°C ~ 85°C |
| ST3215SB32768H5HSZA1 | AVX Corp/Kyocera Corp | ST3215SB, Kyocera | 32.768kHz | -40°C ~ 125°C |
| CX3225CA24000D0HSSCC | AVX Corp/Kyocera Corp | CX3225CA, Kyocera | 24MHz | -40°C ~ 125°C |
| CX2520DB32000D0FLJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | 32MHz | -30°C ~ 85°C |
| CX5032GB14745H0PESZZ | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | 14.7456MHz | -10°C ~ 70°C |
| CX5032GB24576H0PESZZ | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | 24.576MHz | -10°C ~ 70°C |
| CX3225SB48000D0WPSC2 | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 48MHz | -40°C ~ 85°C |
| CX2520SB13560D0GEJCC | AVX Corp/京瓷晶振 | CX2520SB, Kyocera | 13.56MHz | -10°C ~ 70°C |
| CX2520SB40000H0WZK06 | AVX Corp/Kyocera Corp | CX2520SB, Kyocera | 40MHz | 0°C ~ 85°C |
| CX2520SB40000H0DZF08 | AVX Corp/Kyocera Corp | CX2520SB, Kyocera | 40MHz | -10°C ~ 85°C |
| CX3225GB14318P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 14.31818MHz | -40°C ~ 85°C |
| CX3225GB10000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 10MHz | -40°C ~ 85°C |
| CX3225GB20000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 20MHz | -40°C ~ 85°C |
| CX3225GB10000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 10MHz | -40°C ~ 85°C |
| CX3225GB48000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 48MHz | -40°C ~ 85°C |
| CX3225GB13560D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 13.56MHz | -40°C ~ 85°C |
| CX3225GB30000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 30MHz | -40°C ~ 85°C |
| CX2520DB48000D0GEJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | 48MHz | -10°C ~ 70°C |
| CX2520DB24576D0GEJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | 24.576MHz | -10°C ~ 70°C |
| CX3225CA13560D0HSSCC | AVX Corp/Kyocera Corp | CX3225CA, Kyocera | 13.56MHz | -40°C ~ 125°C |
| CX3225GB16000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 16MHz | -40°C ~ 85°C |
| ST3215SB32768E0HPWBB | AVX Corp/Kyocera Corp | ST3215SB, Kyocera | 32.768kHz | -40°C ~ 85°C |
| ST2012SB32768E0HPWBB | AVX Corp/Kyocera Corp | ST2012SB, Kyocera | 32.768kHz | -40°C ~ 85°C |
| CX2016DB16000D0GPSC1 | AVX Corp/Kyocera Corp | CX2016DB, Kyocera | 16MHz | -40°C ~ 85°C |
| CX2520DB25000H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | 25MHz | -30°C ~ 85°C |
| CX3225SB13560D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 13.56MHz | -30°C ~ 85°C |
| CX3225SB20000H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 20MHz | -30°C ~ 85°C |
| CX3225SB32000H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 32MHz | -30°C ~ 85°C |
| CX3225SB40000H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 40MHz | -30°C ~ 85°C |
| CX3225GB32000D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 32MHz | -10°C ~ 70°C |
| CX3225GB13000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 13MHz | -40°C ~ 85°C |
| CX3225GB27120P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | 27.12MHz | -40°C ~ 85°C |
| CX3225SB12000D0FPNCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 12MHz | -40°C ~ 85°C |
| CX3225SB13560D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 13.56MHz | -40°C ~ 85°C |
| CX3225SB24000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 24MHz | -40°C ~ 85°C |
| CX3225SB32000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | 32MHz | -40°C ~ 85°C |
| CX2520DB12000C0WLSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | 12MHz | -30°C ~ 85°C |
| ST3215SB32768B0HSZA1 | AVX Corp/Kyocera Corp | ST3215SB, Kyocera | 32.768kHz | -40°C ~ 125°C |
| ST3215SB32768E0HSZB1 | AVX Corp/Kyocera Corp | ST3215SB, Kyocera | 32.768kHz | -40°C ~ 125°C |
| ST3215SB32768B0HPWB3 | AVX Corp/Kyocera Corp | ST3215SB, Kyocera | 32.768kHz | -40°C ~ 85°C |
| CX3225CA16000H0HSSCC | AVX Corp/Kyocera Corp | CX3225CA, Kyocera | 16MHz | -40°C ~ 125°C |
| CX3225GA12000D0PTVCC | AVX Corp/Kyocera Corp | CX3225GA, Kyocera | 12MHz | -40°C ~ 150°C |
| CT2520DB26000C0FZZA1 | AVX Corp/Kyocera Corp | CT2520DB, Kyocera | 26MHz | -25°C ~ 85°C |
| ST2012SB32768Z0HPWB4 | AVX Corp/Kyocera Corp | ST2012SB, Kyocera | 32.768kHz | -40°C ~ 85°C |
| CX5032GB08000H0HEQZ1 | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | 8MHz | -10°C ~ 70°C |
| CX1612DB48000D0FPJC1 | AVX Corp/Kyocera Corp | CX1612DB, Kyocera | 48MHz | -40°C ~ 85°C |
