510CCA48M0000AAG|6G路由器晶振|Skyworks有源貼片晶振Si510

頻率：48MHZ

尺寸：7.0x5.0mm

510CCA48M0000AAG|6G路由器晶振|Skyworks有源貼片晶振Si510，尺寸7.0x5.0mm，頻率48MHZ，輸出邏輯CMOS，OSC振蕩器，XO時鐘振蕩器，CMOS輸出晶振，SMD振蕩器，四腳有源晶振，有源晶體振蕩器，石英晶體振蕩器，有源振蕩器，低電壓振蕩器，低功耗有源晶振，低抖動有源晶振，7050mm有源晶振，48MHZ有源晶振，路由器專用晶振，光纖通道有源晶振，電信專用晶振，交換機晶振，具有低抖動高品質的特點，很適合SONET/SDH/OTN，關于 Gigabit Ethernet，光纖通道/SAS/SATA，關于PCI Express，3G-SDI/HD-SDI/SDI 電信，交換機/路由器，FPGA/ASIC，時鐘生成等領域。

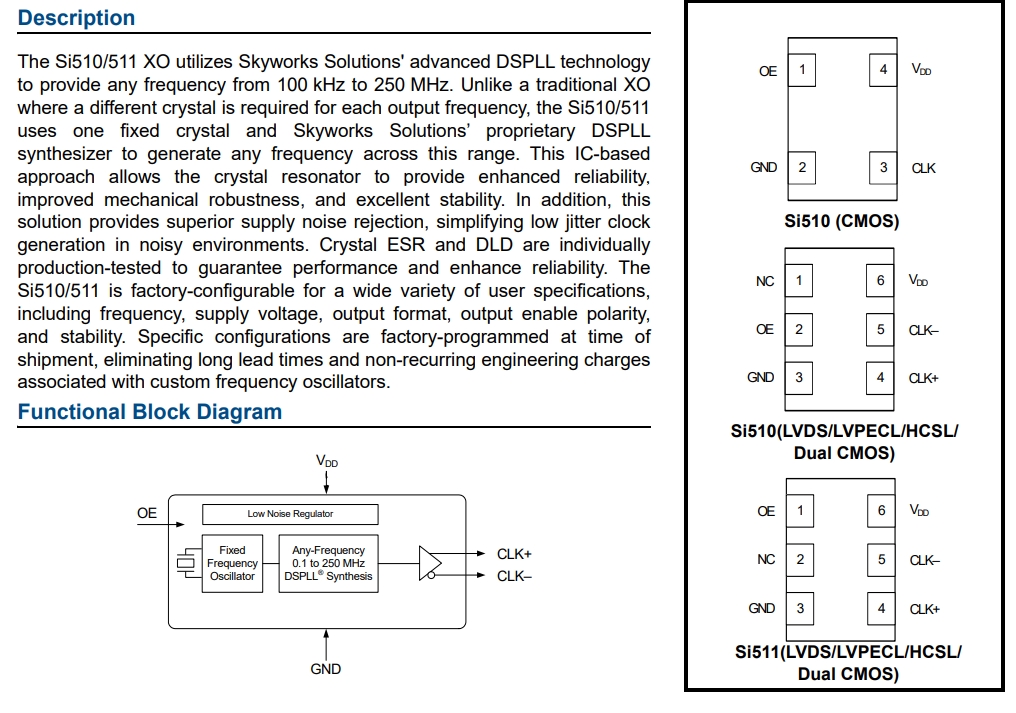

Si510/511 XO采用Skyworks Solutions的先進DSPLL技術以提供從100kHz到250MHz的任何頻率。與傳統XO不同其中每個輸出頻率需要不同的晶體，Si510/511有源晶振使用一塊固定水晶和Skyworks Solutions的專有DSPLL合成器，以生成該范圍內的任何頻率。此IC基于該方法允許晶體諧振器提供增強的可靠性，改進的機械堅固性和優異的穩定性。此外該解決方案提供卓越的電源噪聲抑制，簡化了低抖動時鐘在嘈雜的環境中生成。Crystal ESR和DLD分別為生產測試，以保證性能和提高可靠性。510CCA48M0000AAG|6G路由器晶振|Skyworks有源貼片晶振Si510.

訂購熱線：0755-29952551

LH-1

LH-2

510CCA48M0000AAG|6G路由器晶振|Skyworks有源貼片晶振Si510 參數表

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

0.1

—

250

MHz

Total Stability*

Frequency Stability Grade C

–30

—

+30

ppm

Frequency Stability Grade B

–50

—

+50

ppm

Frequency Stability Grade A

–100

—

+100

ppm

Temperature Stability

Frequency Stability Grade C

–20

—

+20

ppm

Frequency Stability Grade B

–25

—

+25

ppm

Frequency Stability Grade A

–50

—

+50

ppm

Startup Time

TSU

Minimum V DD until output
frequency (FO) within specification

—

Disable Time

FO> 10 MHz

—

µs

FO< 10 MHz

—

µs

Enable Time

FO> 10 MHz

—

µs

FO< 10 MHz

—

µs

*Note: Total stability includes initial accuracy, operating temperature, supply voltage change, load change, shock and vibration
(not under operation), and 10 years aging at 40 oC.

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
CMOS Output Logic High	V OH		0.85 x V DD	—	—	V
CMOS Output Logic Low	VOL		—	—	0.15 x V DD	V
CMOS Output Logic High Drive	I OH	3.3 V	–8	—	—	mA
		2.5 V	–6	—	—	mA
		1.8 V	–4	—	—	mA
CMOS Output Logic Low Drive	I OL	3.3 V	8	—	—	mA
		2.5 V	6	—	—	mA
		1.8 V	4	—	—	mA
CMOS Output Rise/Fall Time (20 to 80% V DD)	TR/T F	0.1 to 212.5 MHz, CL = 15 pF	0.45	0.8	1.2	ns
		0.1 to 212.5 MHz, CL = no load	0.3	0.6	0.9	ns
LVPECL Output Rise/Fall Time (20 to 80% VDD)	TR/T F		100	—	565	ps
HCSL Output Rise/Fall Time (20 to 80% VDD)	TR/T F		100	—	470	ps
LVDS Output Rise/Fall Time (20 to 80% VDD)	TR/T F		350	—	800	ps
LVPECL Output Common Mode	VOC	50 Ω to V DD – 2 V, single-ended	—	V DD – 1.4 V	—	V
LVPECL Output Swing	VO	50 Ω to V DD – 2 V, single-ended	0.55	0.8	0.90	VPPSE
LVDS Output Common Mode	VOC	100 Ω line-line V DD= 3.3/2.5 V	1.13	1.23	1.33	V
		100 Ω line-line, V DD= 1.8 V	0.83	0.92	1.00	V
LVDS Output Swing	VO	Single-ended, 100 Ω differential termination	0.25	0.35	0.45	VPPSE
HCSL Output Common Mode	VOC	50 Ω to ground	0.35	0.38	0.42	V
HCSL Output Swing	VO	Single-ended	0.58	0.73	0.85	VPPSE
Duty Cycle	DC	All formats	48	50	52	%

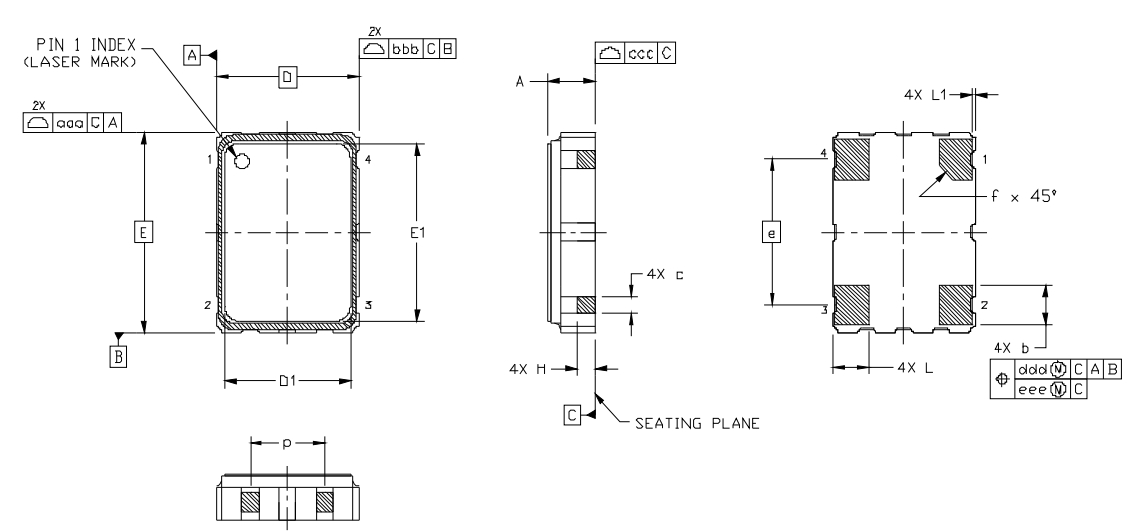

510CCA48M0000AAG|6G路由器晶振|Skyworks有源貼片晶振Si510 尺寸圖

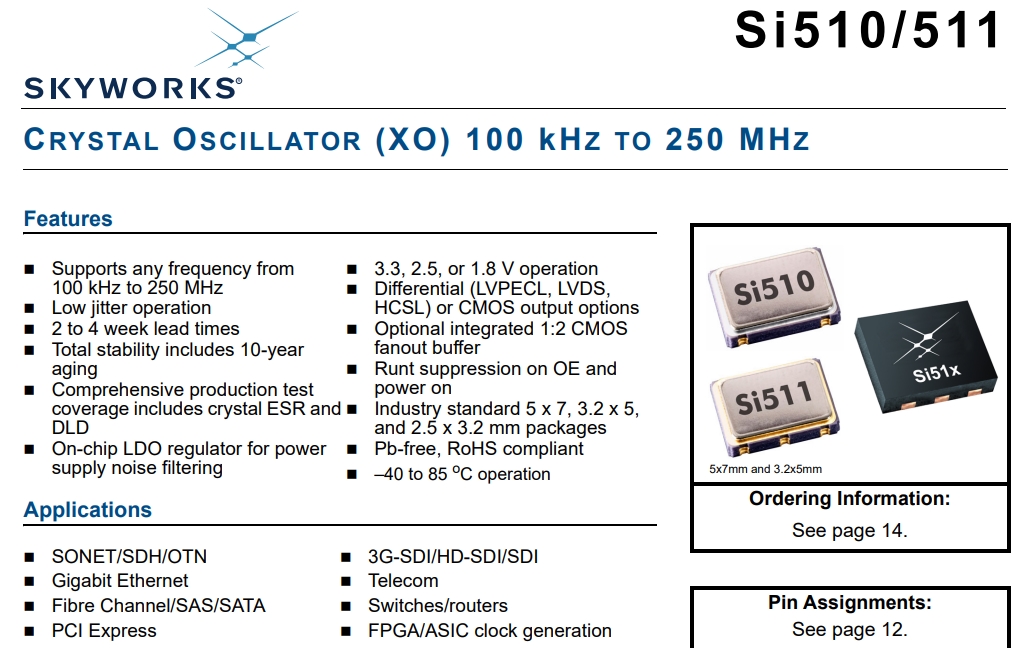

有源石英晶振產品特性：

支持來自的任何頻率100kHz至250MHz

低抖動操作

2-4周交付周期

總體穩定性包括10年變老

綜合生產試驗

覆蓋范圍包括晶體ESR和DLD

用于電源的片上LDO調節器

電源噪聲濾波

3.3、2.5或1.8 V操作

差分（LVPECL、LVDS、HCSL）或CMOS輸出選項

可選集成1:2 CMOS扇出緩存

OE和接通電源

行業標準5 x 7、3.2 x 5，和2.5 x 3.2毫米封裝

無鉛，符合RoHS

–40至85℃操作
