頻率：8~200MHZ
尺寸：6.0x3.5mm
C6兩腳陶瓷晶振,6035mm小封裝晶體,PDI歐美進口晶振,PDI無源晶振,無源SMD晶振,陶瓷諧振器,兩腳貼片晶振,SMD crystal,無源晶體,輕薄型晶振,尺寸6.0x3.5mm,頻率范圍8~200MHZ,高頻晶振,低成本晶振,低損耗晶振,高精度晶振,智能音響晶振,筆記本電腦晶振,影音系統晶振,娛樂設備晶振,便攜式設備晶振,數碼相機晶振.
C6兩腳陶瓷晶振,6035mm小封裝晶體,PDI歐美進口晶振特點:
陶瓷諧振器2襯墊石英水晶
C6的成本很低
小尺寸晶體
用于緊身板應用.
C6兩腳陶瓷晶振,6035mm小封裝晶體,PDI歐美進口晶振,PDI無源晶振,無源SMD晶振,陶瓷諧振器,兩腳貼片晶振,SMD crystal,無源晶體,輕薄型晶振,尺寸6.0x3.5mm,頻率范圍8~200MHZ,高頻晶振,低成本晶振,低損耗晶振,高精度晶振,智能音響晶振,筆記本電腦晶振,影音系統晶振,娛樂設備晶振,便攜式設備晶振,數碼相機晶振.
C6兩腳陶瓷晶振,6035mm小封裝晶體,PDI歐美進口晶振特點:
陶瓷諧振器2襯墊石英水晶
C6的成本很低
小尺寸晶體
用于緊身板應用.

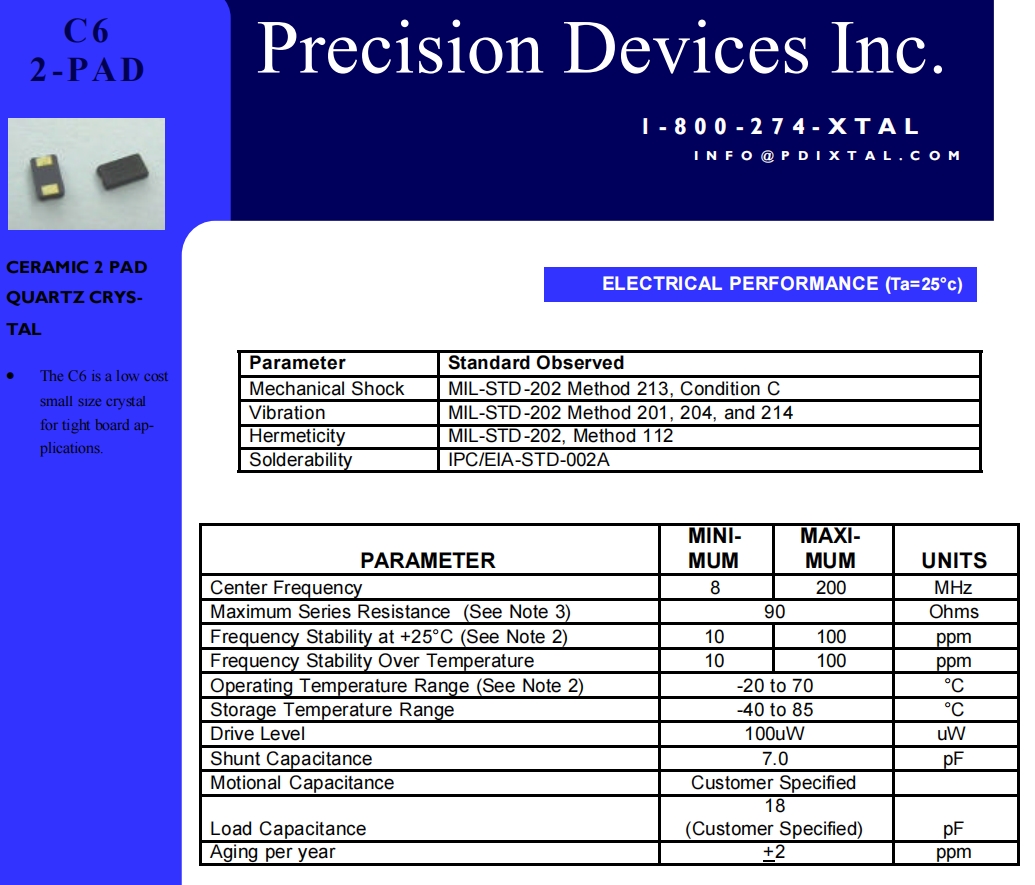

C6兩腳陶瓷晶振,6035mm小封裝晶體,PDI歐美進口晶振 參數表
| PARAMETER |
MINI- MUM |
MAXI- MUM |
UNITS | |||||
| Center Frequency | 8 | 200 | MHz | |||||
| Maximum Series Resistance (See Note 3) | 90 | Ohms | ||||||
| Frequency Stability at +25°C (See Note 2) | 10 | 100 | ppm | |||||
| Frequency Stability Over Temperature | 10 | 100 | ppm | |||||
| Operating Temperature Range (See Note 2) | -20 to 70 | °C | ||||||
| Storage Temperature Range | -40 to 85 | °C | ||||||
| Drive Level | 100uW | uW | ||||||
| Shunt Capacitance | 7.0 | pF | ||||||
| Motional Capacitance | Customer Specified | |||||||
| Load Capacitance |
18 (Customer Specified) |
pF | ||||||
| Aging per year | +2 | ppm | ||||||

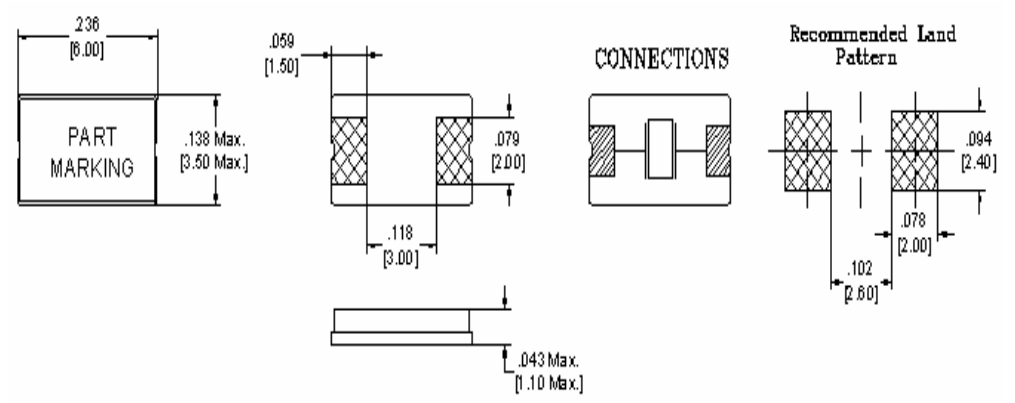

C6兩腳陶瓷晶振,6035mm小封裝晶體,PDI歐美進口晶振 尺寸圖
