LH-1

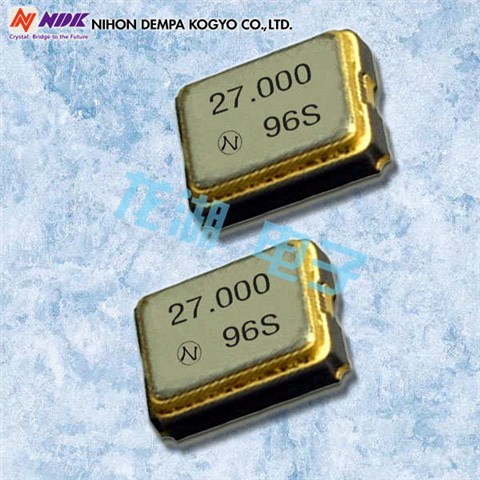

NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器，尺寸2.5x2.0mm，頻率33MHZ，輸出邏輯CMOS，日本電波石英晶振，日本進口晶振，進口有源振蕩器，時鐘晶體振蕩器，Clock Oscillator，石英有源晶振，貼片有源晶振，有源晶體振蕩器，2520mm有源晶振，移動通信有源晶振，便攜式設備有源晶振，筆記本電腦有源晶振，可視化設備有源晶振，智能穿戴有源晶振，游戲設備有源晶振，娛樂設備有源晶振，低電壓有源晶振，低抖動有源晶振，低耗能有源晶振，低相位有源晶振，低相位有源晶振，具有低抖動低相位的特點。

OSC晶振產品非常適合用于移動通信晶振，便攜式設備，筆記本電腦，可視化設備，智能穿戴，游戲設備，娛樂設備等應用場景.NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器. LH-2

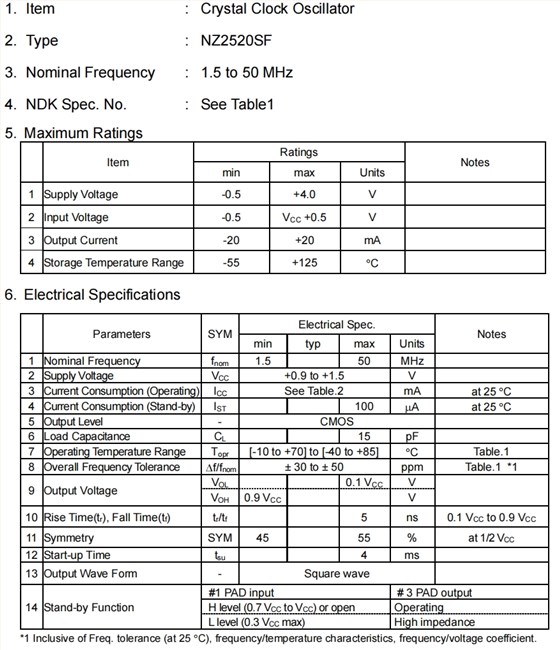

NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器參數表

Item

Ratings

Notes

min

max

Units

Supply Voltage

-0.5

+4.0

Input Voltage

-0.5

VCC+0.5

Output Current

-20

+20

Storage Temperature Range

-55

+125

。C

Parameters

SYM

Electrical Spec.

Notes

min

typ

max

Units

Nominal Frequency

fnom

MHz

Supply Voltage

VCC

+0.9 to +1.5

Current Consumption (Operating)

ICC

See Table.2

at 25。C

Current Consumption (Stand-by)

IST

100

μA

at 25。C

Output Level

CMOS

Load Capacitance

Operating Temperature Range

Topr

[- 10 to +70] to [-40 to +85]

。C

Table.1

Overall Frequency Tolerance

Δf/fnom

± 30 to ± 50

ppm

Table.1* 1

Output Voltage

VOL

0.1 VCC

VOH

0.9 VCC

Rise Time(tr), Fall Time(tf)

tr/tf

0.1 VCCto 0.9 VCC

Symmetry

SYM

at 1/2 VCC

Start-up Time

tsu

Output Wave Form

Square wave

Stand-by Function

#1 PAD input

# 3 PAD output

H level (0.7 VCCto VCC) or open

Operating

L level (0.3 VCCmax)

High impedance

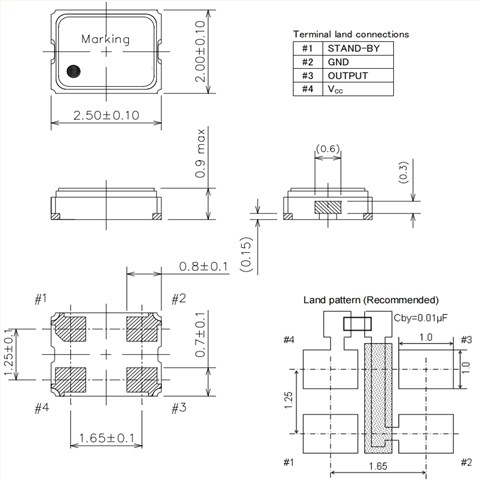

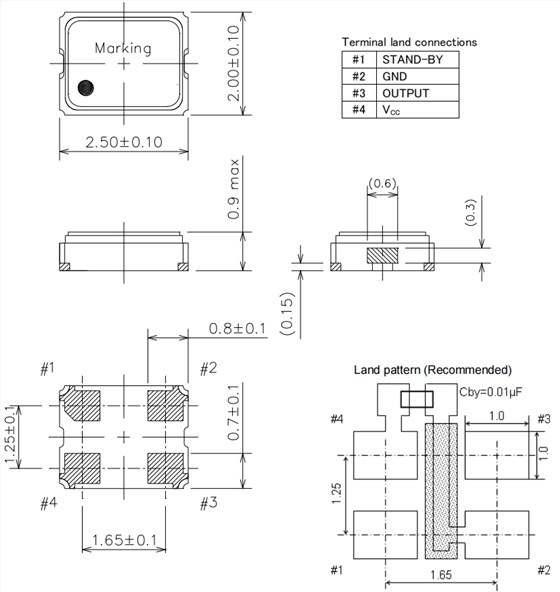

NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器 尺寸圖

NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器

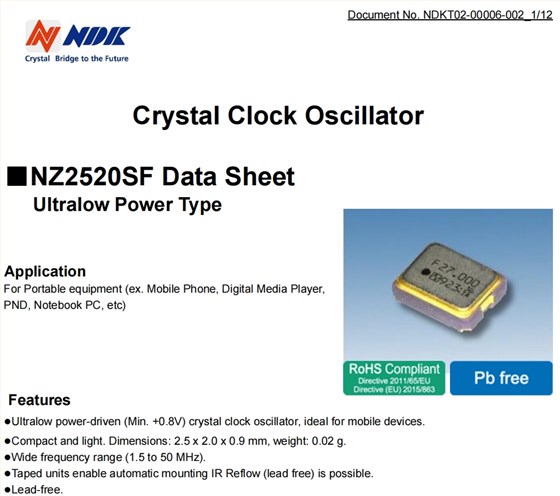

產品特點:

超低功率驅動（最小+0.8V）石英晶體振蕩器，非常適合移動設備。

小巧輕便。尺寸：2.5 x 2.0 x 0.9毫米，重量：0.02克。

寬頻率范圍（1.5至50 MHz）。

磁帶裝置可實現自動安裝IR回流（無鉛）。

進口晶振型號	Nominal frequency[MHz]	Specification number	Manufacturer	Package size(LxW)[mm]	Output specification	Operating temperature rang[℃]
NZ2520SDA	24MHZ	NSC5083D	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	24.576MHZ	NSC5083D	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	25MHZ	NSC5083D	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	27MHZ	NSC5083D	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	45.1584MHZ	NSC5083D	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	48MHZ	NSC5083D	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	49.152MHZ	NSC5083D	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	50MHZ	NSC5083D	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	24MHZ	NSA3468E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	24.54MHZ	NSA3468E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	25MHZ	NSA3468E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	26MHZ	NSA3468E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	27MHZ	NSA3468E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	33MHZ	NSA3468E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	33.33MHZ	NSA3468E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	38.4MHZ	NSA3468E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	50MHZ	NSA3468E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	24MHZ	NSA3477E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	24.54MHZ	NSA3477E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	25MHZ	NSA3477E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	26MHZ	NSA3477E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	27MHZ	NSA3477E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	33MHZ	NSA3477E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	33.33MHZ	NSA3477E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	38.4MHZ	NSA3477E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	50MHZ	NSA3477E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	24MHZ	NSA3469E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	24.54MHZ	NSA3469E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	25MHZ	NSA3469E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	26MHZ	NSA3469E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	27MHZ	NSA3469E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	33MHZ	NSA3469E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	33.33MHZ	NSA3469E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	38.4MHZ	NSA3469E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	50MHZ	NSA3469E	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SF	24MHZ	NSA3468C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	24.54MHZ	NSA3468C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	25MHZ	NSA3468C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	26MHZ	NSA3468C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	27MHZ	NSA3468C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	33MHZ	NSA3468C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	33.33MHZ	NSA3468C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	38.4MHZ	NSA3468C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	50MHZ	NSA3468C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	24MHZ	NSA3477C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	24.54MHZ	NSA3477C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	25MHZ	NSA3477C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	26MHZ	NSA3477C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	27MHZ	NSA3477C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	33MHZ	NSA3477C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	33.33MHZ	NSA3477C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	38.4MHZ	NSA3477C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	50MHZ	NSA3477C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	24MHZ	NSA3469C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	24.54MHZ	NSA3469C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	25MHZ	NSA3469C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	26MHZ	NSA3469C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	27MHZ	NSA3469C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	33MHZ	NSA3469C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	33.33MHZ	NSA3469C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	38.4MHZ	NSA3469C	NDK晶振	2.5x2.0	CMOS	-10~+70
NZ2520SF	50MHZ	NSA3469C	NDK晶振	2.5x2.0	CMOS	-10~+70
2725T	4.096MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	10MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	12MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	12.5MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	16MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	24MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	25MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	33MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	50MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	66.66MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	74.25MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	100MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	125MHZ	NSA6293A	NDK晶振	5.0x3.2	CMOS	-20~+70
2725T	4.096MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	10MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	12MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	12.5MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	16MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	24MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	25MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	33MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	50MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	66.66MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	74.25MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	100MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	125MHZ	NSA6293B	NDK晶振	5.0x3.2	CMOS	-10~+70
2725T	4.096MHZ	NSA6293F	NDK晶振	5.0x3.2	CMOS	-40~+105
2725T	10MHZ	NSA6293F	NDK晶振	5.0x3.2	CMOS	-40~+105
2725T	12MHZ	NSA6293F	NDK晶振	5.0x3.2	CMOS	-40~+105
2725T	12.5MHZ	NSA6293F	NDK晶振	5.0x3.2	CMOS	-40~+105
2725T	16MHZ	NSA6293F	NDK晶振	5.0x3.2	CMOS	-40~+105
2725T	24MHZ	NSA6293F	NDK晶振	5.0x3.2	CMOS	-40~+105
2725T	25MHZ	NSA6293F	NDK晶振	5.0x3.2	CMOS	-40~+105
2725T	33MHZ	NSA6293F	NDK晶振	5.0x3.2	CMOS	-40~+105
2725T	50MHZ	NSA6293F	NDK晶振	5.0x3.2	CMOS	-40~+105
2725T	66.66MHZ	NSA6293F	NDK晶振	5.0x3.2	CMOS	-40~+105
2725T	74.25MHZ	NSA6293F	NDK晶振	5.0x3.2	CMOS	-40~+105
2725T	4.096MHZ	NSA6293D	NDK晶振	5.0x3.2	CMOS	-40~+85
2725T	10MHZ	NSA6293D	NDK晶振	5.0x3.2	CMOS	-40~+85
2725T	12MHZ	NSA6293D	NDK晶振	5.0x3.2	CMOS	-40~+85
2725T	12.5MHZ	NSA6293D	NDK晶振	5.0x3.2	CMOS	-40~+85
2725T	16MHZ	NSA6293D	NDK晶振	5.0x3.2	CMOS	-40~+85
