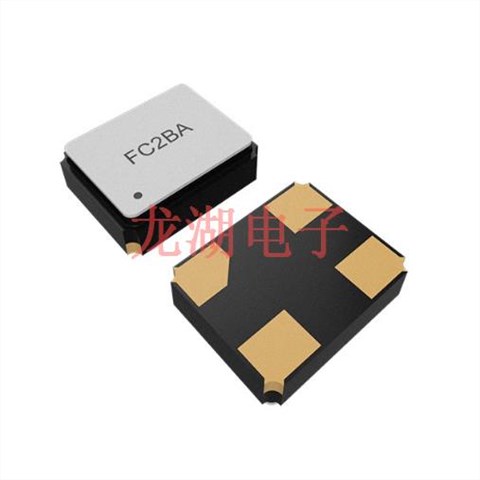

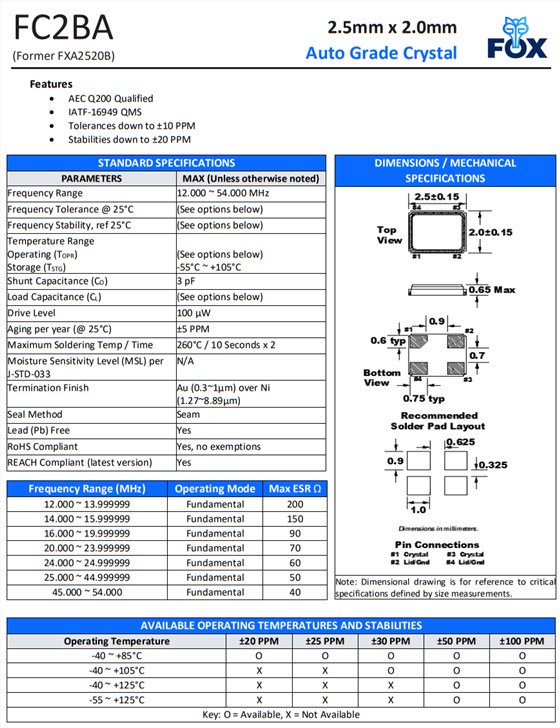

FC2BACBEI16.0-T1,四腳SMD晶振,FOX電子晶振廠家,2520mm
原廠編碼
FC2BACBEI16.0-T1
頻率
16MHz
廠家
FOX晶振
型號
FC2BA
頻率偏差
±50ppm
負載電容
10pF
工作溫度
-40°C至12°C

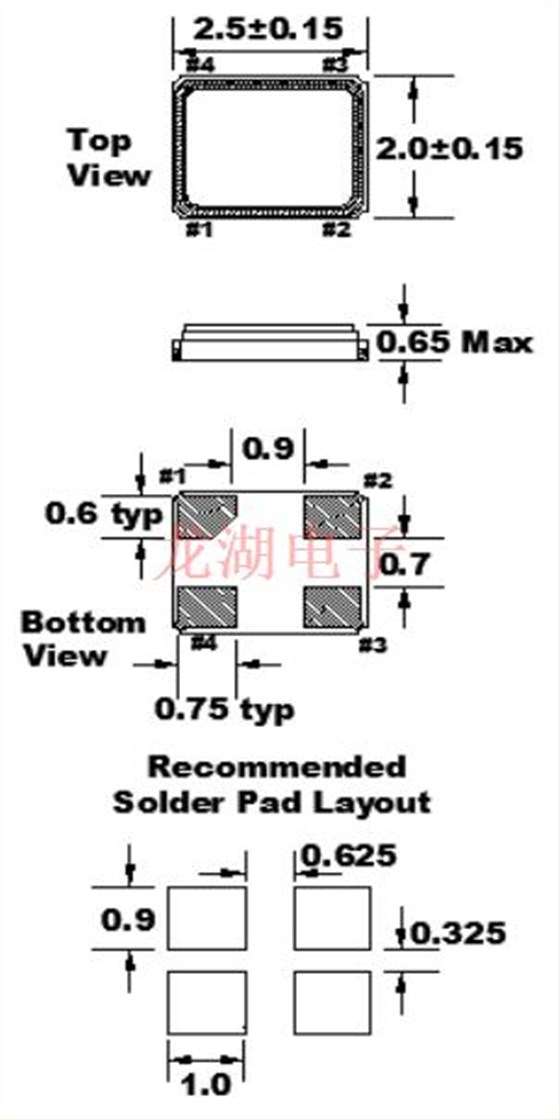

尺寸
2.5*2.0mm
FC2BACBEI16.0-T1,四腳SMD晶振,FOX電子晶振廠家,2520mm
| 編碼 | 品牌 | 型號 | 頻率 | 頻率偏差 | 頻率容差 | 負載電容 |
| FC3BACBDI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±50ppm | ±30ppm | 8 pF |
| FC3BACCGM20.0-T3 | Fox crystal | FC3BA | 20 MHz | ±30ppm | ±30ppm | 12 pF |
| FC3BACCLP12.0-T3 | Fox crystal | FC3BA | 12 MHz | ±30ppm | ±30ppm | 18 pF |
| FC3BAEBDI12.0-T1 | Fox crystal | FC3BA | 12 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI16.0-T1 | Fox crystal | FC3BA | 16 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI20.0-T1 | Fox crystal | FC3BA | 20 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI24.0-T1 | Fox crystal | FC3BA | 24 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI25.0-T1 | Fox crystal | FC3BA | 25 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI40.0-T1 | Fox crystal | FC3BA | 40 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI8.0-T1 | Fox crystal | FC3BA | 8 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBGI12.0-T1 | Fox crystal | FC3BA | 12 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI24.0-T1 | Fox crystal | FC3BA | 24 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI25.0-T1 | Fox crystal | FC3BA | 25 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI40.0-T1 | Fox crystal | FC3BA | 40 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BQBBDM20.0-T3 | Fox crystal | FC3BQ | 20 MHz | ±50ppm | ±50ppm | 8 pF |
| FC3BQBBME12.0-T3 | Fox crystal | FC3BQ | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME16.0-T1 | Fox crystal | FC3BQ | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME24.0-T1 | Fox crystal | FC3BQ | 24 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME25.0-T1 | Fox crystal | FC3BQ | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME25.0-T3 | Fox crystal | FC3BQ | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME27.0-T1 | Fox crystal | FC3BQ | 27 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM12.0-T1 | Fox crystal | FC3BQ | 12 MHz | ±50ppm | ±50ppm | 20 pF |
