BQCSA-27MHZF-CDD16T,7050mm,Bliley百利晶振,27MHZ，尺寸7.0×5.0mm，頻率27MHZ，美國百利晶振，進口貼片晶振，水晶振動子，27MHZ貼片晶振，7050mm無源晶振，SMD無源晶體，四腳貼片晶振，石英貼片晶振，石英晶體諧振器，無源石英晶體，石英晶振，輕薄型晶振，數碼相機晶振，視聽設備晶振，儀器儀表晶振，便攜式設備晶振，測試設備晶振，小型設備晶振，高質量晶振，高性能晶振，低損耗晶振，低功耗晶振，低耗能晶振，具有輕薄小高性能的特點。
無源晶振產品主要應用于數碼相機，視聽設備，儀器儀表，便攜式設備，測試設備，小型設備等應用領域。BQCSA-27MHZF-CDD16T,7050mm,Bliley百利晶振,27MHZ.

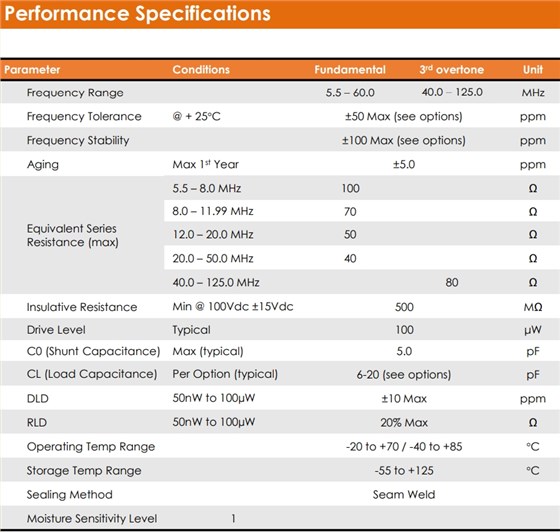

BQCSA-27MHZF-CDD16T,7050mm,Bliley百利晶振,27MHZ 參數表
| Parameter | ConditionsFundamental3rdovertoneUnit | |||||||||||||||||||
| Frequency Range | 27.040.0 – 125.0MHz | |||||||||||||||||||
| Frequency Tolerance | @ + 25℃±50 Max (see options)ppm | |||||||||||||||||||
| Frequency Stability | ±100 Max (see options)ppm | |||||||||||||||||||
| Aging | Max 1stYear±5.0ppm | |||||||||||||||||||
|
Equivalent Series Resistance (max) |
5.5 – 8.0 MHz100Ω | |||||||||||||||||||
| 8.0 – 11.99 MHz70Ω | ||||||||||||||||||||
| 12.0 – 20.0 MHz50Ω | ||||||||||||||||||||
| 20.0 – 50.0 MHz40Ω | ||||||||||||||||||||
| 40.0 – 125.0 MHz80Ω | ||||||||||||||||||||
| Insulative Resistance | Min @ 100Vdc ±15Vdc500M Ω | |||||||||||||||||||
| Drive Level | Typical100μW | |||||||||||||||||||
| C0 (Shunt Capacitance) | Max (typical)5.0pF | |||||||||||||||||||
| CL (Load Capacitance) | Per Option (typical)6-20 (see options)pF | |||||||||||||||||||
| DLD | 50nW to 100µW±10 Maxppm | |||||||||||||||||||
| RLD | 50nW to 100µW20% MaxΩ | |||||||||||||||||||
| Operating Temp Range | -20 to +70 / -40 to +85℃ | |||||||||||||||||||
| Storage Temp Range | -55 to +125℃ | |||||||||||||||||||
| Sealing Method | Seam Weld | |||||||||||||||||||
| Moisture Sensitivity Level | 1 | |||||||||||||||||||

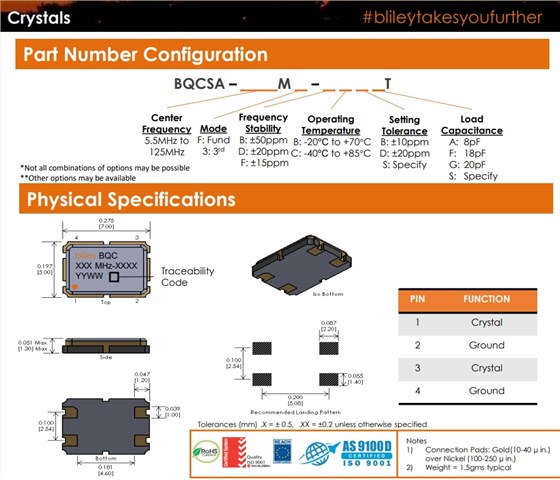

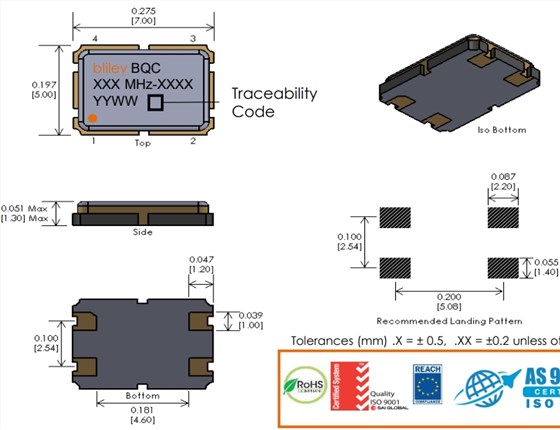

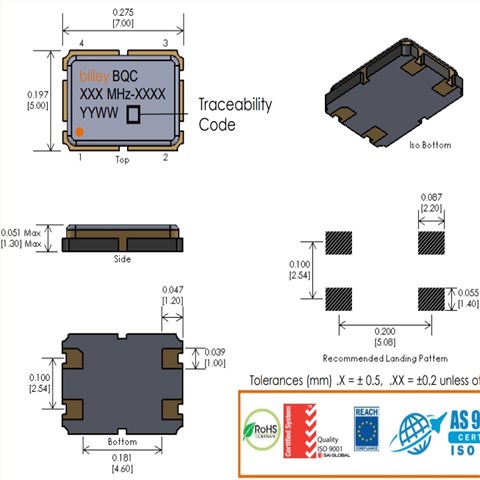

BQCSA-27MHZF-CDD16T,7050mm,Bliley百利晶振,27MHZ 尺寸圖

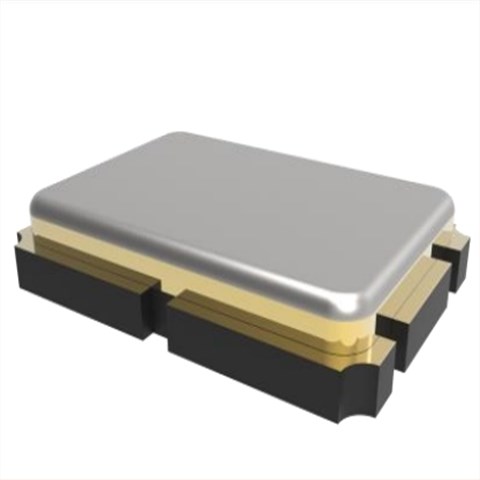

BQCSA-27MHZF-CDD16T,7050mm,Bliley百利晶振,27MHZ
產品特點:
SMD晶體結構
標準5X7mm包裝尺寸
高溫高穩定性
