頻率：16 MHz

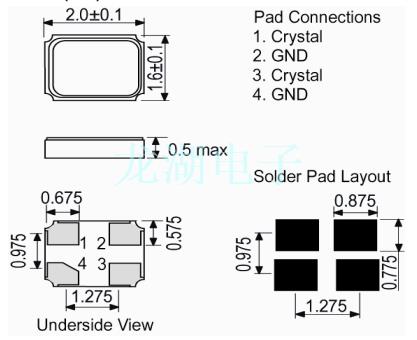

尺寸：2.0*1.6mm
LFXTAL085842,IQXC-42,IQD無源晶振,高頻率晶振,英國進口晶振,除顫儀晶振,超小晶振,編碼LFXTAL085842,型號IQXC-42,頻率16Mhz,10ppm精度,8pF負載電容,無鉛晶振,滿足無鉛焊接以及高溫回流溫度曲線要求,符合AEC-Q200標準
LFXTAL085842,IQXC-42,IQD無源晶振,高頻率晶振
| 原廠編碼 | LFXTAL085842 |
| 頻率 | 16MHz |
| 廠家 | IQD晶振 |
| 型號 | IQXC-42 |
| 頻率偏差 | ±10ppm |
| 負載電容 | 8pF |
| 工作溫度 | -40°C至125°C |
| 尺寸 | 2.0*1.6mm |
LFXTAL085842,IQXC-42,IQD無源晶振,高頻率晶振
| Mfr Part # | Mfr | Series | Frequency | Frequency Tolerance | Load Capacitance |
| LFXTAL082127RL3K | IQD Crystal | IQXC-42 | 27.12 MHz | ±10ppm | 8pF |
| LFXTAL082468RL3K | IQD Crystal | IQXC-42 | 38.4 MHz | ±10ppm | 10pF |
| LFXTAL082135RL3K | IQD Crystal | IQXC-42 | 48 MHz | ±10ppm | 8pF |
| LFXTAL082131RL3K | IQD Crystal | IQXC-42 | 38.4 MHz | ±10ppm | 8pF |
| LFXTAL082128RL3K | IQD Crystal | IQXC-42 | 30 MHz | ±10ppm | 8pF |
| LFXTAL082126RL3K | IQD Crystal | IQXC-42 | 26 MHz | ±10ppm | 8pF |
| LFXTAL082125RL3K | IQD Crystal | IQXC-42 | 25 MHz | ±10ppm | 8pF |
| LFXTAL081781RL3K | IQD Crystal | IQXC-42 | 16 MHz | ±10ppm | 8pF |
| LFXTAL082130RL3K | IQD Crystal | IQXC-42 | 37.4 MHz | ±10ppm | 8pF |
| LFXTAL082129RL3K | IQD Crystal | IQXC-42 | 32 MHz | ±10ppm | 8pF |
| LFXTAL082132RL3K | IQD Crystal | IQXC-42 | 40 MHz | ±10ppm | 8pF |
| LFXTAL059585REEL | IQD Crystal | IQXC-42 | 20 MHz | ±15ppm | 10pF |
| LFXTAL059591REEL | IQD Crystal | IQXC-42 | 26 MHz | ±15ppm | 10pF |
| LFXTAL059596REEL | IQD Crystal | IQXC-42 | 30 MHz | ±15ppm | 10pF |
| LFXTAL059632REEL | IQD Crystal | IQXC-42 | 40 MHz | ±15ppm | 10pF |
| LFXTAL072543REEL | IQD Crystal | IQXC-42 | 27 MHz | ±15ppm | 10pF |
| LFXTAL072546REEL | IQD Crystal | IQXC-42 | 48 MHz | ±15ppm | 10pF |
| LFXTAL078377REEL | IQD Crystal | IQXC-42 | 26 MHz | ±10ppm | 12pF |
| LFXTAL082132REEL | IQD Crystal | IQXC-42 | 40 MHz | ±10ppm | 8pF |
| LFXTAL082127CUTT | IQD Crystal | IQXC-42 | 27.12 MHz | ±10ppm | 8pF |
| LFXTAL082128CUTT | IQD Crystal | IQXC-42 | 30 MHz | ±10ppm | 8pF |
| LFXTAL082126REEL | IQD Crystal | IQXC-42 | 26 MHz | ±10ppm | 8pF |
| LFXTAL082123REEL | IQD Crystal | IQXC-42 | 24 MHz | ±10ppm | 8pF |
| LFXTAL082468CUTT | IQD Crystal | IQXC-42 | 38.4 MHz | ±10ppm | 10pF |
| LFXTAL082131REEL | IQD Crystal | IQXC-42 | 38.4 MHz | ±10ppm | 8pF |
| LFXTAL082125CUTT | IQD Crystal | IQXC-42 | 25 MHz | ±10ppm | 8pF |
| LFXTAL082130REEL | IQD Crystal | IQXC-42 | 37.4 MHz | ±10ppm | 8pF |
