頻率：20MHz
尺寸：12.5x4.5mm
CSM4Z-A2B3C3-40-20.0D18,CSM4,20MHz,Cardinal貼片晶振，Cardinal晶振，卡迪納爾晶振，美國進口晶振，型號：CSM4系列，編碼為：CSM4Z-A2B3C3-40-20.0D18，頻率：20MHz，頻率穩定性：±30ppm，工作溫度范圍：-40℃至+85℃，負載電容：18pF，是一款小體積晶振尺寸：12.5x4.5mm金屬包裝，兩腳貼片晶振，石英晶振，石英晶體諧振器，無源晶振，無鉛環保晶振，SMD晶體，諧振器，是一款橢圓形金屬殼封裝晶振，低輪廓表面安裝晶體。被廣泛用于：通訊設備晶振，無線網絡晶振，藍牙模塊晶振，無線局域網晶振，MPU，微控制器，機頂盒等應用.

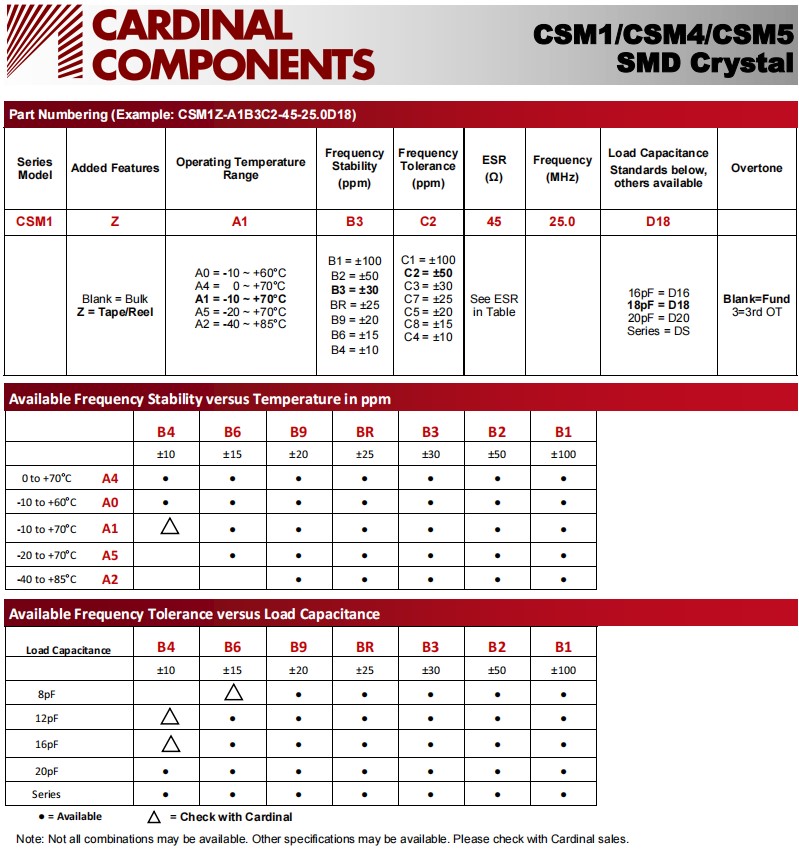

CSM4Z-A2B3C3-40-20.0D18,CSM4,20MHz,Cardinal貼片晶振，產品特點：
•薄型表面貼裝水晶
•封裝是自動表面安裝組件和回流焊實踐的理想選擇
•CSM1-4.6毫米；CSM4-3.5毫米；CSM5-3.0mm高
•AT切割水晶，貼片晶振
•頻率范圍：3.579545MHz至80MHz

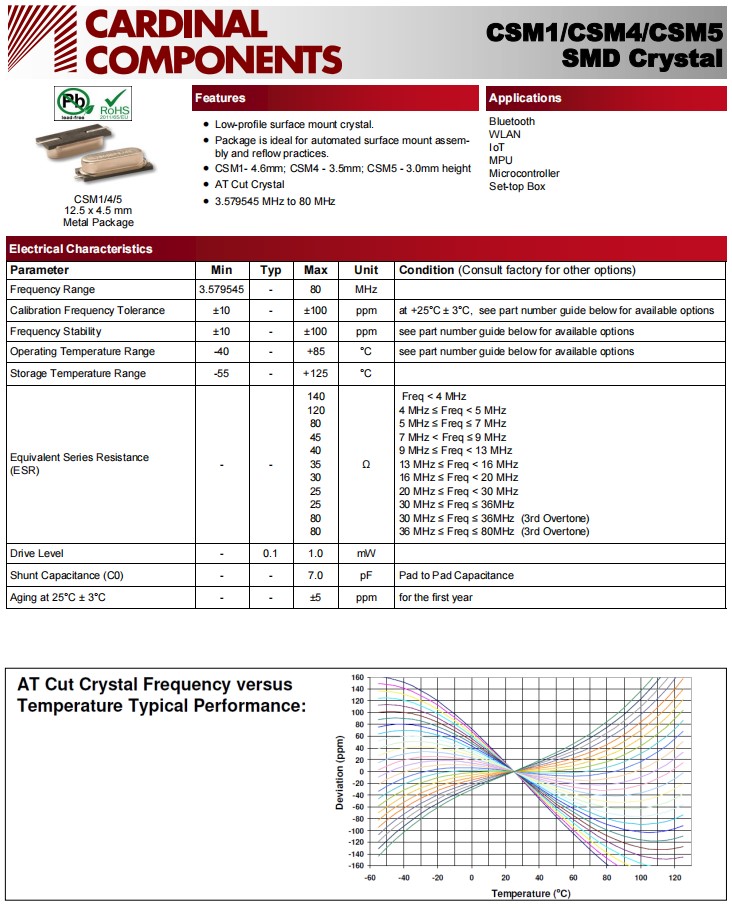

CSM4Z-A2B3C3-40-20.0D18,CSM4,20MHz,Cardinal貼片晶振,參數表
Parameter
Min
Typ
Max
Unit
Condition (Consult factory for other options)
Frequency Range
20
MHz
Calibration Frequency Tolerance
±10
-
±100
ppm
at +25°C ± 3°C, see part number guide below for available options
Frequency Stability
±10
-
±100
ppm
see part number guide below for available options
Operating Temperature Range
-40
-
+85
°C
see part number guide below for available options
Storage Temperature Range
-55
-
+125
°C
Equivalent Series Resistance
(ESR)
-
-
140
120
80
45
40
35
30
25
25
80
80
Ω
Freq < 4 MHz
4 MHz ≤ Freq < 5 MHz
5 MHz ≤ Freq ≤ 7 MHz
7 MHz < Freq ≤ 9 MHz
9 MHz ≤ Freq < 13 MHz
13 MHz ≤ Freq < 16 MHz
16 MHz ≤ Freq < 20 MHz
20 MHz ≤ Freq < 30 MHz
30 MHz ≤ Freq ≤ 36MHz
30 MHz ≤ Freq ≤ 36MHz (3rd Overtone)
36 MHz ≤ Freq ≤ 80MHz (3rd Overtone)
Drive Level
-
0.1
1.0
mW
Shunt Capacitance (C0)
-
-
7.0
pF
Pad to Pad Capacitance
Aging at 25°C ± 3°C
-
-
±5
ppm
for the first year

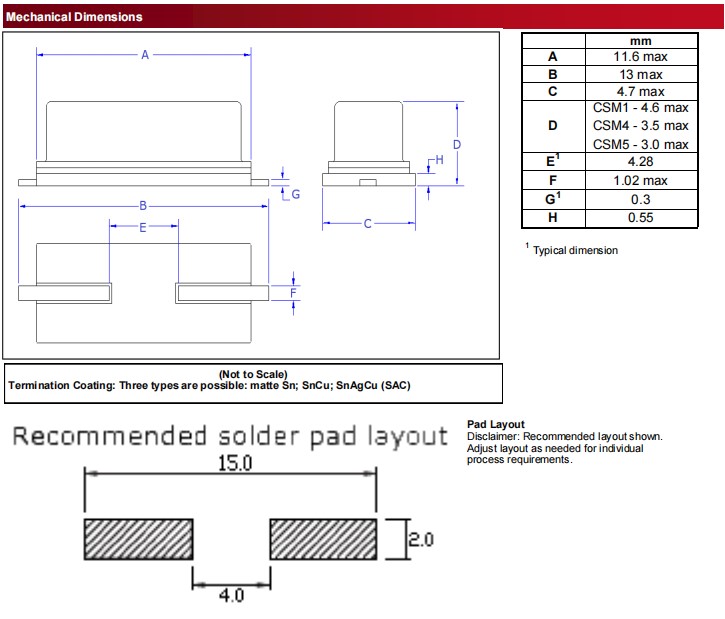

CSM4Z-A2B3C3-40-20.0D18,CSM4,20MHz,Cardinal貼片晶振,尺寸圖
| 石英晶體 | 品牌 | 型號 | 系列 | 頻率 | 頻率穩定度 |
| CSM4Z-A2B3C3-40-12.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 12MHz | ±30ppm |
| CSM4Z-A2B3C3-40-25.0D18-F | Cardinal晶振 | CSM4 | MHz Crystal | 25MHz | ±30ppm |
| CSM4Z-A2B3C3-40-10.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 10MHz | ±30ppm |
| CSM4Z-A2B3C3-40-20.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 20MHz | ±30ppm |
| CSM4Z-A2B3C3-60-6.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 6MHz | ±30ppm |
| CSM4Z-A2B3C3-60-8.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 8MHz | ±30ppm |
| CSM4Z-A2B3C3-40-29.49152D18-F | Cardinal晶振 | CSM4 | MHz Crystal | 29.49152MHz | ±30ppm |
| CSM4Z-A2B3C3-40-26.0D18-F | Cardinal晶振 | CSM4 | MHz Crystal | 26MHz | ±30ppm |
| CSM4Z-A2B3C3-180-4.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 4MHz | ±30ppm |
| CSM4Z-A2B3C3-60-9.8304D18 | Cardinal晶振 | CSM4 | MHz Crystal | 9.8304MHz | ±30ppm |
| CSM4Z-A2B3C3-40-11.0592D18 | Cardinal晶振 | CSM4 | MHz Crystal | 11.0592MHz | ±30ppm |
| CSM4Z-A2B3C3-40-16.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 16MHz | ±30ppm |
| CSM4Z-A2B3C3-60-7.3728D18 | Cardinal晶振 | CSM4 | MHz Crystal | 7.3728MHz | ±30ppm |
| CSM4Z-A2B3C3-40-14.7456D18 | Cardinal晶振 | CSM4 | MHz Crystal | 14.7456MHz | ±30ppm |
| CSM4Z-A2B3C3-40-33.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 33MHz | ±30ppm |
