當前位置：首頁 » 進口晶振 » Cardinal晶振 » 100MHz,CPPLC4L-B6-100.0TS,CPPL4,Cardinal正方型鐘振

prevnext

100MHz,CPPLC4L-B6-100.0TS,CPPL4,Cardinal正方型鐘振

頻率：100MHz

尺寸：13.2x13.2x5.6mm

100MHz,CPPLC4L-B6-100.0TS,CPPL4,Cardinal正方型鐘振，美國進口晶振，Cardinal卡迪納爾晶振，型號：CPPL4系列，編碼為CPPLC4L-B6-100.0TS，電壓：3.3V，頻率為：100MHz，工作溫度范圍：0℃至+70℃，頻率穩定性：±100ppm，CMOS輸出晶振，尺寸為：13.2x13.2x5.6mm金屬DIP封裝，有源晶振，石英晶振，石英晶體振蕩器，時鐘振蕩器。應用程序：驅動A/D，D/As，F(xiàn)PGAs，數字視頻，以太網，GbE，醫療設備，存儲區域網絡，COTS，寬帶接入，SONET/SDH/DWDM，測試和測量。

訂購熱線：0755-29952551

LH-1

CTS-1

100MHz,CPPLC4L-B6-100.0TS,CPPL4,Cardinal正方型鐘振，產品特點：

•CMOS輸出（將與TTL設備接口）

•啟用/禁用功能（可選待機功能）

•3.3V或5.0V標稱電源電壓振蕩器

•半DIP封裝，工廠編程

LH-2

CTS-2

100MHz,CPPLC4L-B6-100.0TS,CPPL4,Cardinal正方型鐘振,參數表

Electrical Characteristics CPPL4參數說明
Parameter			Min	Typ	Max	Unit	Condition
Frequency Range				100		MHz	(3.3V : 1-100MHz)
Frequency Stability	2		±25	-	±100	ppm	For all supply voltages, load changes, aging for 1 year at 25°C ± 2°C, shock, vibration and temperatures.
			0	-	70
Operating Temperature Range options		2	-20	-	70	°C
			-40	-	85
Supply Voltage 1, 2 VDD			2.97	-	5.5	V	See Part Number options on page 2
Supply Current IDD (No Load)			-	-	45	mA	VDD = 5.0V
Supply Current IDD (No Load)			-	-	25	mA	VDD = 3.3V
							Cload = 50pF max, VDD = 4.5~5.5V, ≤ 66MHz
Output Type			CMOS				Cload = 25pF max, VDD = 4.5~5.5V, > 66MHz
							Cload = 30pF max, VDD = 2.97~3.63V, ≤ 40MHz
							Cload = 15pF max, VDD = 2.97~3.63V, > 40MHz
			TTL				Cload = 50pF max; VDD = 4.5~5.5V, ≤ 40MHz
Duty Cycle			-	-	-	%	See Page 2
Output VOH (TTL Level)			2.4	-	-	V	VDD = 4.5~5.5V
(CMOS Level)			VDD - 0.4			V	All voltages
Output VOL			-	-	0.4	V	See Load Circuit and waveform page
Output TRISE and TFALL			-	-	-	ns	See page 2
Startup Time			-	-	2	ms	Time for output to reach specified frequency
VDISABLE			-	-	0.8 0.2VDD		VDD = 4.5~5.5V
						V	VDD = 2.97~3.63V
							VDD = 4.5~5.5V
VENABLE			2.0 0.7VDD	-			VDD = 2.97~3.63V
Enable Time			-	-	2	ms
Disable Time - Pin 1 low to Output Hi-Z				T/2	T+10	ns	T = Frequency Period
Disable Time - Pin 1 low to Output Hi-Z			-	T/2	T+10	ns	T = Frequency Period
Disable Current			-	-	-	mA	Enable/Disable: Pad 1 low, output disabled; See above Supply Cur- rent
Disable Current			-	0.4	-	mA	Standby option: Pad 1 low, output disabled, oscillator shutdown
RMS Period Jitter			-	8	11	ps
Period Jitter, Pk-Pk				65	99	ps	>1,000,000 samples
				65	80		≤ 33MHz
							> 33MHz
Storage Temperature Range			-55	-	125	°C

LH-3

ECS-1

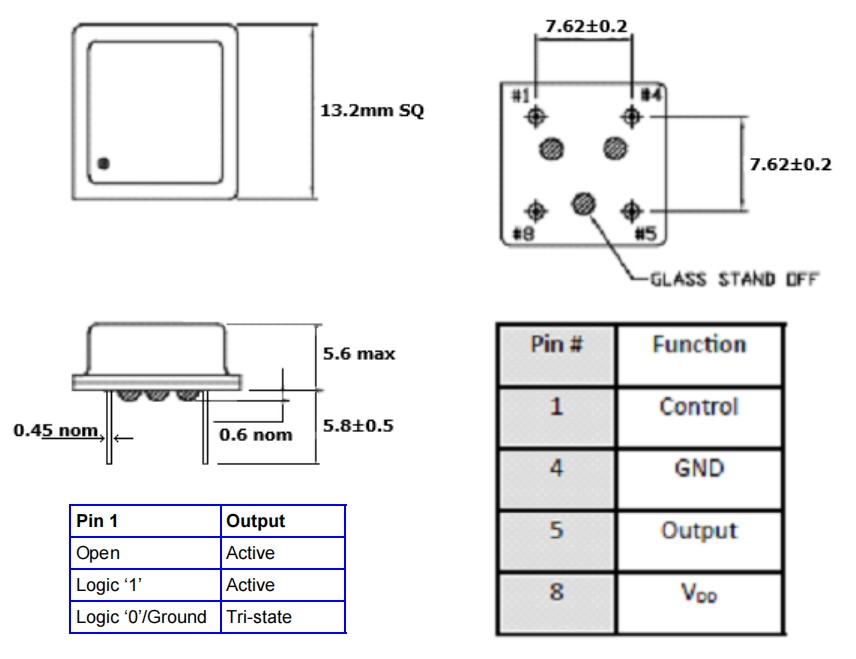

100MHz,CPPLC4L-B6-100.0TS,CPPL4,Cardinal正方型鐘振,尺寸圖

進口晶振	品牌	系列	頻率	Description描述
CPPLC5-A7BR-19.6608PD	Cardinal晶振	FIPO™ CPPL	19.6608MHz	OSC XO 19.6608MHZ CMOS SMD
CPPLC5-A7BR-25.6TS	Cardinal晶振	FIPO™ CPPL	25.6MHz	OSC XO 25.60MHZ CMOS SMD
CPPLC5L-A5B6-66.666TS	Cardinal晶振	FIPO™ CPPL	66.666MHz	OSC XO 66.666MHZ CMOS SMD
CPPLC5L-A5BP-125.0TS	Cardinal晶振	FIPO™ CPPL	125MHz	OSC XO 125.000MHZ CMOS SMD
CPPLC5L-A7BP-28.9767TS	Cardinal晶振	FIPO™ CPPL	28.9767MHz	OSC XO 28.9767MHZ CMOS SMD
CPPLC5L-A7BR-100.0TS	Cardinal晶振	FIPO™ CPPL	100MHz	OSC XO 100.000MHZ CMOS SMD
CPPLC5L-A7BR-27.0TS	Cardinal晶振	FIPO™ CPPL	27MHz	OSC XO 27.000MHZ CMOS SMD
CPPLC5L-A7BR-34.4064TS	Cardinal晶振	FIPO™ CPPL	34.4064MHz	OSC XO 34.4064MHZ CMOS SMD
CPPLC5LT-A5B6-120.0TS	Cardinal晶振	FIPO™ CPPL	120MHz	OSC XO 120.000MHZ CMOS SMD
CPPLC5LZ-A7BP-20.0TS	Cardinal晶振	FIPO™ CPPL	20MHz	OSC XO 20.000MHZ CMOS SMD
CPPLC5LZ-A7BR-16.0TS	Cardinal晶振	FIPO™ CPPL	16MHz	OSC XO 16.000MHZ CMOS SMD
CPPLC5-A7BD-27.0TS	Cardinal晶振	FIPO™ CPPL	27MHz	OSC XO 27.000MHZ CMOS SMD
CPPLC1-B6-24.0TS	Cardinal晶振	FIPO™ CPPL	24MHz	OSC XO 24.000MHZ CMOS PC PIN
CPPLC1-BP-155.52PD	Cardinal晶振	FIPO™ CPPL	155.52MHz	OSC XO 155.52MHZ CMOS PC PIN
CPPLC1L-A5BR-13.56TS	Cardinal晶振	FIPO™ CPPL	13.56MHz	OSC XO 13.56MHZ CMOS PC PIN
CPPLC4-B6-16.896TS	Cardinal晶振	FIPO™ CPPL	16.896MHz	OSC XO 16.896MHZ CMOS PC PIN
CPPLC4-B6-3.6864TS	Cardinal晶振	FIPO™ CPPL	3.6864MHz	OSC XO 3.6864MHZ CMOS PC PIN
CPPLC4L-B6-100.0TS	Cardinal晶振	FIPO™ CPPL	100MHz	OSC XO 100.000MHZ CMOS PC PIN
CPPLC4L-BR-37.5TS	Cardinal晶振	FIPO™ CPPL	37.5MHz	OSC XO 37.50MHZ CMOS PC PIN
CPPLC4T-A7BR-10.6656TS	Cardinal晶振	FIPO™ CPPL	10.6656MHz	OSC XO 10.6656MHZ CMOS PC PIN
