頻率：32MHZ
尺寸：20.8x13.1x5.08mm
Cardinal振蕩器,CPPC1-LTA7BP-32.0-TS,XO振蕩器,6G應用晶振，尺寸為20.8x13.1x5.08mm,頻率為32MHZ，長方型鐘振，有源晶體振蕩器，石英晶體振蕩器，OSC振蕩器，高性能晶振，低抖動晶振，低電壓振蕩器，低耗能晶振，醫療專用晶振，數字視頻晶振，寬帶接入晶振，COTS晶振，6G基站晶振，6G模塊晶振，6G無線晶振，測試測量晶振。
OSC晶振產品主要應用范圍：驅動A/D, D/A, fpga，數字視頻，對以太網,GbE，醫療，存儲區域組網，COTS，寬帶接入，Sonet/sdh/DWDM，測試與測量等領域。Cardinal振蕩器,CPPC1-LTA7BP-32.0-TS,XO振蕩器,6G應用晶振.
Cardinal振蕩器,CPPC1-LTA7BP-32.0-TS,XO振蕩器,6G應用晶振，尺寸為20.8x13.1x5.08mm,頻率為32MHZ，長方型鐘振，有源晶體振蕩器，石英晶體振蕩器，OSC振蕩器，高性能晶振，低抖動晶振，低電壓振蕩器，低耗能晶振，醫療專用晶振，數字視頻晶振，寬帶接入晶振，COTS晶振，6G基站晶振，6G模塊晶振，6G無線晶振，測試測量晶振。
OSC晶振產品主要應用范圍：驅動A/D, D/A, fpga，數字視頻，對以太網,GbE，醫療，存儲區域組網，COTS，寬帶接入，Sonet/sdh/DWDM，測試與測量等領域。Cardinal振蕩器,CPPC1-LTA7BP-32.0-TS,XO振蕩器,6G應用晶振.

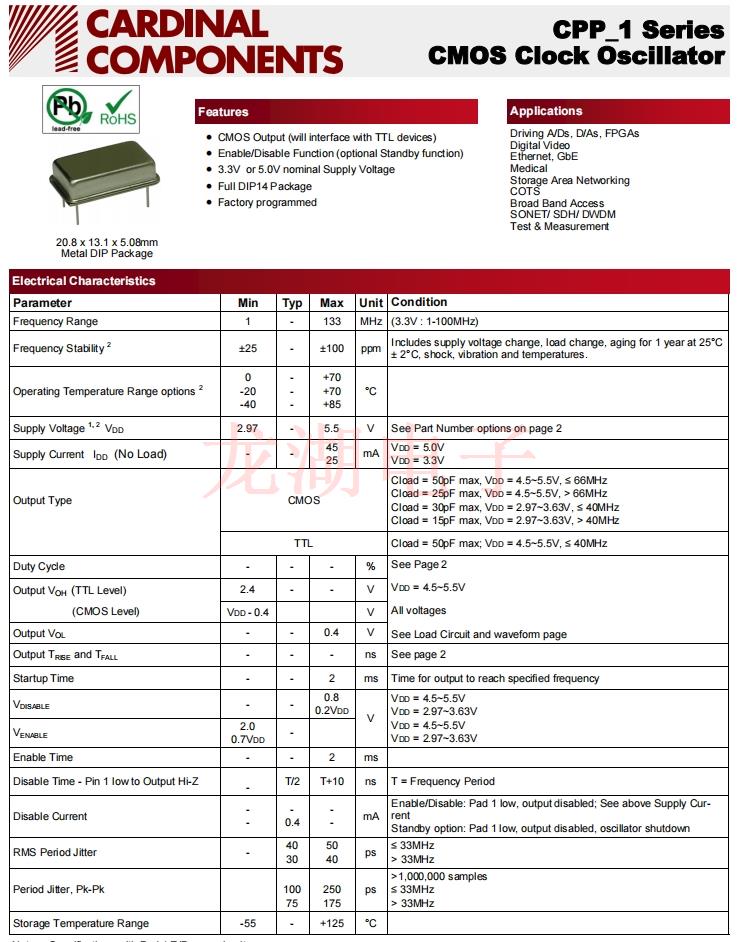

Cardinal振蕩器,CPPC1-LTA7BP-32.0-TS,XO振蕩器,6G應用晶振 參數表
| Parameter | Min | Typ | Max | Unit | Condition | |||||||||||||||||||||||||
| Frequency Range | 1 | - | 133 | MHz | (3.3V : 1-100MHz) | |||||||||||||||||||||||||
| Frequency Stability | 2 | ±25 | - | ±100 | ppm |
Includes supply voltage change, load change, aging for 1 year at 25°C ± 2°C, shock, vibration and temperatures. |
||||||||||||||||||||||||
| Operating Temperature Range options | 2 |
0 -20 -40 |
- - - |
+70 +70 +85 |
°C | |||||||||||||||||||||||||
| Supply Voltage 1, 2 VDD | 2.97 | - | 5.5 | V | See Part Number options on page 2 | |||||||||||||||||||||||||
| Supply Current IDD (No Load) | - | - |
45 25 |
mA |
VDD = 5.0V VDD = 3.3V |
|||||||||||||||||||||||||
| Output Type | CMOS |
Cload = 50pF max, VDD = 4.5~5.5V, ≤ 66MHz Cload = 25pF max, VDD = 4.5~5.5V, > 66MHz Cload = 30pF max, VDD = 2.97~3.63V, ≤ 40MHz Cload = 15pF max, VDD = 2.97~3.63V, > 40MHz |
||||||||||||||||||||||||||||
| TTL | Cload = 50pF max; VDD = 4.5~5.5V, ≤ 40MHz | |||||||||||||||||||||||||||||
| Duty Cycle | - | - | - | % |
See Page 2 VDD = 4.5~5.5V All voltages See Load Circuit and waveform page |
|||||||||||||||||||||||||
|
Output VOH (TTL Level) (CMOS Level) |
2.4 | - | - | V | ||||||||||||||||||||||||||
| VDD - 0.4 | V | |||||||||||||||||||||||||||||
| Output VOL | - | - | 0.4 | V | ||||||||||||||||||||||||||
| Output TRISE and TFALL | - | - | - | ns | See page 2 | |||||||||||||||||||||||||
| Startup Time | - | - | 2 | ms | Time for output to reach specified frequency | |||||||||||||||||||||||||
| VDISABLE | - | - |
0.8 0.2VDD |
V |
VDD = 4.5~5.5V VDD = 2.97~3.63V VDD = 4.5~5.5V VDD = 2.97~3.63V |
|||||||||||||||||||||||||
| VENABLE |
2.0 0.7VDD |
- | ||||||||||||||||||||||||||||
| Enable Time | - | - | 2 | ms | ||||||||||||||||||||||||||
| Disable Time - Pin 1 low to Output Hi-Z | - | T/2 | T+10 | ns | T = Frequency Period | |||||||||||||||||||||||||
| Disable Current |
- - |
- 0.4 |
- - |
mA |
Enable/Disable: Pad 1 low, output disabled; See above Supply Cur- rent Standby option: Pad 1 low, output disabled, oscillator shutdown |
|||||||||||||||||||||||||
| RMS Period Jitter | - |
40 30 |
50 40 |
ps |
≤ 33MHz > 33MHz |
|||||||||||||||||||||||||
| Period Jitter, Pk-Pk |
100 75 |
250 175 |
ps |
>1,000,000 samples ≤ 33MHz > 33MHz |
||||||||||||||||||||||||||
| Storage Temperature Range | --55 | - | +125 | °C | ||||||||||||||||||||||||||

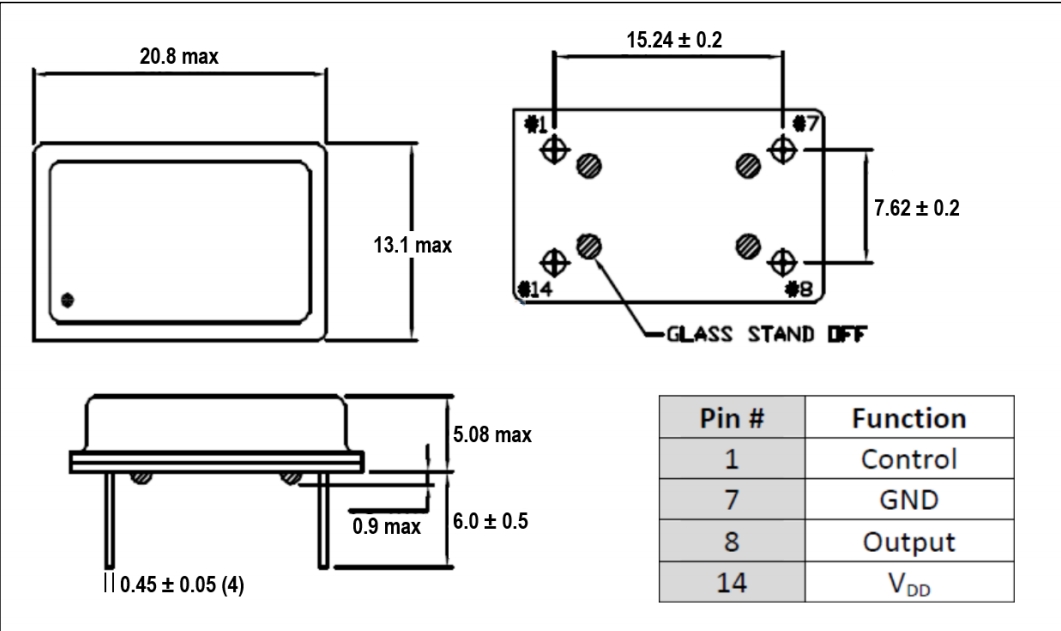

Cardinal振蕩器,CPPC1-LTA7BP-32.0-TS,XO振蕩器,6G應用晶振 尺寸圖
有源晶振產品特性：
MOS輸出(將與TTL器件接口)
開啟/關閉功能(可選待機功能)
3.3V或5.0V標稱電源電壓
完整的DIP14包
工廠編程
| Manufacturer Part Number | Manufacturer | Description | Series | Type 類型 | Frequency 頻率 |
| CPPC4-A7BR-27.11TS | Cardinal Components Inc. | OSC XO 27.11MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 27.11MHz |
| CPPC4L-A7BR-50.0TS | Cardinal Components Inc. | OSC XO 50.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 50MHz |
| CPPC4-A7BR-27.15TS | Cardinal Components Inc. | OSC XO 27.15MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 27.15MHz |
| CPPC4L-A7BR-72.0TS | Cardinal Components Inc. | OSC XO 72.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 72MHz |
| CPPC4-A7BR-27.19TS | Cardinal Components Inc. | OSC XO 27.19MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 27.19MHz |
| CPPC4L-A7BR-80.0TS | Cardinal Components Inc. | OSC XO 80.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 80MHz |
| CPPC4LT-A7B6-112.5TS | Cardinal Components Inc. | OSC XO 112.50MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 112.5MHz |
| CPPC4LT-A7BP-65.0TS | Cardinal Components Inc. | OSC XO 65.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 65MHz |
| CPPC4T-A7B6-20.0TS | Cardinal Components Inc. | OSC XO 20.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 20MHz |
| CPPC4L-A5BD-180.0TS | Cardinal Components Inc. | OSC XO 180.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 180MHz |
| CPPC4L-A7BP-80.0TS | Cardinal Components Inc. | OSC XO 80.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 80MHz |
| CPPC1-A7BR-16.0TS | Cardinal Components Inc. | OSC XO 16.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 16MHz |
| CPPC1L-A7BR-64.0TS | Cardinal Components Inc. | OSC XO 64.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 64MHz |
| CPPC1-A7BR-200.0TS | Cardinal Components Inc. | OSC XO 200.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 200MHz |
| CPPC1L-A7BR-96.0TS | Cardinal Components Inc. | OSC XO 96.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 96MHz |
| CPPC1-A7BR-24.0TS | Cardinal Components Inc. | OSC XO 24.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 24MHz |
| CPPC4-A7BR-179.3TS | Cardinal Components Inc. | OSC XO 179.30MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 179.3MHz |
| CPPC1-A7BR-80.0TS | Cardinal Components Inc. | OSC XO 80.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 80MHz |
| CPPC1L-BR-12.8PD | Cardinal Components Inc. | OSC XO 12.80MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 12.8MHz |
| CPPC4L-A7BR-125.0TS | Cardinal Components Inc. | OSC XO 125.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 125MHz |
| CPPC1-A7BR-9.8304TS | Cardinal Components Inc. | OSC XO 9.8304MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 9.8304MHz |
| CPPC1T-A7BP-40.25TS | Cardinal Components Inc. | OSC XO 40.25MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 40.25MHz |
| CPPC1-A7BR-96.0TS | Cardinal Components Inc. | OSC XO 96.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 96MHz |
| CPPC4-A7BR-26.95TS | Cardinal Components Inc. | OSC XO 26.95MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 26.95MHz |
| CPPC1-BP-50.0TS | Cardinal Components Inc. | OSC XO 50.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 50MHz |
| CPPC1-BR-5.0TS | Cardinal Components Inc. | OSC XO 5.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 5MHz |
| CPPC4L-A7BR-144.0TS | Cardinal Components Inc. | OSC XO 144.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 144MHz |
| CPPC1-BR-50.0TS | Cardinal Components Inc. | OSC XO 50.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 50MHz |
| CPPC4-A7BR-26.99TS | Cardinal Components Inc. | OSC XO 26.99MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 26.99MHz |
| CPPC1L-A3B6-100.0PD | Cardinal卡迪納爾晶振 | OSC XO 100.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 100MHz |
| CPPC1L-A3B6-100.0TS | Cardinal Components Inc. | OSC XO 100.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 100MHz |
| CPPC1L-A3B6-160.0TS | Cardinal Components Inc. | OSC XO 160.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 160MHz |
| CPPC1L-A3B6-56.0PD | Cardinal Components Inc. | OSC XO 56.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 56MHz |
| CPPC4-A5B6-12.0TS | Cardinal Components Inc. | OSC XO 12.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 12MHz |
| CPPC1L-A3B6-96.0PD | Cardinal Components Inc. | OSC XO 96.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 96MHz |
| CPPC4-A5B6-20.0TS | Cardinal Components Inc. | OSC XO 20.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 20MHz |
| CPPC4-A5BP-1.0TS | Cardinal Components Inc. | OSC XO 1.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 1MHz |
| CPPC1L-A3B6-96.0TS | Cardinal Components Inc. | OSC XO 96.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 96MHz |
| CPPC1-A5B6-5.0TS | Cardinal Components Inc. | OSC XO 5.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 5MHz |
| CPPC1L-A7BP-100.0TS | Cardinal Components Inc. | OSC XO 100.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 100MHz |
| CPPC4-A5BP-67.584TS | Cardinal Components Inc. | OSC XO 67.584MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 67.584MHz |
| CPPC1-A5BR-27.5875TS | Cardinal Components Inc. | OSC XO 27.5875MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 27.5875MHz |
| CPPC1L-A7BP-125.0TS | Cardinal Components Inc. | OSC XO 125.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 125MHz |
| CPPC1-A7BP-3.584TS | Cardinal Components Inc. | OSC XO 3.584MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 3.584MHz |
| CPPC4-A7B6-1.8432TS | Cardinal Components Inc. | OSC XO 1.8432MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 1.8432MHz |
| CPPC1L-A7BP-66.0TS | Cardinal Components Inc. | OSC XO 66.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 66MHz |
| CPPC4-A7B6-16.0TS | Cardinal Components Inc. | OSC XO 16.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 16MHz |
| CPPC1-A7BR-0.5TS | Cardinal Components Inc. | OSC XO 500.000KHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 500kHz |
| CPPC1L-A7BR-100.0TS | Cardinal Components Inc. | OSC XO 100.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 100MHz |
| CPPC4-A7B6-16.384PD | Cardinal Components Inc. | OSC XO 16.384MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 16.384MHz |
| CPPC1-A7BR-1.0TS | Cardinal Components Inc. | OSC XO 1.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 1MHz |
| CPPC1-A7BR-11.0592TS | Cardinal Components Inc. | OSC XO 11.0592MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 11.0592MHz |
| CPPC1L-A7BR-125.0TS | Cardinal Components Inc. | OSC XO 125.000MHZ CMOS PC PIN | FIPO™ CPP | XO (Standard) | 125MHz |
