LH-1

SG2520EGN差分振蕩器,EPSON晶振,X1G0058810002,6G無線晶振，尺寸2.5*2.0mm,頻率156.25MHZ，OSC振蕩器，石英差分晶振，低抖動振蕩器，差分貼片晶振，低相位差分振蕩器，SPXO晶體振蕩器，5G將使網絡通信流量呈指數級增長。5G/6G通信網絡要求高速寬頻帶，同時最大限度地減少噪音。這將實現與高頻率，低抖動用于通信設備的參考時鐘，其中將使用小尺寸光模塊。SG2016EGN/SG2520EGN是非常受歡迎的SG3225EEN系列的下一代產品，提供相同的功能具有廣泛的可用頻率范圍，低抖動和改進的頻率容限的功能組合由于在更小的封裝中使用了帶有溫度補償?shù)膬?nèi)部設計IC，因此性能更好。

有源晶振產品主要應用：網絡設備(路由器、交換機、光模塊等)，數據中心，測試和測量設備，工廠自動化，高速轉換器，如ADC和DAC等領域.SG2520EGN差分振蕩器,EPSON晶振,X1G0058810002,6G無線晶振.

LH-2

SG2520EGN差分振蕩器,EPSON晶振,X1G0058810002,6G無線晶振參數表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.3

4.0

Input voltage

Vin

-0.3

VCC+ 0.5

OE/terminal

Storage temperature range

T_stg

-55

+125

°C

[ 3 ] Operating Range

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

°C

Suffix: G

-40

+25

+105

°C

Suffix: H

ECL load condition

L_ECL

Terminated to VCC- 2.0 V

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

156.25

MHz

Frequency tolerance *2

f_tol

-25

+25

×10-6

Suffix: D

-50

+50

×10-6

Suffix: J

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 % VCC
Current consumption	ICC	-	-	60	mA
Disable current	I_dis	-	-	35	mA	OE = GND
Stand-by current	I_std	-	-	30	μA	= GND, T_use Max. = +85 °C
		-	-	60	μA	= GND, T_use Max. = +105 °C
Rise time / Fall time	tr / tf	-	-	0.35	ns	20 % - 80 % of (VOH- VOL)
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOH	VCC- 1.1	-	-	V	DC level
	VOL	-	-	VCC- 1.5	V
Differential swing	VSW	800	-	2 000	mV
Input voltage	VIH	70 % VCC	-	-	V	OE/terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	Measured from the time OE pin crosses 30 % VCC
Output disable time (ST)	tstp_st	-	-	100	ns	Measured from the time pin crosses 30 % VCC
Output enable time (OE)	tsta_oe	-	-	500	ns	Measured from the time OE pin crosses 70 % VCC
Output enable time (ST)	tsta_st	-	-	10	ms	Measured from the time pin crosses 70 % VCC
Phase jitter Offset frequency fo < 50 MHz: 12 kHz to 5 MHz fo≥50 MHz: 12 kHz to 20 MHz	tPJ	-	-	250	fs	fo < 100 MHz
		-	-	90	fs	100 MHz≤fo≤156 MHz
		-	-	70	fs	156 MHz < fo≤212 MHz
		-	-	60	fs	212 MHz < fo≤391 MHz
		-	-	50	fs	fo > 391 MHz

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Junction temperature

+140

°C

Junction to case

θjc

114

°C/W

SG2016EGN

122

°C/W

SG2520EGN

Junction to ambient

θja

243

°C/W

SG2016EGN

155

°C/W

SG2520EGN

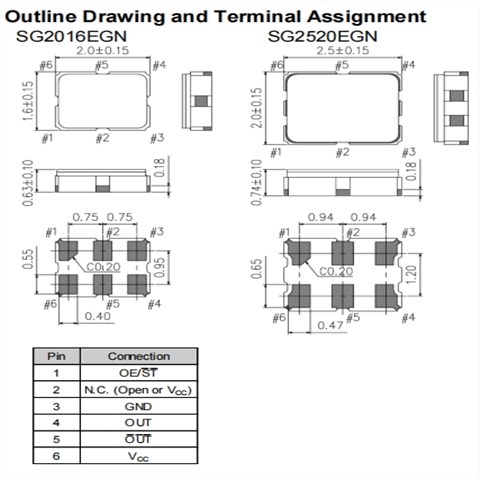

SG2520EGN差分振蕩器,EPSON晶振,X1G0058810002,6G無線晶振 尺寸圖

產品特性：

石英晶體振蕩器(SPXO)

頻率范圍: 25MHz至500MHz

輸出:LVPECL

供電電壓:2.5 V/ 3.3V類型

工作溫度:-40℃~+105℃

低相位抖動:44 fs(fo = 156.25MHz)

更多相關EPSON晶振型號

編碼	品牌	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1M0001410008	愛普生晶振	EG-4101CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410010	愛普生晶振	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410013	愛普生晶振	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410014	愛普生晶振	EG-4101CA	644.531200 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410017	愛普生晶振	EG-4101CA	156.253906 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0002010001	愛普生晶振	EG-2102CB	133.330000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010002	愛普生晶振	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010003	愛普生晶振	EG-2102CB	133.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010004	愛普生晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010005	愛普生晶振	EG-2102CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0002010006	愛普生晶振	EG-2102CB	644.531300 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010007	愛普生晶振	EG-2102CB	625.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002010008	愛普生晶振	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002010009	愛普生晶振	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010010	愛普生晶振	EG-2102CB	106.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002110001	愛普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0002110002	愛普生晶振	EG-2121CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0002110003	愛普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0002110004	愛普生晶振	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0003010002	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010003	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010004	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010006	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010007	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010008	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010009	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010010	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010011	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010012	愛普生晶振	XG-2102CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010013	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010014	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010015	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010016	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010017	愛普生晶振	XG-2102CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010019	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010020	愛普生晶振	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010021	愛普生晶振	XG-2102CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010022	愛普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010023	愛普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010025	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010026	愛普生晶振	XG-2102CA	245.760000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010027	愛普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010029	愛普生晶振	XG-2102CA	156.257812 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010030	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010031	愛普生晶振	XG-2102CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010032	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010033	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010035	愛普生晶振	XG-2102CA	199.860000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010036	愛普生晶振	XG-2102CA	200.140000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010037	愛普生晶振	XG-2102CA	216.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010039	愛普生晶振	XG-2102CA	263.157900 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010040	愛普生晶振	XG-2102CA	622.080000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010041	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010042	愛普生晶振	XG-2102CA	103.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010043	愛普生晶振	XG-2102CA	105.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010044	愛普生晶振	XG-2102CA	161.132800 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010045	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010046	愛普生晶振	XG-2102CA	644.531250 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010047	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010048	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010049	愛普生晶振	XG-2102CA	156.255000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010050	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010051	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010052	愛普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010053	愛普生晶振	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003110002	愛普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110003	愛普生晶振	XG-2121CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110004	愛普生晶振	XG-2121CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110005	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110006	愛普生晶振	XG-2121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110007	愛普生晶振	XG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110008	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110009	愛普生晶振	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110010	愛普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110011	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110012	愛普生晶振	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110013	愛普生晶振	XG-2121CA	500.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110014	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110015	愛普生晶振	XG-2121CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110016	愛普生晶振	XG-2121CA	127.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110017	愛普生晶振	XG-2121CA	136.718750 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110018	愛普生晶振	XG-2121CA	98.304000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110020	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0003110021	愛普生晶振	XG-2121CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110022	愛普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110023	愛普生晶振	XG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110024	愛普生晶振	XG-2121CA	161.132800 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110025	愛普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110026	愛普生晶振	XG-2121CA	135.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110027	愛普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110028	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110029	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110030	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110031	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110032	愛普生晶振	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110033	愛普生晶振	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003210000	愛普生晶振	XG-2103CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003210001	愛普生晶振	XG-2103CA	132.812500 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110002	愛普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110005	愛普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110006	愛普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110007	EPSON晶振	MG7050EAN	669.325580 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110008	愛普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110009	愛普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110010	愛普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110011	愛普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110012	愛普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110013	愛普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110014	愛普生晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110015	愛普生晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110016	愛普生晶振	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110017	愛普生晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110018	愛普生晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110019	愛普生晶振	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110020	愛普生晶振	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110021	愛普生晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110022	愛普生晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110023	愛普生晶振	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110024	愛普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110025	愛普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0004110026	愛普生晶振	MG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1G0058810001	愛普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0058810002	愛普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0058810003	愛普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0058810005	愛普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C
X1G0059210001	愛普生晶振	SG2520EHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
