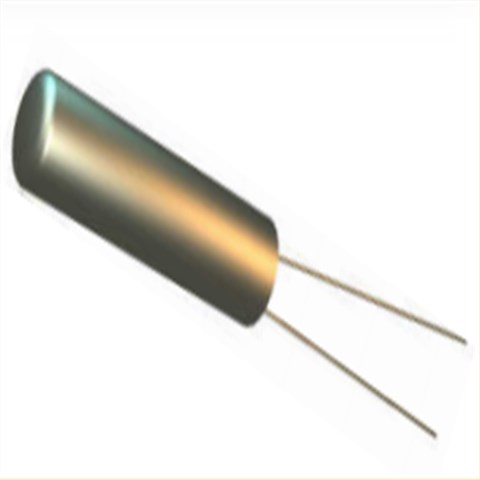

32.768KHz,WC38F-32.768KHZ,WC38,3x8mm,Mmdcomp插件晶振，美國進口晶振，MMD晶振，Mmdcomp麥迪康晶振，型號：WC38，編碼為：WC38F-32.768KHZ，精度：±20ppm，頻率為：32.768KHz，負載：12.5pF，工作溫度范圍廣：-20℃至+70℃，小體積晶振尺寸：3.0x8.0mm，音叉晶振，插件晶體，圓柱晶振，石英晶振，無源晶振，直腳插件晶振，石英晶體諧振器，無鉛環保晶振。具有小型緊湊型，高品質晶振，高質量等特點，符合RoHS標準。應用于：通訊設備晶振，無線藍牙模塊，時鐘晶振，鐘表電子晶振，電腦主板，數字電子設備，智能家居等應用。
32.768KHz,WC38F-32.768KHZ,WC38,3x8mm,Mmdcomp插件晶振，產品特點：
標準圓柱形支架
頻率：32.768KHz石英晶振
符合RoHS標準

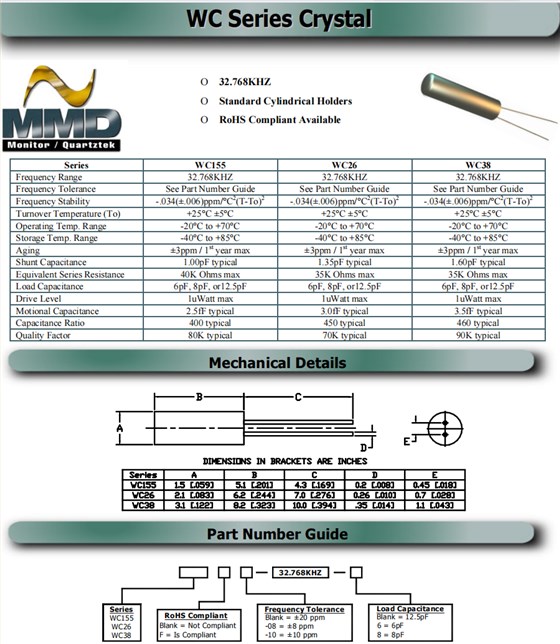

32.768KHz,WC38F-32.768KHZ,WC38,3x8mm,Mmdcomp插件晶振,參數表
Series
WC155
WC26
WC38
Frequency Range
32.768KHZ
32.768KHZ
32.768KHZ
Frequency Tolerance
See Part Number Guide
See Part Number Guide
See Part Number Guide
Frequency Stability
-.034(±.006)ppm/°C2(T-To)2
-.034(±.006)ppm/°C2(T-To)2
-.034(±.006)ppm/°C2(T-To)2
Turnover Temperature (To)
+25°C ±5°C
+25°C ±5°C
+25°C ±5°C
Operating Temp. Range
-20°C to +70°C
-20°C to +70°C
-20°C to +70°C
Storage Temp. Range
-40°C to +85°C
-40°C to +85°C
-40°C to +85°C
Aging
±3ppm / 1styear max
±3ppm / 1styear max
±3ppm / 1styear max
Shunt Capacitance
1.00pF typical
1.35pF typical
1.60pF typical
Equivalent Series Resistance
40K Ohms max
35K Ohms max
35K Ohms max
Load Capacitance
6pF, 8pF, or12.5pF
6pF, 8pF, or12.5pF
6pF, 8pF, or12.5pF
Drive Level
1uWatt max
1uWatt max
1uWatt max
Motional Capacitance
2.5fF typical
3.0fF typical
3.5fF typical
Capacitance Ratio
400 typical
450 typical
460 typical
Quality Factor
80K typical
70K typical
90K typical

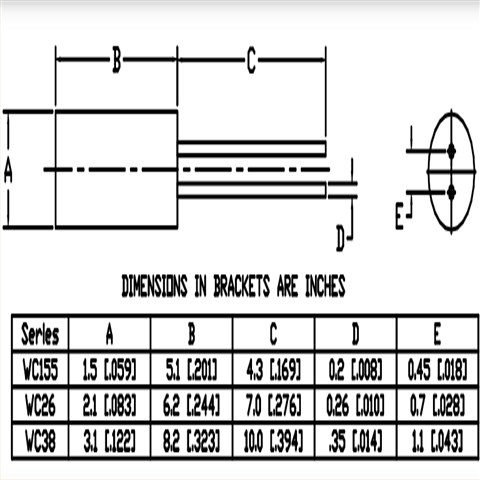

32.768KHz,WC38F-32.768KHZ,WC38,3x8mm,Mmdcomp插件晶振,尺寸圖
