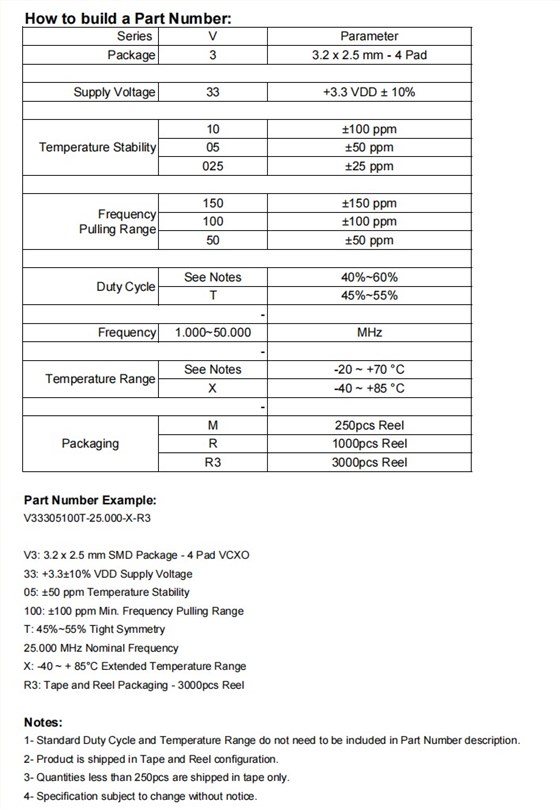

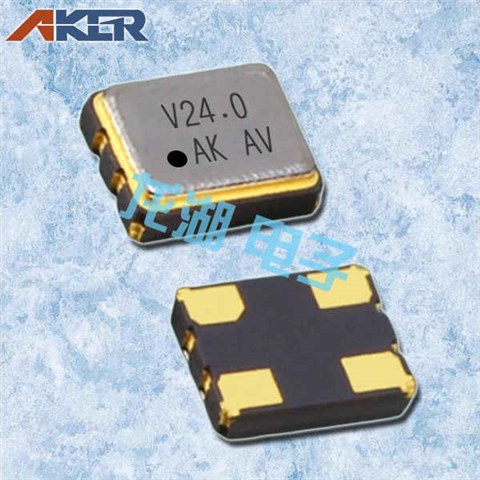

V33305100T-25.000-X-R3,3225mm,25MHz,Aker安碁VCXO晶振，臺灣Aker晶振，安碁晶振，型號：V3系列晶振，編碼為：V33305100T-25.000-X-R3貼片晶振，電壓：3.3V，±50ppm的溫度穩定性，頻率：25MHz，±100ppm最小脈沖頻率范圍，擴展溫度范圍：-40~+85°C，小體積晶振尺寸：3.2x2.5mm，四腳貼片晶振，石英晶振，有源晶振，VCXO壓控晶振，壓控晶體振蕩器，石英晶體振蕩器，3225晶振，SMD晶振。具有超小型晶振，輕薄型晶振，低抖動晶振，低功耗晶振，低電源電壓晶振，低相位噪聲晶振，低損耗晶振，低耗能等特點。應用于：微處理器晶振，通訊設備晶振，無線網絡晶振，藍牙模塊晶振，物聯網晶振，智能家居等應用。

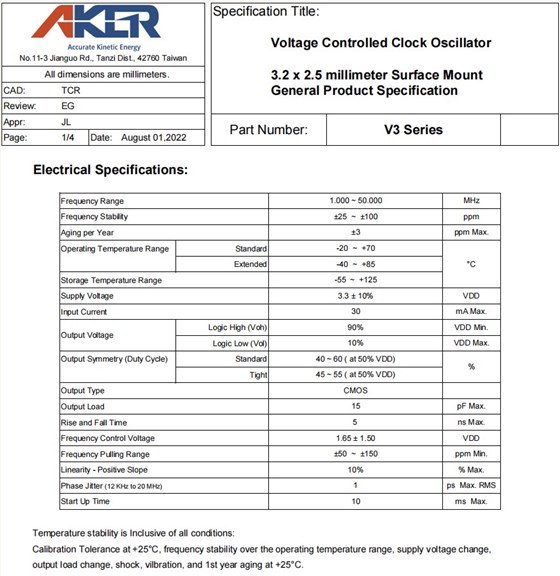

V33305100T-25.000-X-R3,3225mm,25MHz,Aker安碁VCXO晶振,參數表
Frequency Range
25
MHz
Frequency Stability
±25~±100
ppm
Aging per Year
±3
ppm Max.
Operating Temperature Range
Standard
-20~+70
°C
Extended
-40~+85
Storage Temperature Range
-55~+125
Supply Voltage
3.3 ± 10%
VDD
Input Current
30
mA Max.
Output Voltage
Logic High (Voh)
90%
VDD Min.
Logic Low (Vol)
10%
VDD Max.
Output Symmetry (Duty Cycle)
Standard
40 ~ 60 ( at 50% VDD)
%
Tight
45 ~ 55 ( at 50% VDD)
Output Type
CMOS
Output Load
15
pF Max.
Rise and Fall Time
5
ns Max.
Frequency Control Voltage
1.65 ± 1.50
VDD
Frequency Pulling Range
±50~±150
ppm Min.
Linearity - Positive Slope
10%
% Max.
Phase Jitter(12 KHz to 20 MHz)
1
psMax. RMS
Start Up Time
10
msMax.

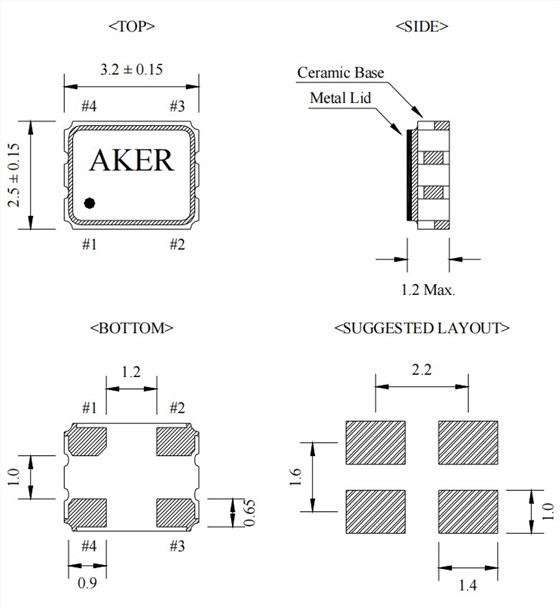

V33305100T-25.000-X-R3,3225mm,25MHz,Aker安碁VCXO晶振,尺寸圖
