三呢?zé)o源晶體\SR10130M7-26.00000-T&R\6G轉換機晶振，尺寸為2.0*1.6mm，頻率26MHZ，韓國三呢晶振，Sunny無源晶振，石英晶體，石英晶體諧振器，貼片晶體，石英貼片晶振，SMD晶振，無源諧振器，無源晶體，無源貼片晶振，水晶振動子，石英貼片晶體，SMD無源晶振，2016mm貼片晶振，低損耗貼片晶振，高性能晶振，高精度石英晶振，高品質貼片晶振，通信貼片晶振，可穿戴設備專用晶振，物聯網專用晶振，工業應用晶振，石英晶體產品具備高品質高精度的特點.比較適合用于通信應用，工業應用產品，便攜式設備，可視化智能家居，物聯網，藍牙模塊等領域。三呢?zé)o源晶體\SR10130M7-26.00000-T&R\6G轉換機晶振.
三呢?zé)o源晶體\SR10130M7-26.00000-T&R\6G轉換機晶振參數表
| Frequency Range | 26.000 MHz | |||||||||||||||
| Operating Temperature Range | -40 to +105 ℃, -40 to +125 ℃ | |||||||||||||||
| Storage Temperature Range | -55 to +125 ℃ | |||||||||||||||
| Frequency Tolerance (at 25 ℃) | ±15, ±30, ±50 ppm(STD), or specify | |||||||||||||||
|
Frequency Stability Over Operating Temperature Range |
±30 to ±100 ppm(-40 to +105 ℃) ±50 to ±100 ppm(-40 to +125 ℃) |
|||||||||||||||
| Load Capacitance (CL) | 8 pF(STD), Custom CL≥6 pF or Series Resonant | |||||||||||||||
| Drive Level | 10 ?(100 ?) Max. | |||||||||||||||
| Shunt Capacitance (C0) | 5.0 pF Max. | |||||||||||||||
| Aging (at 25 ℃) | ±5 ppm/year Max. | |||||||||||||||
| Insulation Resistance | 500 MΩ Min. at 100 VDC | |||||||||||||||

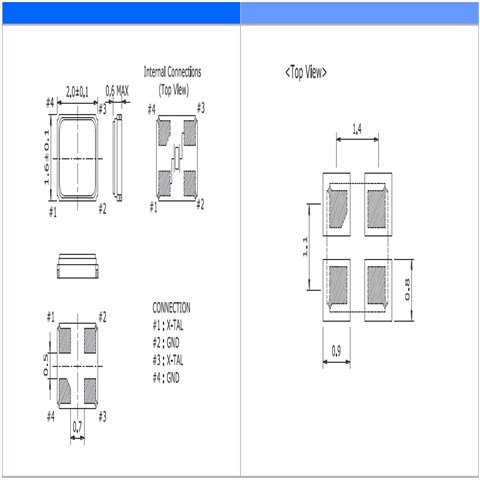

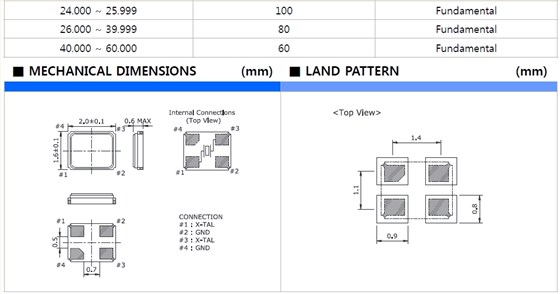

三呢?zé)o源晶體\SR10130M7-26.00000-T&R\6G轉換機晶振 尺寸圖
SMD crystal產品特性：
符合AEC-Q200
接縫密封包裝
基本水晶設計
卓越的抗振性和抗沖擊性
高頻穩定性
TS-16949認證
無鉛和RoHS合規
更多相關韓國三呢Sunny Crystal型號，請聯系我們！
