NKG諧振器|6G無線通信晶振|S1M32.0000F14E25-EXT，尺寸1.6x1.2mm，頻率32MHZ，香港NKG晶振，超小型晶振，四腳貼片晶振，石英晶體諧振器，SMD晶振，石英晶振，無源晶振，無源貼片晶振，無鉛環保晶振，高質量晶振，低損耗晶振，無線應用晶振，藍牙專用晶振，無線通信晶振，便攜式設備晶振，數碼電子晶振，USB存儲設備晶振，具備良好的可靠性能以及耐壓性能。
貼片晶振產品被廣泛用于無線應用產品之中、并深受藍牙，移動通信，便攜式設備，USB存儲設備，數碼電子應用的歡迎.NKG諧振器|6G無線通信晶振|S1M32.0000F14E25-EXT.

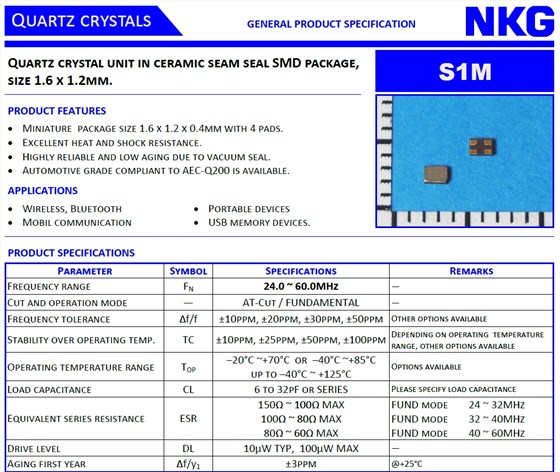

NKG諧振器|6G無線通信晶振|S1M32.0000F14E25-EXT 參數表
| Parameter | Symbol | Specifications | Remarks | |||||||||||
| Frequency range | FN | 32.0MHz | ||||||||||||
| Cut and operation mode | — | AT-Cut / FUNDAMENTAL | — | |||||||||||
| Frequency tolerance | Δf/f | ±10ppm, ±20ppm, ±30ppm, ±50ppm | Other options available | |||||||||||
| Stability over operating temp. | TC | ±10ppm, ±25ppm, ±50ppm, ±100ppm |
Depending on operatingtemperature range, other options available |
|||||||||||
| Operating temperature range | TOP |
– 20°C ~+70°Cor –40°C ~+85°C up to –40°C ~ +125°C |
Options available | |||||||||||
| Load capacitance | CL | 6 to 32pF or SERIES | Please specify load capacitance | |||||||||||
| Equivalent series resistance | ESR |
150Ω ~ 100Ω MAX 100Ω ~ 80Ω MAX 80Ω ~ 60Ω MAX |
FUND mode FUND mode FUND mode |
24 ~ 32MHz 32 ~ 40MHz 40 ~ 60MHz |
||||||||||
| Drive level | DL | 10µW TYP,100µW MAX | — | |||||||||||
| Aging first year | Δf/y1 | ±3ppm | @+25°C | |||||||||||

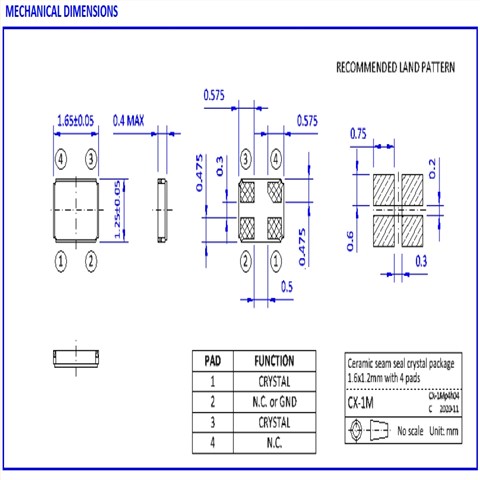

NKG諧振器|6G無線通信晶振|S1M32.0000F14E25-EXT 尺寸圖
石英晶體產品特性：

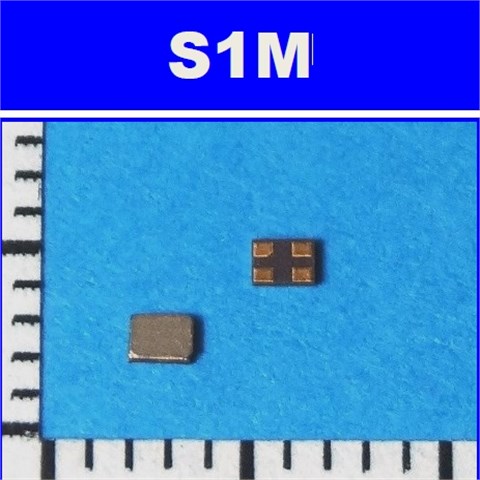

微型封裝尺寸1.6x1.2x0.4mm，帶4個焊盤。
卓越的耐熱性和抗震性。
真空密封，可靠性高，老化程度低。
可提供符合AEC-Q200標準的汽車級。
更多相關香港NKG石英晶體型號,請咨詢我們！
