彼得曼3215mm晶振,M3215A-32.768kHz-±20ppm-12.5pF,車載電子6G晶振，德國進口晶振，PETERMANN彼得曼晶振，型號：M3215A，頻率為：M3215A-32.768kHz-±20ppm-12.5pF，頻率為：32.768KHz，負載電容：12.5pF，精度±20ppm，小體積晶振尺寸：3.2x1.5x0.75mm封裝，PETERMANN Crystal，石英晶振，無源貼片晶振，無源晶振，兩腳貼片晶振，音叉晶體，SMD晶體，32.768K無源晶體，石英晶體諧振器，輕薄型晶振，小型晶振，石英晶體。具有超小型，輕薄型，高精度，高性能，高品質，高質量，耐熱及耐環境特點。3215晶振被廣泛應用于：無線設備專用晶振，時鐘應用晶振，移動通信晶振，數碼相機專用晶振，兒童游戲機晶振，通信設備晶振，時鐘發生器的CPU，無線，移動通信，數碼相機，兒童游戲機，通信設備，儀器儀表，藍牙耳機等領域。

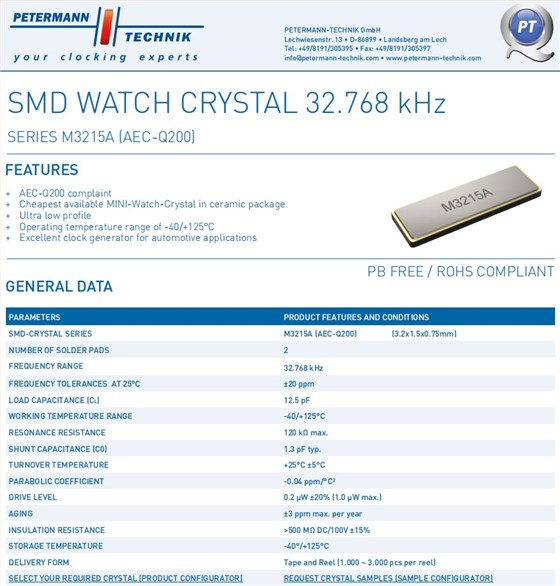

彼得曼3215mm晶振,M3215A-32.768kHz-±20ppm-12.5pF,車載電子6G晶振 參數表
| PARAMETERS | PRODUCT FEATURES AND CONDITIONS |
| SMD-CRYSTAL SERIES | M3215 (3.2*1.5*0.75mm) |
| NUMBER OF SOLDER PADS | 2 |
| FREQUENCY RANGE | 32.768 kHz |
| FREQUENCY TOLERANCES AT 25°C | ±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option) |
| LOAD CAPACITANCE (CL) |
12.5 pF (standard) 6，7 and 9.0 pF available on request |
| WORKING TEMPERATURE RANGE | -40/+85°C |
| RESONANCE RESISTANCE | 70 kΩ max. |
| SHUNT CAPACITANCE (Co) | 1.3 pF typ. |
| TURNOVER TEMPERATURE | +25°C ±5°C |
| PARABOLIC COEFFICIENT | -0.04 ppm/°C² |
| DRIVE LEVEL | 0.2 µW typical (0.5 μW max.) |
| AGING | ±3 ppm max. per year |
| INSULATION RESISTANCE | >500 MΩ DC/100V ±10% |
| STORAGE TEMPERATURE | -55°/+125°C |
| DELIVERY FORM | Reel (1.000 ~ 3.000 pcs per reel) / Other quantities: in bulks or cut tape |

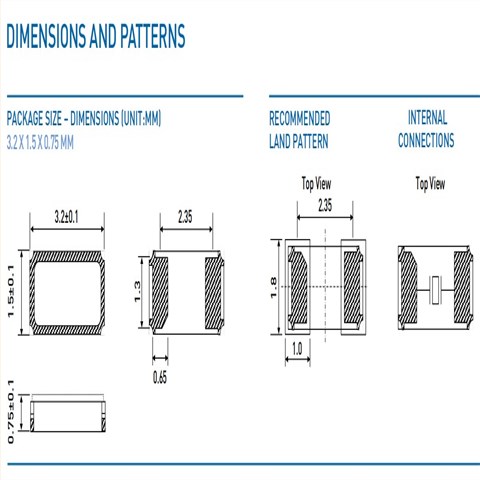

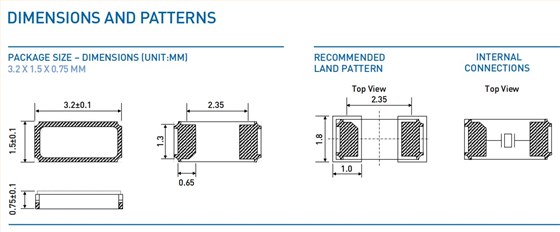

彼得曼3215mm晶振,M3215A-32.768kHz-±20ppm-12.5pF,車載電子6G晶振 尺寸圖

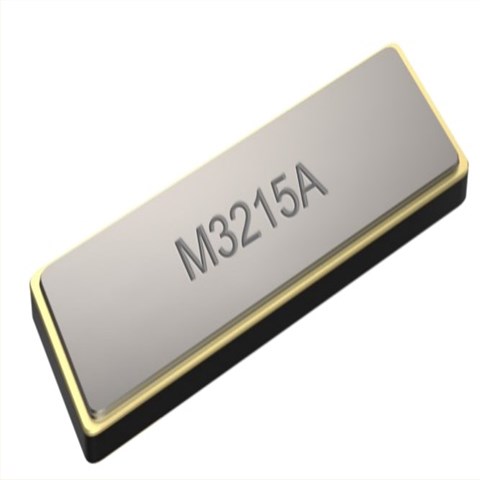

彼得曼3215mm晶振,M3215A-32.768kHz-±20ppm-12.5pF,車載電子6G晶振
產品特點：
外形尺寸：3.2x1.5x0.75mm，兩墊腳貼片晶振
符合AEC-Q200標準
最便宜的迷你手表水晶陶瓷包裝
超低輪廓
工作溫度范圍-40℃至+125°C
優秀的汽車時鐘發電機應用
