FMXMC3S2120FFC-20.000000M-CM,5032mm,FMXMC3S2系列,FMI貼片晶體,美國FMI晶振,陶瓷晶振,20MHZ輕薄型晶振,無源SMD晶體,5032mm兩腳貼片晶體,無源晶振,貼片諧振器,尺寸5.0x3.2mm,頻率20MHZ,工作溫度-40~+85°C,無鉛環保晶振,耐高溫晶振,高可靠晶振,高性能晶振,低損耗晶振,移動設備晶振,數字視頻晶振,測試設備晶振,蜂窩電話晶振,電子設備晶振.
FMXMC3S2120FFC-20.000000M-CM,5032mm,FMXMC3S2系列,FMI貼片晶體特點:
表面貼裝陶瓷組件。
Micro 5x3.2，2片/超薄SMD晶振
高可靠性,緊密穩定性.

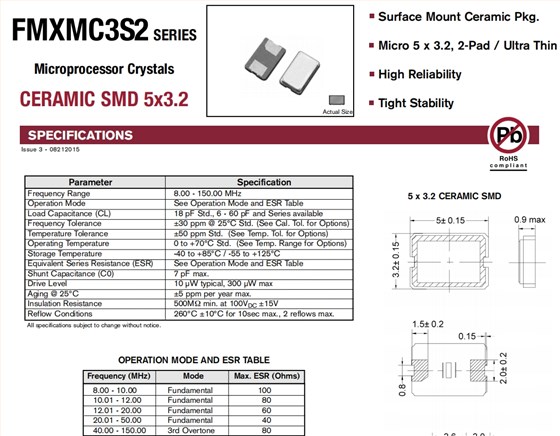

FMXMC3S2120FFC-20.000000M-CM,5032mm,FMXMC3S2系列,FMI貼片晶體 參數表
| Parameter | Specification | |||||||||||||||||||
| Frequency Range | 20.00 MHz | |||||||||||||||||||
| Operation Mode | See Operation Mode and ESR Table | |||||||||||||||||||
| Load Capacitance (CL) | 18 pF Std., 6 - 60 pF and Series available | |||||||||||||||||||
| Frequency Tolerance | ±30 ppm @ 25°C Std. (See Cal. Tol. for Options) | |||||||||||||||||||
| Temperature Tolerance | ±50 ppm Std.(See Temp. Tol. for Options) | |||||||||||||||||||
| Operating Temperature | 0 to +70°C Std.(See Temp. Range for Options) | |||||||||||||||||||
| Storage Temperature | -40 to +85°C / -55 to +125°C | |||||||||||||||||||
| Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | |||||||||||||||||||
| Shunt Capacitance (C0) | 7 pF max. | |||||||||||||||||||
| Drive Level | 10 µW typical, 300 µW max | |||||||||||||||||||
| Aging @ 25°C | ±5 ppm per year max. | |||||||||||||||||||
| Insulation Resistance | 500MΩ min. at 100VDC±15V | |||||||||||||||||||
| Reflow Conditions | 260°C ±10°C for 10sec max., 2 reflows max. | |||||||||||||||||||

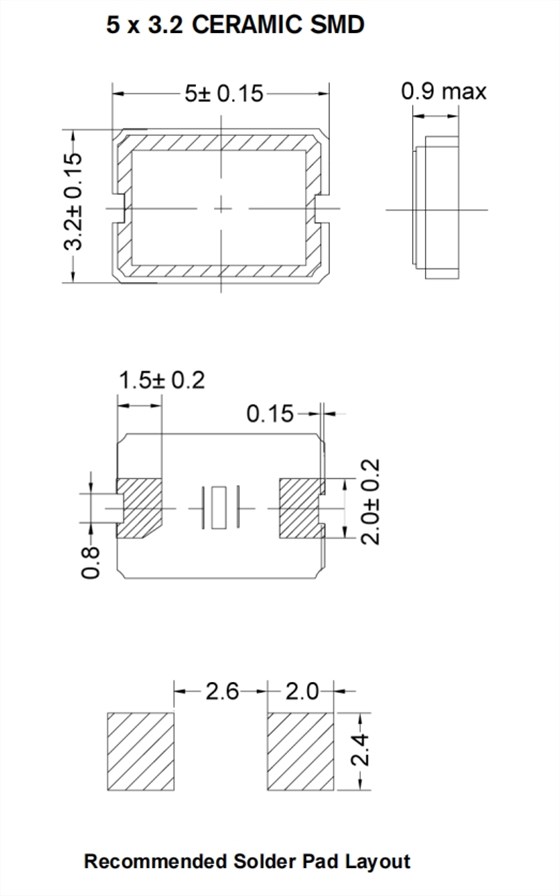

FMXMC3S2120FFC-20.000000M-CM,5032mm,FMXMC3S2系列,FMI貼片晶體 尺寸圖
