LH-1

安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M，尺寸2.0x1.6mm，頻率52MHZ，Aker無源晶振，進口貼片晶振，四腳貼片晶振，石英貼片晶振，水晶振動子，石英晶體諧振器，無源貼片晶振，無源晶振，SMD無源晶體，無源石英晶體，SMD晶振，石英晶振，2016mm貼片晶振，環保晶振，低耗能晶振，低損耗晶振，低功耗晶振，高品質晶振，微處理器晶振，娛樂設備晶振，可穿戴設備晶振，儀器設備晶振，汽車音響晶振，娛樂設備晶振，游戲設備晶振，便攜式設備晶振，數字視頻晶振，物聯網晶振，具有低功耗高品質的特點.

石英晶體產品超級適合用于微處理器，娛樂設備，可穿戴設備，儀器設備，汽車音響，娛樂設備，游戲設備，便攜式設備，數字視頻，物聯網等領域。安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M.

LH-2

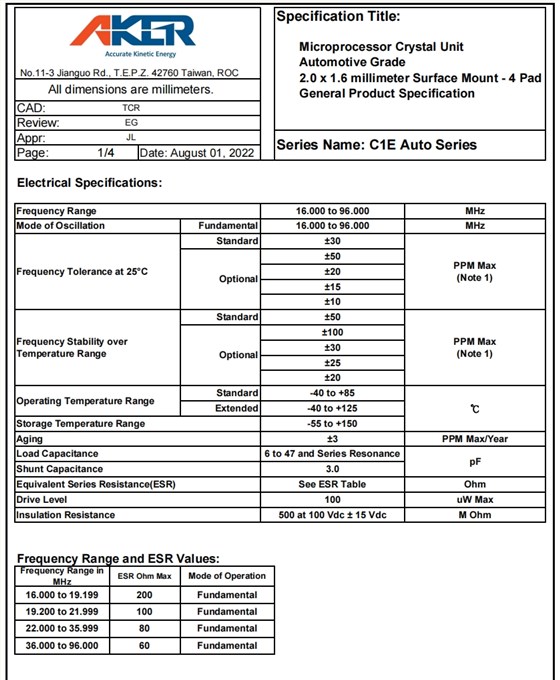

安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M參數表

Frequency Range

52.000

MHz

Mode of Oscillation

Fundamental

16.000 to 96.000

MHz

Frequency Tolerance at 25°C

Standard

±30

PPM Max
(Note 1)

Optional

±50

±20

±15

±10

Frequency Stability over
Temperature Range

Standard

±50

PPM Max
(Note 1)

Optional

±100

±30

±25

±20

Operating Temperature Range

Standard

-40 to +85

℃

Extended

-40 to +125

Storage Temperature Range

-55 to +150

Aging

±3

PPM Max/Year

Load Capacitance

6 to 47 and Series Resonance

Shunt Capacitance

3.0

Equivalent Series Resistance(ESR)

See ESR Table

Ohm

Drive Level

100

uW Max

Insulation Resistance

500 at 100 Vdc ± 15 Vdc

M Ohm

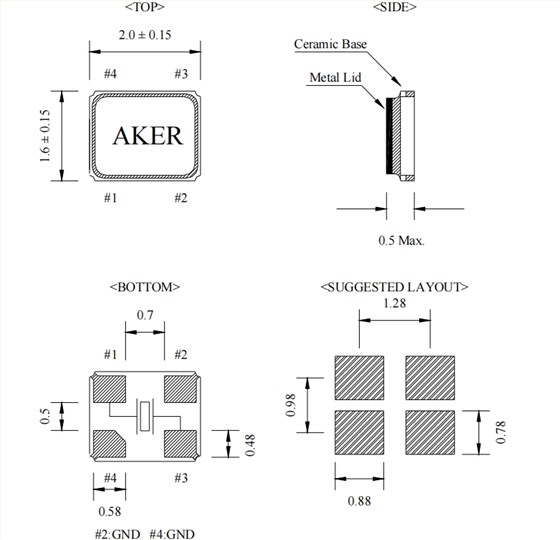

安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M 尺寸圖

安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M

產品特點:

微處理器貼片晶體單元

汽車等級

2.0x1.6毫米表面安裝-4個襯墊

通用產品規范

Mfr Part #	晶振廠家	Description	Series	Frequency	Frequency Stability	Frequency Tolerance
C3E-8.000-12-1020-M	Aker Technology Corp	CRYSTAL 8MHZ 12PF SMD	C3E	8 MHz	±10ppm	±20ppm
C2E-12.000-8-2050-X1-R	Aker Technology Corp	CRYSTAL 12MHZ 8PF SMD AEC-Q200	C2E X1	12 MHz	±50ppm	±20ppm
C3E-16.000-10-2050-X1-R	Aker Technology Corp	CRYSTAL 10MHZ 10PF SMD AEC-Q200	C3E X1	10 MHz	±50ppm	±20ppm
C3E-30.000-8-2050-X1-R	Aker Technology Corp	CRYSTAL 30MHZ 8PF SMD AEC-Q200	C3E X1	30 MHz	±50ppm	±20ppm
C7S-12.000-12-3030-X-R	Aker Technology Corp	CRYSTAL 12MHZ 12PF SMD	C7S	12 MHz	±30ppm	±30ppm
C7S-8.000-18-1020-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 18PF SMD	C7S	8 MHz	±20ppm	±10ppm
C7S-8.000-18-1030-X-R	Aker Technology Corp	CRYSTAL 8MHZ 18PF SMD	C7S	8 MHz	±30ppm	±10ppm
CA4-16.000-18-3050-R	Aker Technology Corp	CRYSTAL 16MHZ 18PF SMD	CA4	16 MHz	±50ppm	±30ppm
CA4-8.000-16-3050-R	Aker Technology Corp	CRYSTAL 8.000MHZ 16PF SMD	CA4	8 MHz	±50ppm	±30ppm
C3E-8.000-10-1020-M	Aker Technology Corp	CRYSTAL 8MHZ 10PF SMD	C3E	8 MHz	±20ppm	±10ppm
C16-96.000-8-1520-X2-R	Aker Technology Corp	CRYSTAL 96MHZ 8PF SMD	-	96 MHz	±15ppm	±20ppm
C1E-76.800-10-1012-X-M	Aker Technology Corp	CRYSTAL 76.8MHZ 10PF SMD	C1E	76.8 MHz	±10ppm	±10ppm
C1E-80.000-10-1015-X-M	Aker Technology Corp	CRYSTAL 80MHZ 10PF SMD	C1E	80 MHz	±10ppm	±10ppm
C1E-76.800-8-1012-X-M	Aker Technology Corp	CRYSTAL 76.8MHZ 8PF SMD	C1E	46.8 MHz	±10ppm	±10ppm
C1E-80.000-8-1015-X-M	Aker Technology Corp	CRYSTAL 80MHZ8PF SMD	C1E	80 MHz	±10ppm	±10ppm
C3E-24.576-12-3030-X-R	Aker Technology Corp	CRYSTAL 24.5760MHZ 12PF SMD	C3E	24.576 MHz	±30ppm	±30ppm
C3E-30.000-12-1020-X-R	Aker Technology Corp	CRYSTAL 30MHZ 12PF SMD	C3E	30 MHz	±10ppm	±20ppm
C3E-12.000-12-1015-R	Aker Technology Corp	CRYSTAL 12.0000MHZ 12PF SMD	C3E	12 MHz	±15ppm	±10ppm
C3E-25.000-8-1015-X-R	Aker Technology Corp	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz	±15ppm	±10ppm
C3E-26.000-10-1015-X-R3	Aker Technology Corp	CRYSTAL 26.0000MHZ 10PF SMD	C3E	26 MHz	±15ppm	±10ppm
C16-26.000-8-1010-R	Aker Technology Corp	CRYSTAL 26MHZ 8PF SMD	C16	26 MHz	±10ppm	±10ppm
C3E-16.000-8-2050-X1-R	Aker Technology Corp	CRYSTAL 16MHZ 8PF SMD AEC-Q200	C3E X1	16 MHz	±50ppm	±20ppm
C3E-8.000-12-1020-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 12PF SMD	C3E	8 MHz	±20ppm	±10ppm
C2E-12.000-10-2050-X1-R	Aker Technology Corp	CRYSTAL 12MHZ 10PF SMD AEC-Q200	C2E X1	12 MHz	±50ppm	±20ppm
C1E-96.000-8-1216-X2-R	Aker Technology Corp	CRYSTAL 96MHZ 8PF SMD	C1E X2	96 MHz	±16ppm	±12ppm
C3E-12.000-12-3030-X-R	Aker Technology Corp	CRYSTAL 12.0000MHZ 12PF SMD	C3E	12 MHz	±30ppm	±30ppm
C3E-27.120-12-1010-R	Aker Technology Corp	CRYSTAL 27.1200MHZ 12PF SMD	C3E	27.12 MHz	±10ppm	±10ppm
C3E-24.576-12-1010-R	Aker Technology Corp	CRYSTAL 24.5760MHZ 12PF SMD	C3E	24.576 MHz	±10ppm	±10ppm
C3E-16.000-12-1015-R	Aker Technology Corp	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz	±15ppm	±10ppm
C3E-13.560-12-1530-X-R	Aker Technology Corp	CRYSTAL 13.5600MHZ 12PF SMD	C3E	13.56 MHz	±30ppm	±15ppm
C2E-16.000-10-1010-R	Aker Technology Corp	CRYSTAL 16.0000MHZ 10PF SMD	C2E	16 MHz	±10ppm	±10ppm
C1E-24.000-10-1015-M	Aker Technology Corp	CRYSTAL 24.0000MHZ 10PF SMD	C1E	24 MHz	±15ppm	±10ppm
C2E-25.000-10-3030-X-M	Aker Technology Corp	CRYSTAL 25.0000MHZ 10PF SMD	C2E	25 MHz	±30ppm	±30ppm
C2E-48.000-10-1020-X-R	Aker Technology Corp	CRYSTAL 48MHZ SMD FOR WIFI	C2E	48 MHz	±20ppm	±10ppm
C3E-20.000-10-3050-X1-R	Aker Technology Corp	CRYSTAL 20MHZ 10PF SMD AEC-Q200	C3E X1	20 MHz	±50ppm	±30ppm
C1E-96.000-9.9-1216-X2-R	Aker Technology Corp	CRYSTAL 96MHZ 9.9PF SMD	C1E	96 MHz	±16ppm	±12ppm
C1E-52.000-8-1012-X-M	Aker Technology Corp	CRYSTAL 52MHZ 10PF SMD	C1E	52 MHz	±10ppm	±10ppm
C1E-52.000-10-1012-X-M	Aker Technology Corp	CRYSTAL 52MHZ 8PF SMD	C1E	52 MHz	±10ppm	±10ppm
C3E-27.120-12-1020-X-R	Aker Technology Corp	CRYSTAL 27.120MHZ 12PF SMD	C3E	27.12 MHz	±10ppm	±20ppm
C3E-16.000-9-1010-R	Aker Technology Corp	CRYSTAL16MHZ 9PF SMD	C3E	16 MHz	±10ppm	±10ppm
C5S-24.000-20-3030-X-R	Aker Technology Corp	CRYSTAL 24MHZ 20PF SMD	C5S	24 MHz	±30ppm	±30ppm
C5S-12.000-16-5050-X-R	Aker Technology Corp	CRYSTAL 12MHZ 16PF SMD	C5S	12 MHz	±50ppm	±50ppm
C5S-20.000-20-3050-X-R	Aker Technology Corp	CRYSTAL 20MHZ 20PF SMD	C5S	20 MHz	±30ppm	±50ppm
C5S-12.000-16-3030-X-R	Aker Technology USA	CRYSTAL 12.0000MHZ 16PF SMD	C5S	12 MHz	±30ppm	±30ppm
C5S-8.000-12-2020-X-R	Aker Technology Corp	CRYSTAL 8MHZ 12PF SMD	C5S	8 MHz	±20ppm	±20ppm
C6S-16.000-12-5050-X-R	Aker Technology Corp	CRYSTAL 16MHZ 12PF SMD	C6S	16 MHz	±50ppm	±50ppm
C2E-20.000-10-2050-X1-R	Aker Technology Corp	CRYSTAL 20MHZ 10PF SMD AEC-Q200	C2E X1	20 MHz	±50ppm	±20ppm
C5S-8.000-18-3030-X-R	Aker Technology USA	CRYSTAL 8.0000MHZ 18PF SMD	C5S	8 MHz	±30ppm	±30ppm
C5S-8.000-16-3030-X-R	Aker Technology USA	CRYSTAL 8.0000MHZ 16PF SMD	C5S	8 MHz	±30ppm	±30ppm
C3E-16.000-8-50100-X1-R	Aker Technology Corp	CRYSTAL 16.0000MHZ 8PF SMD	C3E	16 MHz	±100ppm	±50ppm
C1E-32.000-8-1015-X-R	Aker Technology Corp	CRYSTAL 32.0000MHZ 8PF SMD	C1E	32 MHz	±15ppm	±10ppm
C3E-16.000-8-50150-A-X3-R	Aker Technology Corp	UWB CRYSTAL, 3225, 16.000MHZ, 8P	C3E Auto	16 MHz	±150ppm	±50ppm
C1E-40.000-8-1030-A-X2-R	Aker Technology Corp	UWB CRYSTAL, 2016, 40.000MHZ, 8P	C1E Auto	40 MHz	±30ppm	±10ppm
C1E-40.000-8-1550-X1-R	Aker Technology Corp	UWB CRYSTAL, 2016, 40.0000MHZ, 8	C1E	40 MHz	±50ppm	±15ppm
C1E-16.000-10-1520-X-R	Aker Technology Corp	UWB CRYSTAL, 2016, 16.000MHZ, 10	C1E	16 MHz	±20ppm	±15ppm
C3E-8.000-8-10150-A-X3-R	Aker Technology Corp	UWB CRYSTAL, 3225, 8.000MHZ, 8PF	C3E Auto	8 MHz	±150ppm	±10ppm
C1E-55.200-8-1035-A-X2-R	Aker Technology Corp	UWB CRYSTAL, 2016, 55.200MHZ, 8P	C1E Auto	55.2 MHz	±35ppm	±10ppm
C16-40.000-8-1020-A-X-R	Aker Technology Corp	UWB CRYSTAL, 1612, 40.0000MHZ, 8	C16 Auto	40 MHz	±20ppm	±10ppm
C1E-48.000-8-1020-X2-M	Aker Technology Corp	CRYSTAL 48MHZ 8PF SMD	C1E	48 MHz	±10ppm	±10ppm
C1E-48.000-10-1020-X2-M	Aker Technology Corp	CRYSTAL 48MHZ 10PF	C1E	48 MHz	±10ppm	±10ppm
C1E-40.000-8-1050-A-X1-R	Aker Technology Corp	CRYSTAL, 1612, 40.000MHZ, 8PF, S	C1E Auto	40 MHz	±50ppm	±10ppm
C3E-16.000-8-10150-A-X3-R	Aker Technology Corp	CRYSTAL, 3225, 16.000MHZ, 8PF, S	C3E Auto	16 MHz	±150ppm	±10ppm
C1E-32.000-8-1550-A-X1-R	Aker Technology Corp	CRYSTAL, 1612, 32.000MHZ, 8PF, S	C1E Auto	32 MHz	±50ppm	±15ppm
C1E-24.000-8-1050-A-X1-R	Aker Technology Corp	CRYSTAL, 1612, 24.000MHZ, 8PF, S	C1E Auto	24 MHz	±50ppm	±10ppm
C1E-25.000-12-1050-A-X1-R	Aker Technology Corp	CRYSTAL, 1612, 25.000MHZ, 12PF,	C1E Auto	25 MHz	±50ppm	±10ppm
C3E-24.000-12-1050-A-X1-R	Aker Technology Corp	CRYSTAL, 3225, 24.000MHZ, 12PF,	C3E無源晶振	24 MHz	±50ppm	±10ppm
C3E-8.000-8-1080-A-X1-R	Aker Technology Corp	CRYSTAL, 3225, 8.000MHZ, 8PF, SM	C3E Auto	8 MHz	±80ppm	±10ppm
C1E-16.000-12-20100-A-X1-R	Aker Technology Corp	CRYSTAL, 2016, 16.000MHZ, 12PF,	C1E Auto	16 MHz	±100ppm	±20ppm
C3E-16.000-12-2050-A-X1-R	Aker Technology Corp	CRYSTAL, 3225, 16.000MHZ, 12PF,	C3E Auto	16 MHz	±50ppm	±20ppm
C5S-24.000-18-20100-A-X1-R	Aker Technology Corp	CRYSTAL, 5032 ,24.000MHZ, 18PF,	C5S Auto	-	±100ppm	±20ppm
C2E-19.200-13-2030-X-R	Aker Technology USA	CRYSTAL 19.2MHz 13PF SMD	C2E	19.2 MHz	±30ppm	±20ppm
