Bomar薄型晶振,BC46CFD112.5-32.768K,3215mm,32.768K無源晶體，尺寸3.2x1.5mm，頻率32.768KHZ，歐美無源晶振，32.768KHZ音叉晶體，SMD晶振，3215系列SMD晶振，低功耗晶振，低損耗晶振，高性能晶振，BC46系列是一種超小型陶瓷smd晶體，高度為0.8毫米。非常適合最小的電路空間可能的應用包括移動通信、芯片卡、實時時鐘和無線通信。產品被稱為實時時鐘晶振，芯片卡晶振，無線通信晶振，移動設備晶振，網絡設備晶振，輕型晶振，32.768KHZ無源晶振，陶瓷晶振，無源貼片晶振，音叉晶體，超小型SMD晶振，3215mm無源晶振，具有輕薄小低損耗的特點。Bomar薄型晶振,BC46CFD112.5-32.768K,3215mm,32.768K無源晶體.

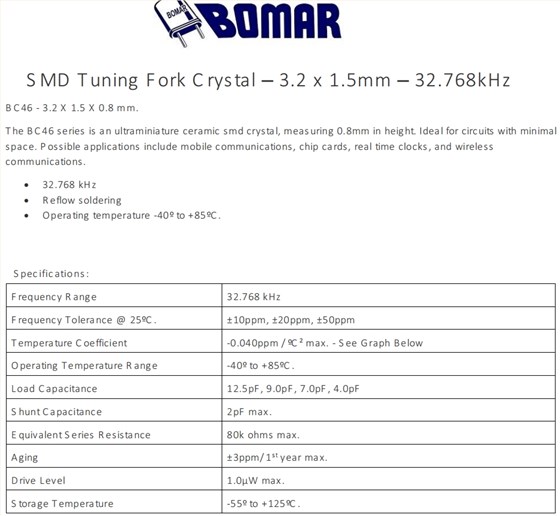

Bomar薄型晶振,BC46CFD112.5-32.768K,3215mm,32.768K無源晶體 參數表
| Frequency Range | 32.768 kHz | |||||||||
| Frequency Tolerance @ 25ºC. | ±10ppm, ±20ppm, ±50ppm | |||||||||
| Temperature Coefficient | -0.040ppm / ºC² max. - See Graph Below | |||||||||
| Operating Temperature Range | -40º to +85ºC. | |||||||||
| Load Capacitance | 12.5pF, 9.0pF, 7.0pF, 4.0pF | |||||||||
| Shunt Capacitance | 2pF max. | |||||||||
| Equivalent Series Resistance | 80k ohms max. | |||||||||
| Aging | ±3ppm/ 1styear max. | |||||||||
| Drive Level | 1.0µW max. | |||||||||
| Storage Temperature | -55º to +125ºC. | |||||||||

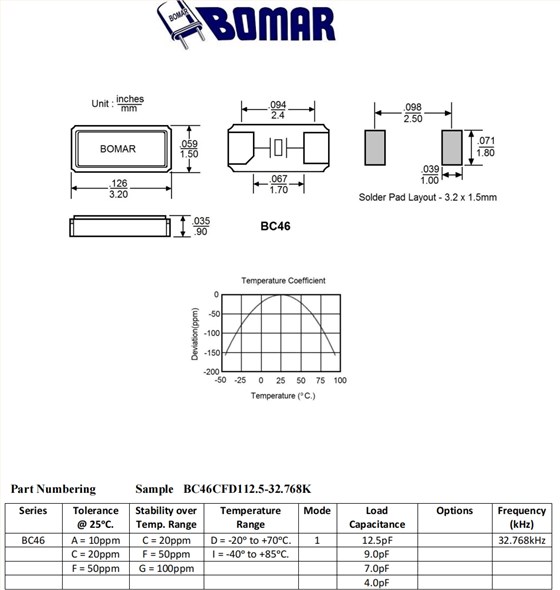

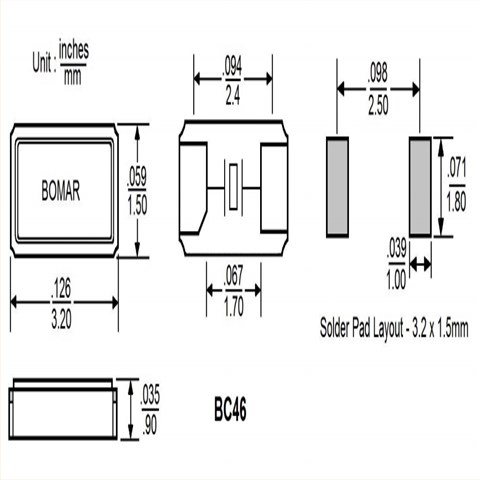

Bomar薄型晶振,BC46CFD112.5-32.768K,3215mm,32.768K無源晶體 尺寸圖
Bomar薄型晶振,BC46CFD112.5-32.768K,3215mm,32.768K無源晶體
產品特點:
尺寸3.2x1.5mm
回流焊接
工作溫度-40º至+85ºC。
