LH-1

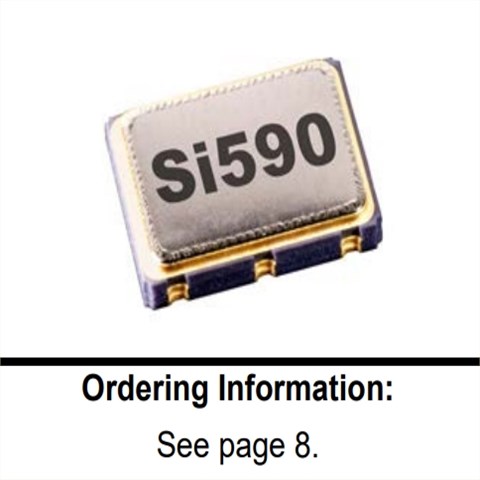

思佳訊低抖動晶振-591AD150M000DG-Si591差分晶振-6G網絡晶振，尺寸7.0×5.0mm，頻率125MHZ，輸出邏輯LVPECL，電壓3.3V，7050mm差分晶振，貼片差分振蕩器，有源差分晶體振蕩器，LVPECL輸出振蕩器，LVPECL差分晶振，OSC差分晶振，SMD差分晶振，智能家居差分晶振，物聯網專用差分晶振，娛樂設備差分晶振，人工智能差分晶振，航空電子專用差分晶振，6G電信差分晶振，測試測量差分晶振，路由器差分晶振，高質量差分晶振，高性能差分晶振，低抖動差分晶振，低功耗差分晶振，低電壓差分晶振，具有高性能低抖動低電壓的特點.

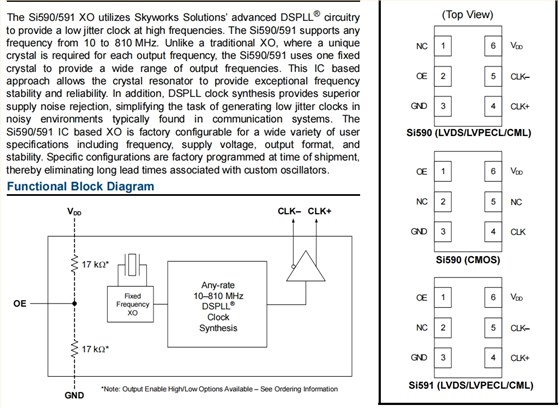

Si590/591 XO有源晶振采用Skyworks Solutions的先進DSPLL®電路以提供高頻下的低抖動時鐘。Si590/591支持任何頻率為10至810MHz。不同于傳統的XO每個輸出頻率都需要晶體，Si590/591有源石英晶振使用一個固定的晶體，以提供寬范圍的輸出頻率。此IC基于這種方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了卓越的性能電源噪聲抑制，簡化了在通常在通信系統中發現的噪聲環境。思佳訊低抖動晶振-591AD150M000DG-Si591差分晶振-6G網絡晶振.

LH-2

思佳訊低抖動晶振-591AD150M000DG-Si591差分晶振-6G網絡晶振 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Units
Supply Voltage1	VDD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75
		1.8 V option	1.71	1.8	1.89
Supply Current	IDD	Output enabled LVPECL CML LVDS CMOS	— — — —	110 100 90 80	125 110 100 90	mA
		Tristate mode	—	60	75
Output Enable (OE)2		VIH	0.75 x VDD	—	—	V
		VIL	—	—	0.5
Operating Temperature Range	TA		–40	—	85	ºC

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

Nominal Frequency1,2

LVPECL/LVDS/CML

—

810

MHz

CMOS

—

160

Initial Accuracy

Measured at +25 °C at time of
shipping

—

±1.5

—

ppm

Total Stability

Note 3, second option code “D”

±20

ppm

Note 3, second option code “C”

±30

ppm

Note 4, second option code “B”

—

±50

ppm

Note 4, second option code “A”

—

±100

ppm

Temperature Stability

second option code “D”

—

±7

ppm

second option code “C”

±20

ppm

second option code “B”

±25

ppm

second option code “A”

—

±50

ppm

Powerup Time5

tOSC

—

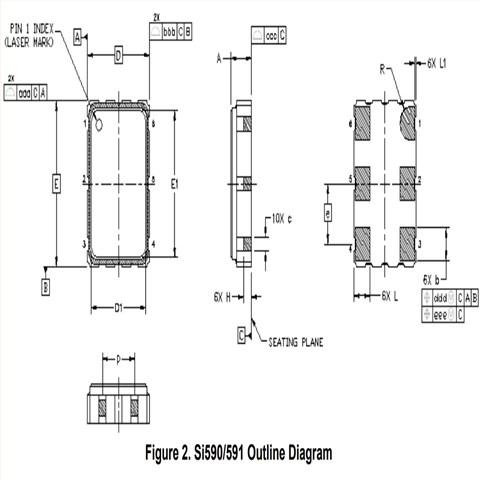

思佳訊低抖動晶振-591AD150M000DG-Si591差分晶振-6G網絡晶振尺寸圖

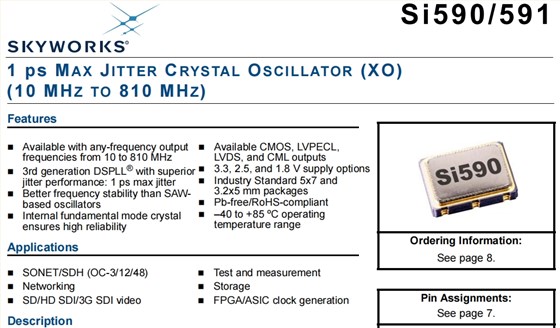

有源晶體振蕩器產品特性：

可用于任何頻率輸出頻率從10到810兆赫

具有卓越性能的第三代DSPLL®抖動性能：最大抖動1ps

比SAW振蕩器具有更好的頻率穩定性

內部基模晶體確保高可靠性

可用的CMOS、LVPECL、LVDS和CML輸出

3.3、2.5和1.8 V電源選項

行業標準5x7和3.2x5 mm包裝

無鉛/符合RoHS

–40至+85ºC運行溫度范圍

更多相關Skyworks晶振型號

Mfr Part #	Mfr	Description	Series	Frequency	Output	Voltage - Supply	Frequency Stability
591KD156M250DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CML SMD	Si591	156.25 MHz	CML	1.8V	±7ppm
591KD212M500DGR	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ CML SMD	Si591	212.5 MHz	CML	1.8V	±7ppm
591ND166M667DGR	Skyworks有源晶振	XTAL OSC XO 166.6670MHZ LVDS SMD	Si591	166.667 MHz	LVDS	3.3V	±7ppm
591DD160M000DGR	Skyworks有源晶振	XTAL OSCILLATOR	Si591	160 MHz	CML	3.3V	±7ppm
591KD000292DGR	Skyworks有源晶振	XO DIFF OE PIN 1 10-810MHZ	Si591	161.1328 MHz	CML	1.8V	±7ppm
591FD156M250DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	156.25 MHz	LVDS	2.5V	±7ppm
591FD004691DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	127.221875 MHz	LVDS	2.5V	±7ppm
591SD156M250DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	156.25 MHz	LVDS	2.5V	±7ppm
591FB000127DGR	Skyworks有源晶振	XTAL OSC XO 127.0000KHZ LVDS SMD	Si591	127 kHz	LVDS	2.5V	±25ppm
591AB250M000DG	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVPECL	Si591	250 MHz	LVPECL	3.3V	±25ppm
591AB307M200DG	Skyworks有源晶振	XTAL OSC XO 307.2000MHZ LVPECL	Si591	307.2 MHz	LVPECL	3.3V	±25ppm
591AB312M500DG	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVPECL	Si591	312.5 MHz	LVPECL	3.3V	±25ppm
591AB340M000DG	Skyworks有源晶振	XTAL OSC XO 340.0000MHZ LVPECL	Si591	340 MHz	LVPECL	3.3V	±25ppm
591AB345M000DG	Skyworks有源晶振	XTAL OSC XO 345.0000MHZ LVPECL	Si591	345 MHz	LVPECL	3.3V	±25ppm
591AB360M000DG	Skyworks有源晶振	XTAL OSC XO 360.0000MHZ LVPECL	Si591	360 MHz	LVPECL	3.3V	±25ppm
591BB250M000DG	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVDS SMD	Si591	250 MHz	LVDS	3.3V	±25ppm
591BB275M000DG	Skyworks有源晶振	XTAL OSC XO 275.0000MHZ LVDS SMD	Si591	275 MHz	LVDS	3.3V	±25ppm
591BB295M000DG	Skyworks有源晶振	XTAL OSC XO 295.0000MHZ LVDS SMD	Si591	295 MHz	LVDS	3.3V	±25ppm
591BB312M500DG	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVDS SMD	Si591	312.5 MHz	LVDS	3.3V	±25ppm
591BB360M000DG	Skyworks有源晶振	XTAL OSC XO 360.0000MHZ LVDS SMD	Si591	360 MHz	LVDS	3.3V	±25ppm
591FB266M666DG	Skyworks有源晶振	XTAL OSC XO 266.6660MHZ LVDS SMD	Si591	266.666 MHz	LVDS	2.5V	±25ppm
591FB270M000DG	Skyworks有源晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	Si591	270 MHz	LVDS	2.5V	±25ppm
591FB312M500DG	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVDS SMD	Si591	312.5 MHz	LVDS	2.5V	±25ppm
591FB320M000DG	Skyworks有源晶振	XTAL OSC XO 320.0000MHZ LVDS SMD	Si591	320 MHz	LVDS	2.5V	±25ppm
591FB400M000DG	Skyworks有源晶振	XTAL OSC XO 400.0000MHZ LVDS SMD	Si591	400 MHz	LVDS	2.5V	±25ppm
591MB400M000DG	Skyworks有源晶振	XTAL OSC XO 400.0000MHZ LVPECL	Si591	400 MHz	LVPECL	3.3V	±25ppm
591NB270M000DG	Skyworks有源晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	Si591	270 MHz	LVDS	3.3V	±25ppm
591AB250M000DGR	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVPECL	Si591	250 MHz	LVPECL	3.3V	±25ppm
591AB307M200DGR	Skyworks有源晶振	XTAL OSC XO 307.2000MHZ LVPECL	Si591	307.2 MHz	LVPECL	3.3V	±25ppm
591AB312M500DGR	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVPECL	Si591	312.5 MHz	LVPECL	3.3V	±25ppm
591AB340M000DGR	Skyworks有源晶振	XTAL OSC XO 340.0000MHZ LVPECL	Si591	340 MHz	LVPECL	3.3V	±25ppm
591AB345M000DGR	Skyworks有源晶振	XTAL OSC XO 345.0000MHZ LVPECL	Si591	345 MHz	LVPECL	3.3V	±25ppm
591AB360M000DGR	Skyworks有源晶振	XTAL OSC XO 360.0000MHZ LVPECL	Si591	360 MHz	LVPECL	3.3V	±25ppm
591BB250M000DGR	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVDS SMD	Si591	250 MHz	LVDS	3.3V	±25ppm
591BB275M000DGR	Skyworks oscillator	XTAL OSC XO 275.0000MHZ LVDS SMD	Si591	275 MHz	LVDS	3.3V	±25ppm
591BB295M000DGR	Skyworks有源晶振	XTAL OSC XO 295.0000MHZ LVDS SMD	Si591	295 MHz	LVDS	3.3V	±25ppm
591BB300M000DGR	Skyworks有源晶振	XTAL OSC XO 300.0000MHZ LVDS SMD	Si591	300 MHz	LVDS	3.3V	±25ppm
591BB312M500DGR	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVDS SMD	Si591	312.5 MHz	LVDS	3.3V	±25ppm
591BB360M000DGR	Skyworks有源晶振	XTAL OSC XO 360.0000MHZ LVDS SMD	Si591	360 MHz	LVDS	3.3V	±25ppm
591FB266M666DGR	Skyworks有源晶振	XTAL OSC XO 266.6660MHZ LVDS SMD	Si591	266.666 MHz	LVDS	2.5V	±25ppm
591FB270M000DGR	Skyworks有源晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	Si591	270 MHz	LVDS	2.5V	±25ppm
591FB312M500DGR	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVDS SMD	Si591	312.5 MHz	LVDS	2.5V	±25ppm
591FB320M000DGR	Skyworks有源晶振	XTAL OSC XO 320.0000MHZ LVDS SMD	Si591	320 MHz	LVDS	2.5V	±25ppm
591FB400M000DGR	Skyworks有源晶振	XTAL OSC XO 400.0000MHZ LVDS SMD	Si591	400 MHz	LVDS	2.5V	±25ppm
591MB400M000DGR	Skyworks有源晶振	XTAL OSC XO 400.0000MHZ LVPECL	Si591	400 MHz	LVPECL	3.3V	±25ppm
591NB270M000DGR	Skyworks有源晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	Si591	270 MHz	LVDS	3.3V	±25ppm
591NB500M000DGR	Skyworks有源晶振	XTAL OSC XO 500.0000MHZ LVDS SMD	Si591	500 MHz	LVDS	3.3V	±25ppm
591BB270M000DGR	Skyworks有源晶振	XTAL OSCILLATOR	Si591	270 MHz	LVDS	3.3V	±25ppm
591BB257M812DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	257.812 MHz	LVDS	3.3V	±25ppm
591NB000274DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	322.265625 MHz	LVDS	3.3V	±25ppm
591BB004647DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	257.8125 MHz	LVDS	3.3V	±25ppm
591KB333M330DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	333.33 MHz	CML	1.8V	±25ppm
591BB000274DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	322.265625 MHz	LVDS	3.3V	±25ppm
591FF266M667DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	266.667 MHz	LVDS	2.5V	±25ppm
591AD000391DG	Skyworks有源晶振	XTAL OSC XO 391.0000KHZ LVPECL	Si591	391 kHz	LVPECL	3.3V	±7ppm
591AD004636DG	Skyworks有源晶振	XTAL OSC XO 4.6360MHZ LVPECL SMD	Si591	4.636 MHz	LVPECL	3.3V	±7ppm
591AD148M500DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVPECL	Si591	148.5 MHz	LVPECL	3.3V	±7ppm
591AD150M000DG	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVPECL	Si591	150 MHz	LVPECL	3.3V	±7ppm
591AD152M520DG	Skyworks有源晶振	XTAL OSC XO 152.5200MHZ LVPECL	Si591	152.52 MHz	LVPECL	3.3V	±7ppm
591AD155M520DG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVPECL	Si591	155.52 MHz	LVPECL	3.3V	±7ppm
591AD156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si591	156.25 MHz	LVPECL	3.3V	±7ppm
591AD156M254DG	Skyworks有源晶振	XTAL OSC XO 156.2540MHZ LVPECL	Si591	156.254 MHz	LVPECL	3.3V	±7ppm
591AD165M000DG	Skyworks有源晶振	XTAL OSC XO 165.0000MHZ LVPECL	Si591	165 MHz	LVPECL	3.3V	±7ppm
591AD165M254DG	Skyworks有源晶振	XTAL OSC XO 165.2540MHZ LVPECL	Si591	165.254 MHz	LVPECL	3.3V	±7ppm
591BD000285DG	Skyworks有源晶振	XTAL OSC XO 170.678278MHZ LVDS	Si591	170.678278 MHz	LVDS	3.3V	±7ppm
591BD000292DG	Skyworks有源晶振	XTAL OSC XO 292.0000KHZ LVDS SMD	Si591	292 kHz	LVDS	3.3V	±7ppm
591BD148M500DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si591	148.5 MHz	LVDS	3.3V	±7ppm
591BD155M520DG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si591	155.52 MHz	LVDS	3.3V	±7ppm
591BD156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si591	156.25 MHz	LVDS	3.3V	±7ppm
591BD160M000DG	Skyworks有源晶振	XTAL OSC XO 160.0000MHZ LVDS SMD	Si591	160 MHz	LVDS	3.3V	±7ppm
591BD200M000DG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si591	200 MHz	LVDS	3.3V	±7ppm
591BD210M000DG	Skyworks有源晶振	XTAL OSC XO 210.0000MHZ LVDS SMD	Si591	210 MHz	LVDS	3.3V	±7ppm
591FD147M456DG	Skyworks有源晶振	XTAL OSC XO 147.4560MHZ LVDS SMD	Si591	147.456 MHz	LVDS	2.5V	±7ppm
591FD148M500DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si591	148.5 MHz	LVDS	2.5V	±7ppm
591FD200M000DG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si591	200 MHz	LVDS	2.5V	±7ppm
591KD136M773DG	Skyworks有源晶振	XTAL OSC XO 136.7730MHZ CML SMD	Si591	136.773 MHz	CML	1.8V	±7ppm
591KD153M000DG	Skyworks有源晶振	XTAL OSC XO 153.0000MHZ CML SMD	Si591	153 MHz	CML	1.8V	±7ppm
591KD153M600DG	Skyworks有源晶振	XTAL OSC XO 153.6000MHZ CML SMD	Si591	153.6 MHz	CML	1.8V	±7ppm
591KD155M520DG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ CML SMD	Si591	155.52 MHz	CML	1.8V	±7ppm
591KD156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CML SMD	Si591	156.25 MHz	CML	1.8V	±7ppm
591KD212M500DG	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ CML SMD	Si591	212.5 MHz	CML	1.8V	±7ppm
591ND166M667DG	Skyworks有源晶振	XTAL OSC XO 166.6670MHZ LVDS SMD	Si591	166.667 MHz	LVDS	3.3V	±7ppm
591DD160M000DG	Skyworks有源晶振	XTAL OSCILLATOR	Si591	160 MHz	CML	3.3V	±7ppm
591KD000292DG	Skyworks有源晶振	XO DIFF OE PIN 1 10-810MHZ	Si591	161.1328 MHz	CML	1.8V	±7ppm
591FD156M250DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	156.25 MHz	LVDS	2.5V	±7ppm
591SD156M250DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	156.25 MHz	LVDS	2.5V	±7ppm
591FD004691DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	127.221875 MHz	LVDS	2.5V	±7ppm
591FC296M703DGR	Skyworks有源晶振	XTAL OSCILLATOR	Si591	296.703 MHz	LVDS	2.5V	±20ppm
591FC297M000DGR	Skyworks有源晶振	XTAL OSCILLATOR	Si591	297 MHz	LVDS	2.5V	±20ppm
591BG437M500DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	437.5 MHz	LVDS	3.3V	±20ppm
591BG004679DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	322.2656 MHz	LVDS	3.3V	±20ppm
591BG333M333DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	333.333 MHz	LVDS	3.3V	±20ppm
591EG400M000DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	400 MHz	LVPECL	2.5V	±20ppm
591AG000274DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	274 MHz	LVPECL	3.3V	±20ppm
591BC312M800DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	312.8 MHz	LVDS	3.3V	±20ppm
591AG004673DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	322.289795 MHz	LVPECL	3.3V	±20ppm
591AC245M760DGR	Skyworks有源晶振	XTAL OSC XO 245.7600MHZ LVPECL	Si591	245.76 MHz	LVPECL	3.3V	±20ppm
591AC312M500DGR	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVPECL	Si591	312.5 MHz	LVPECL	3.3V	±20ppm
591AC500M000DGR	Skyworks有源晶振	XTAL OSC XO 500.0000MHZ LVPECL	Si591	500 MHz	LVPECL	3.3V	±20ppm
591BC270M000DGR	Skyworks有源晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	Si591	270 MHz	LVDS	3.3V	±20ppm
591BC312M500DGR	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVDS SMD	Si591	312.5 MHz	LVDS	3.3V	±20ppm
591BC435M000DGR	Skyworks有源晶振	XTAL OSC XO 435.0000MHZ LVDS SMD	Si591	435 MHz	LVDS	3.3V	±20ppm
591BC500M000DGR	Skyworks有源晶振	XTAL OSC XO 500.0000MHZ LVDS SMD	Si591	500 MHz	LVDS	3.3V	±20ppm
