靈活性的Aker品牌LVPECL差分晶振說明書，隨著步入高新技術的時代，新興的產品不斷推陳出新，為行業帶來了蓬勃生機的發展以外，也面臨著產品出現供不應求的狀態，為了緩解目前的市場需求，智慧的Aker公司利用自身資源，精心研制大量優質的產品，產品采用創新設計理念研制而成。Aker Technology提供了一系列領先的石英晶體、時鐘晶體振蕩器、TCXOs和VCXOs，包括一系列面向汽車行業的AECQ-200產品。

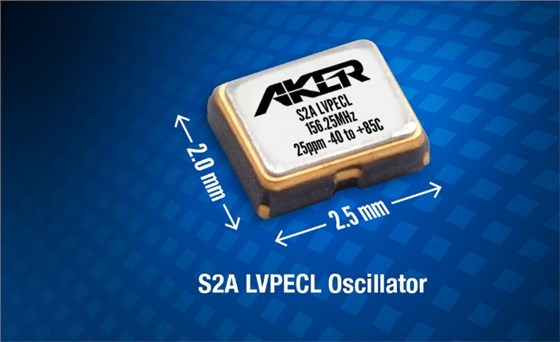

Aker Technology的持續創新為頻率控制市場帶來了更大的設計靈活性，新型S2A LVPECL振蕩器采用2.5 mm x 2.0 mm低抖動陶瓷封裝

技術亮點

• 更多行業標準包裝選項
• LVPECL技術非常適合網絡、數據中心和高速轉換器
• 低抖動，僅0.3 ps
• 快速交付樣品和生產

Aker Technology USA是一家創新的、價格有競爭力的頻率控制產品的全球制造商，它發布了一款新的表面安裝有源晶體振蕩器它采用2.5mmx2.0mm陶瓷封裝。新型S2A LVPECL(低壓正發射極耦合邏輯)振蕩器提供0.3 ps的低抖動，是各種關鍵通信設備的理想器件，包括網絡設備、數據中心和高速轉換器。

LVPECL等差分傳輸技術具有高抗擾度，受線路衰減的影響較小，可用于在更長的線路上傳輸更高的數據速率。LVPECL電路技術的大電壓擺幅有助于S2A令人印象深刻的低抖動性能。靈活性的Aker品牌LVPECL差分晶振說明書.

有源振蕩器是一種緊湊型表面貼裝器件(SMD ),尺寸為2.5mmx2.0mmx1.1mm，可快速交付樣品和生產。這對于加快產品開發至關重要，因?yàn)殡娮釉墓?yīng)鏈問題仍然存在問題。

儲備頻率包括25MHz、100MHz、125MHz、155.52MHz和156.25MHz。頻率范圍為13.50 MHz至156.25 MHz，頻率穩定性范圍為25 ppm至100 ppm，每年老化3 ppm。S2A也有幾種溫度選擇，包括-20°C到70°C；-40攝氏度至85攝氏度；和-40℃至125℃之間

Aker Technology USA, a global manufacturer of innovative, competitively priced frequency control products, has released a newsurface mount crystal oscillatorthat comes in a 2.5 mm x 2.0 mm ceramic package. The new S2A LVPECL (low voltage positive emitter coupled logic) oscillator provides a low jitter of 0.3 ps, making it an ideal component for a variety of critical communications equipment including network equipment, data centers and high-speed converters.

Because of their high noise immunity, differential transmission techniques, like LVPECL, are less influenced by line attenuation and can be used to transmit higher data rates over longer line lengths. The large voltage swing of LVPECL circuit technology contributes to the S2A’s impressively low jitter performance.

Eric Greenberg, Director of North American Sales for Aker Technology, noted, “Having access to an LVPECL oscillator that can handle high frequencies, while offering low jitter in an industry-standard package configuration enables the industry to develop advanced, high-end communications equipment that will operate reliable and efficiently. Our innovative, new S2A comes in a range of parameters that will cost-effectively fit the bill for most applications using fast protocols, like Gigabit Ethernet and Fibre Channel.”

The crystal oscillator comes as a compact surface mount device (SMD) measuring 2.5 mm x 2.0 mm x 1.1 mm, with fast delivery available for samples and production runs. This is critical to expedited product development, as supply chain issues in electronics components is still proving problematic.

Stocked frequencies include 25 MHz, 100 MHz, 125 MHz, 155.52 MHz and 156.25 MHz. Frequency range is 13.50 MHz to 156.25 MHz and frequency stability ranges from ±25 ppm to ±100 ppm, with ±3 ppm aging per year. The S2A comes in several temperature options as well, including -20°C to 70°C; -40°C to 85°C; and -40°C to 125°C.
